Appendix E: Replacing the Hard Drive

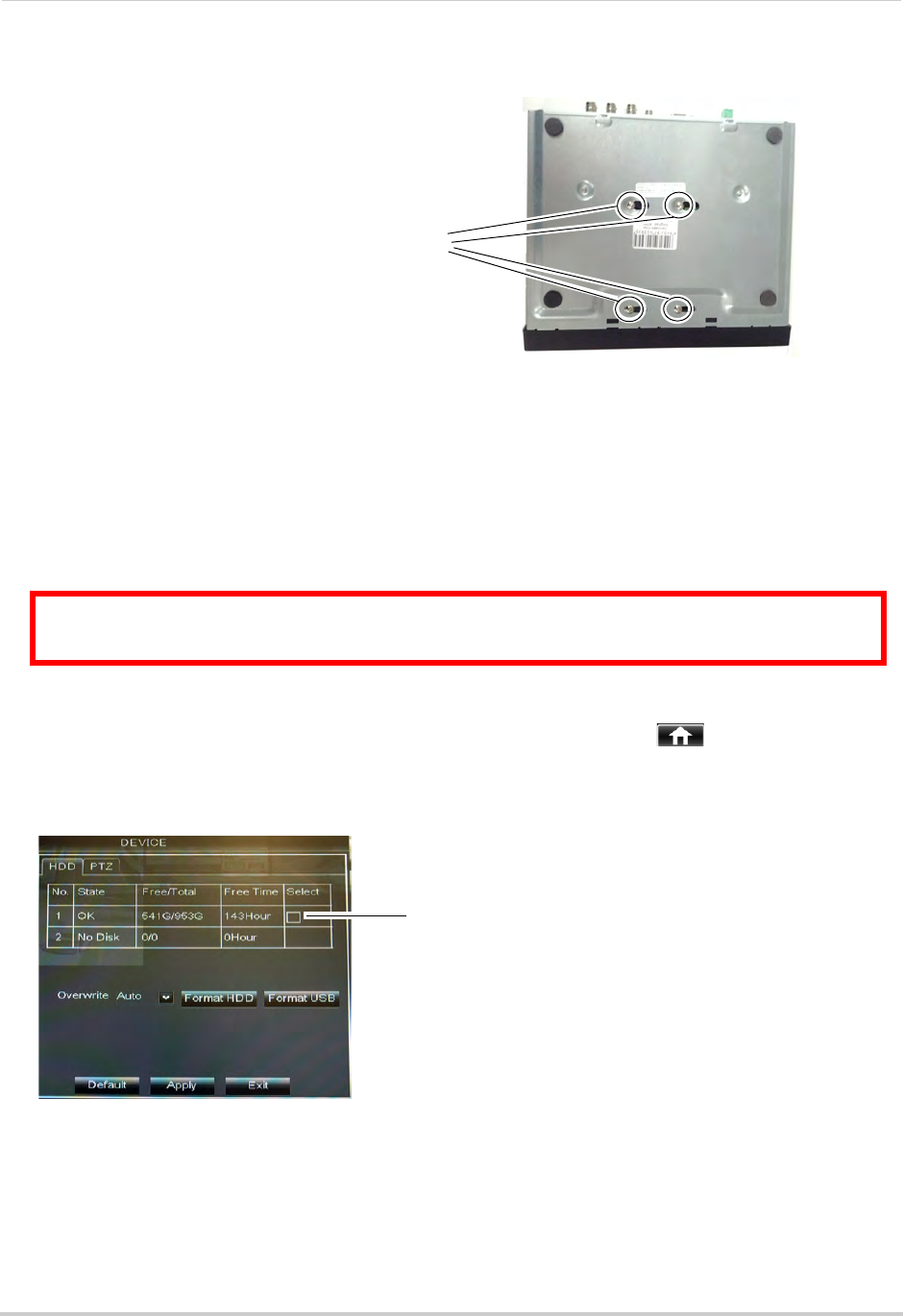

4 Carefully turn the DVR over and tighten the hard drive screws (4x).
5 Car
efully turn the DVR back over. Replace the cover, tucking the lip of the cover at the front
panel.
6 Replac
e the screws on the side and rear panels of the cover.
Formatting the Hard Drive
If you replace the pre-installed hard drive, it
must
be formatted in order to function
properly with the system.
To format the hard disk:
1 Right-click
to open the Menu Bar and click the Main Menu button ( ).
2 Click Device.
3 Click the checkbo
x under Select to choose the drive you wish to reformat.
4 Cl
ick Format HDD. Enter the system password.
5 When the warning
window appears, click OK. Wait for the system to format the hard drive.
NOTE: Y
ou will notice that the size of the HDD and the free space are not the same. The system
uses a portion of the disk space for the operating system and initialization. This is
common in all security DVRs as well as computer hard drives.
Tighten the hard drive screws
ATTENTION: Formatting the HDD erases all data on the hard disk.
This step cannot be undone.
Select checkbox
