4

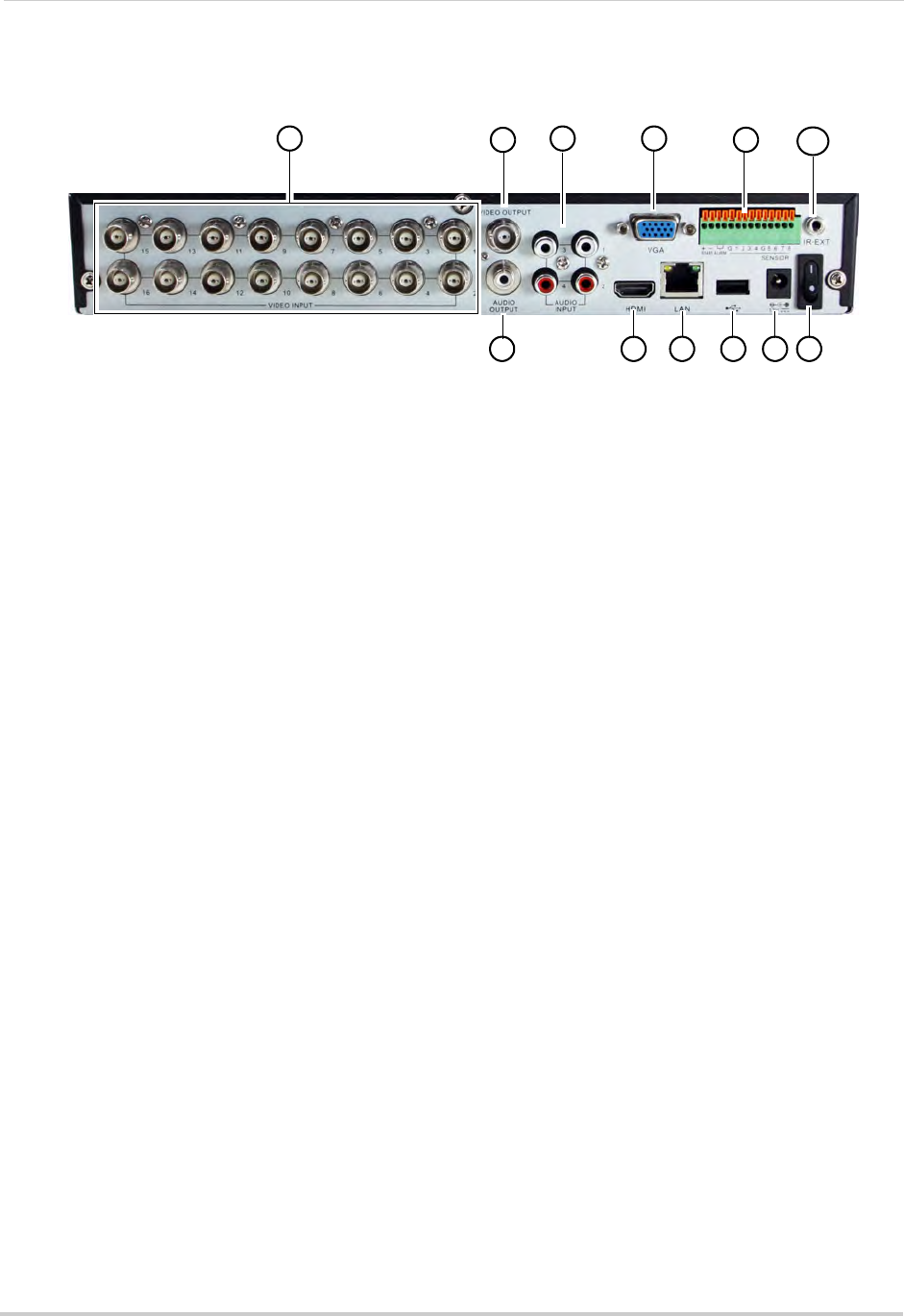

ECO Blackbox+ Series
16-Channel
1 Video Input: Connect BNC cameras.
2 Vi
deo Output: Outputs the DVR interface to a BNC connection. This allows you to see your
mouse cursor and have full control of the system on a secondary monitor. To switch the
mouse and system interface between BNC and VGA monitors, press 0 three times on the
remote control.
NOTE: Use
a BNC to RCA adapter (not included) to connect the DVR to RCA inputs (i.e. for a TV
connection).
3 Audio O
utput: Output for 1 RCA audio channel (e.g. speakers).
4 Audio I
nput: Input for 4 RCA audio-enabled cameras (not included).
5 HDMI: Connect t
o an HDMI monitor or TV (not included) to view the system interface.
6 VGA:
Connect a VGA monitor (not included) to view the system interface.
7 LAN:
Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
8 USB P
ort: Connect a USB mouse (included) or USB flash drive (not included) for data backup
or firmware updates.
9 RS48
5/Alarm Block: Connect compatible PTZ cameras (not included) or alarm sensor
devices (not included).
10 DC
12V: Connect the included AC power adapter.
11 On / Off Switc
h: Turns the DVR on or off.
12 IR EXT:
Service only; not supported.
4
6
9
2
1
12
3 875 1110
