24
Playback and Backup
Using the On-Screen Playback Controls
1 Move the mouse slightly to display the on-screen playback controls. You can also use the
playback control buttons on the remote control.
• Click the playback controls to play, pause, fast forward, rewind, and slow down playback.
• Drag the slider to adjust the volume (audio c
apable camera required, not included). Click
Mute to mute the audio.
• Click X t
o quit playback and return to the Search Menu.

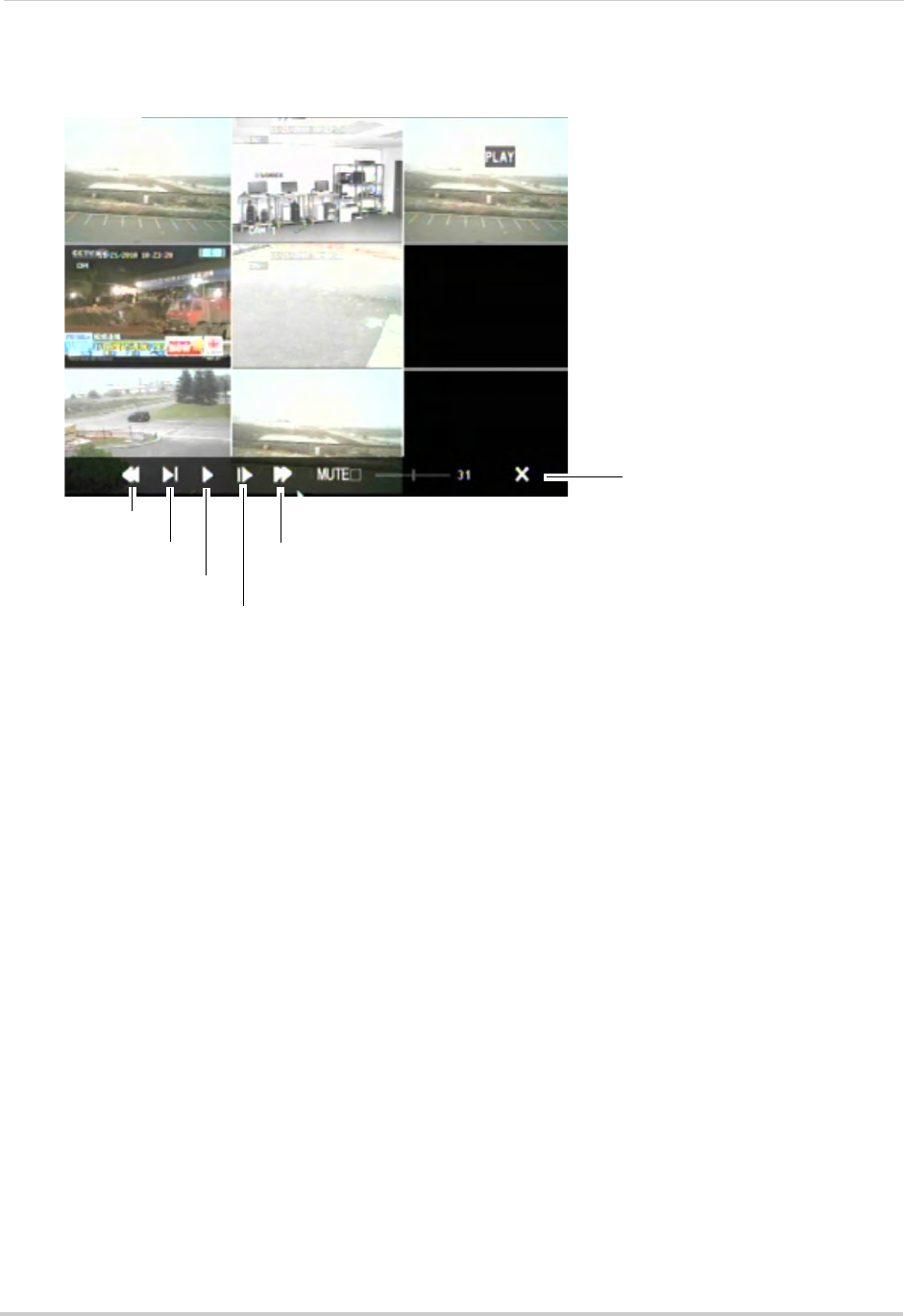

Playback controls
Reverse playback
Slow Motion
Play
Pause / Frame by Frame
Fast Forward
