28
Playback and Backup
5 A confirmation window appears, showing information about the backup file you are about to
create. Click Backup to confirm. Wait for the file to be saved.
For details on viewing backed up video, see “Lorex Player 11: Playing Backe
d up Video on
PC” on page 90 or see “Lorex Player for Mac: Viewing Backed up Video o
n Mac” on page 92.
Backing Up Video
You can back up video to a USB flash drive (not included) connected to the DVR.
To back up video:
1 Co
nnect a USB flash drive to one of the USB ports on the DVR.
2 Rig
ht-click to open the Menu Bar and click the Record Search button ( ).
3 Cl
ick the Backup tab.
4 Co
nfigure the following:
• Search
Date: Enter the desired month, date, and year
• Sear
ch Time: Enter the time range you wish to search.
• CH:
Select the channel you wish to search. To search all channels, select All.
• Ty
pe: Select the type of recording you wish to search. Choose from All, Continuous (or
Normal), or Alarm.
5 Cl
ick Search. A list of videos populate in the window.

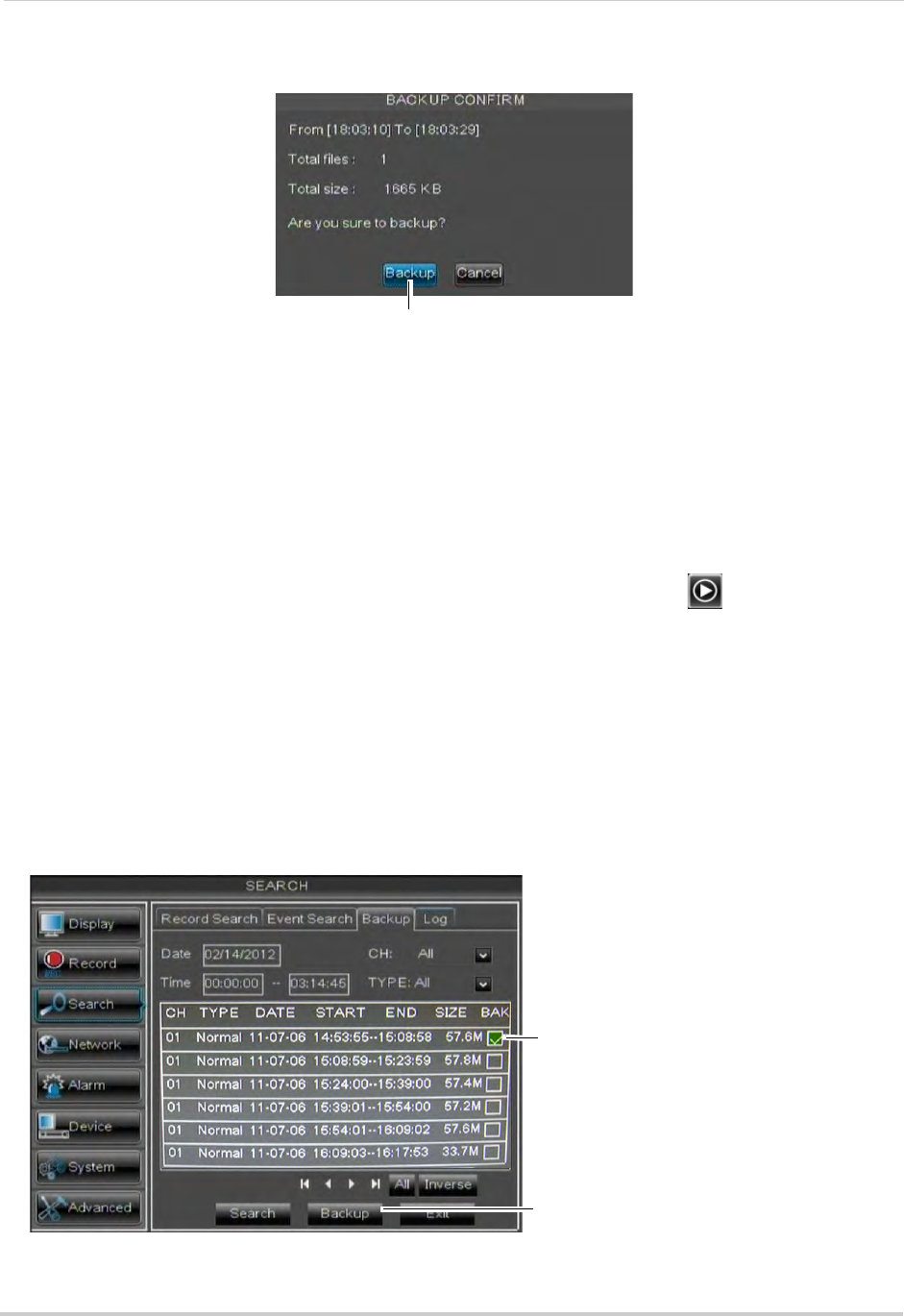

Backup
Click the BAK checkbox to select
video to back up
Click Backup
