54
Using the Main Menu
Saving Your System Configuration
to a USB Flash Drive (ECO
Blackbox+ Series Only)
The DVR allows you to save your current
system configuration to a USB flash
drive (not included). This is useful if you
want to backup your current settings.
NOTE: This
function only saves settings
created in system menus. It does not
save or backup any video.
To save your system configuration to a
USB flash
drive (not included):
1 Insert a
USB flash drive (not included) into
one of the USB ports.
2 Rig
ht-click to open the Menu Bar and click
Main Menu ( ).
3 Cl
ick Advanced and select the Maintain
tab.
4 Cl
ick Save Settings. Wait for the system to
save your settings.
Loading a System Configuration
from a USB Flash Drive (ECO
Blackbox+ Series Only)
1 Insert a USB flash drive (not included) that
contains a saved configuration to a USB
port. See above for details on how to save
your DVR configuration.
2 Right-click t
o open the Menu Bar and click
Main Menu ( ).
3 Click Adv
anced and select the Maintain
tab.
4 Click Load Settings. The D
VR will load the
saved settings from the USB flash drive
and then restart.

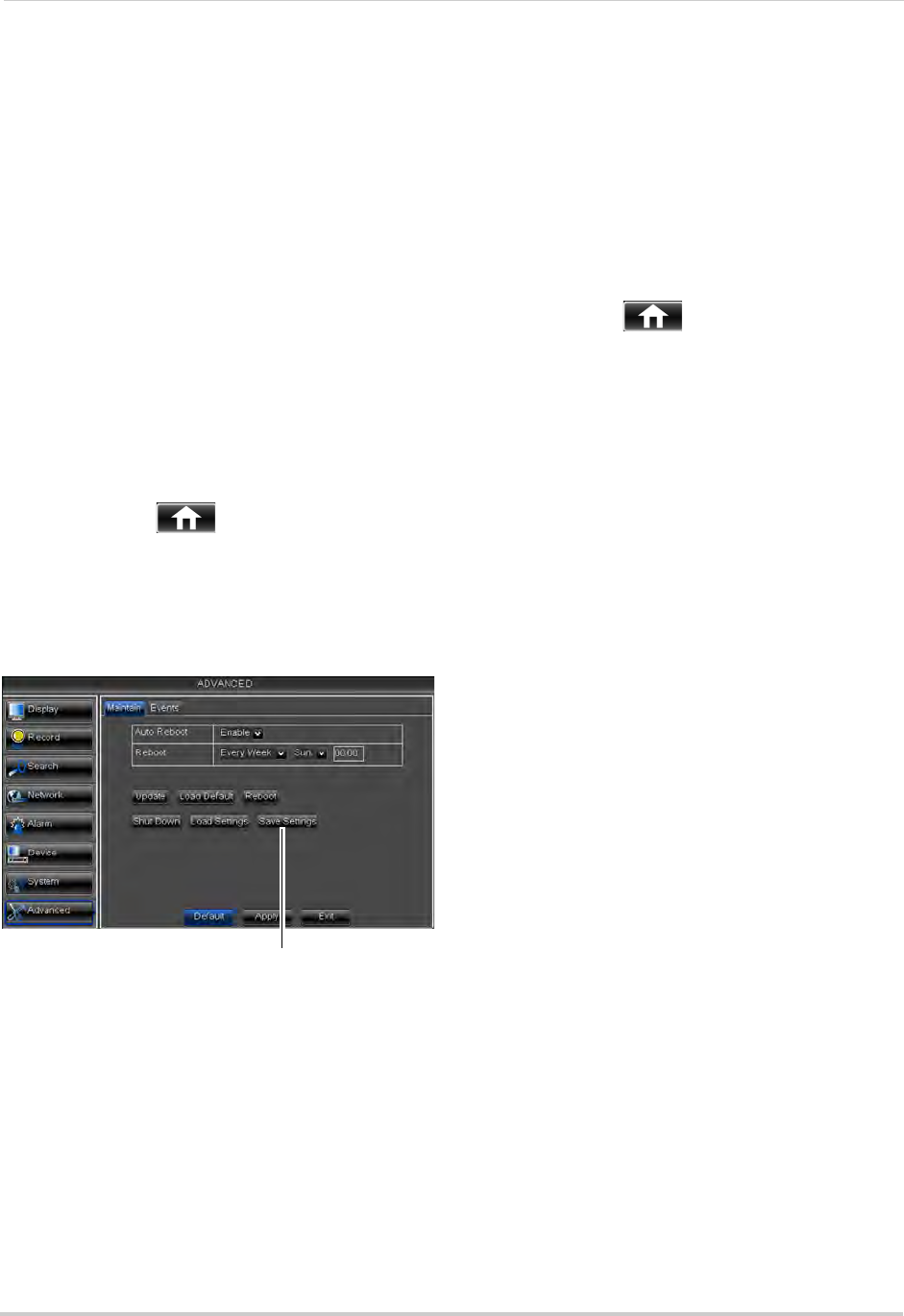

Click to save all system settings to a USB flash drive
