MegaRAID Express 500 Hardware Guide
58
SCSI Termination,
Continued

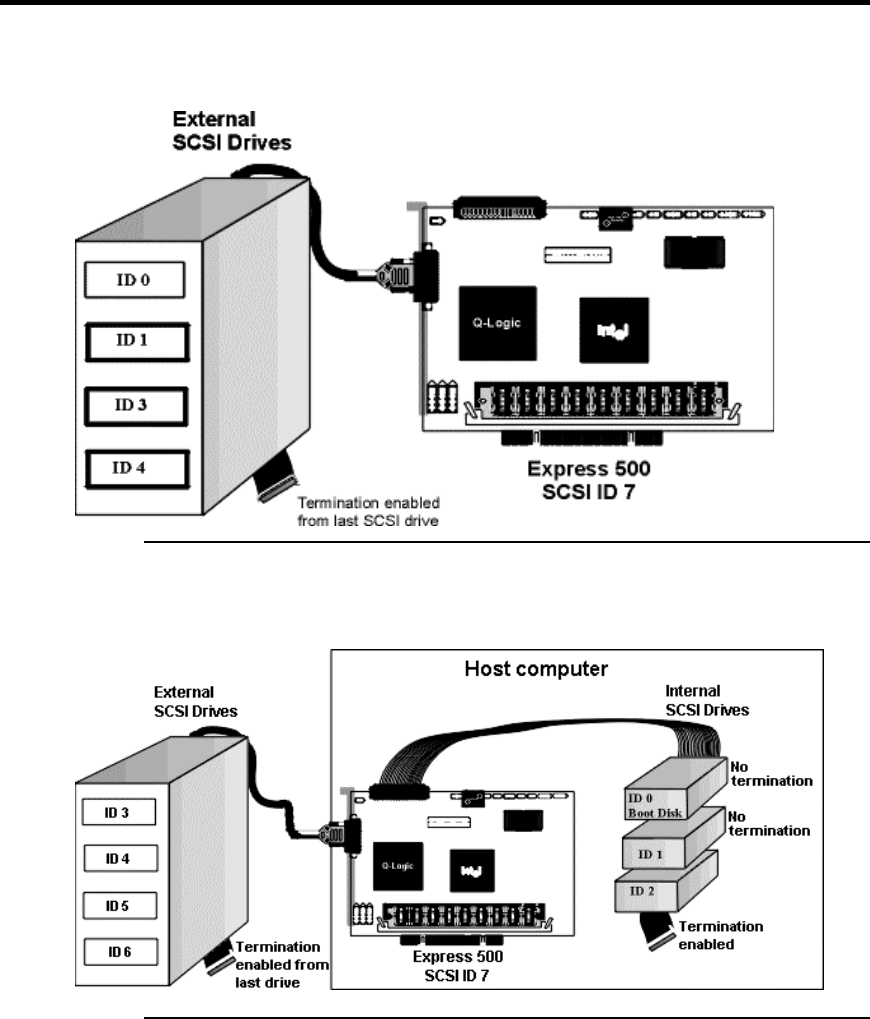

Terminating External Disk Arrays
In most array enclosures, the end of the SCSI cable has an
independent SCSI terminator module that is not part of any SCSI drive. In this way, SCSI
termination is not disturbed when any drive is removed, as shown below:
Terminating Internal and External Disk Arrays
You can use both internal and external drives with
MegaRAID Express 500. You still must make sure that the proper SCSI termination and
termination power is preserved, as shown below:
Cont’d
