2-6 Detailed Host Adapter Installation
Step 3. Plug in any additional internal SCSI devices, as required.

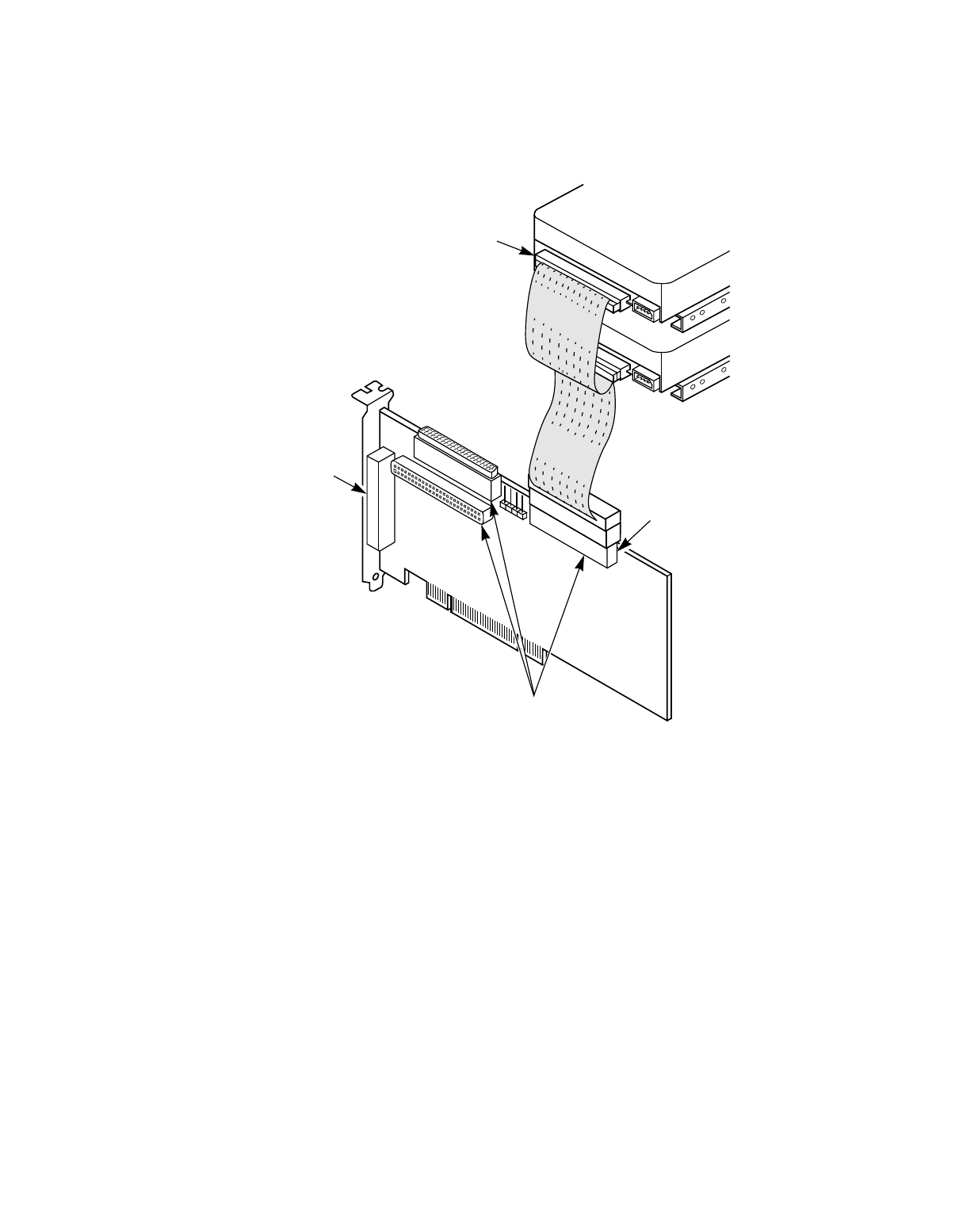

Figure 2.4 Multiple Internal SCSI Devices Chained Together
2.2.2 Making External SCSI Bus Connections
This section provides step-by-step instructions for making external SCSI
bus connections. Refer to Section 3.3.2, “External SCSI Cables and
Connectors,” page 3-11 for examples of external cables.
Step 1. Plug the 50-pin connector on one end of a shielded external
high density cable into the appropriate connector.
This connector is exposed on the back panel of your computer.
Step 2. Plug the 50-pin connector on the other end of the shielded
external SCSI cable into the SCSI connector on your external
SCSI device.
J5 Connector–
Used to connect
multiple internal
SCSI devices
External
Connector
Internal
Connectors
Last Device on Chain–
Termination Enabled
