Technical Specifications 3-13

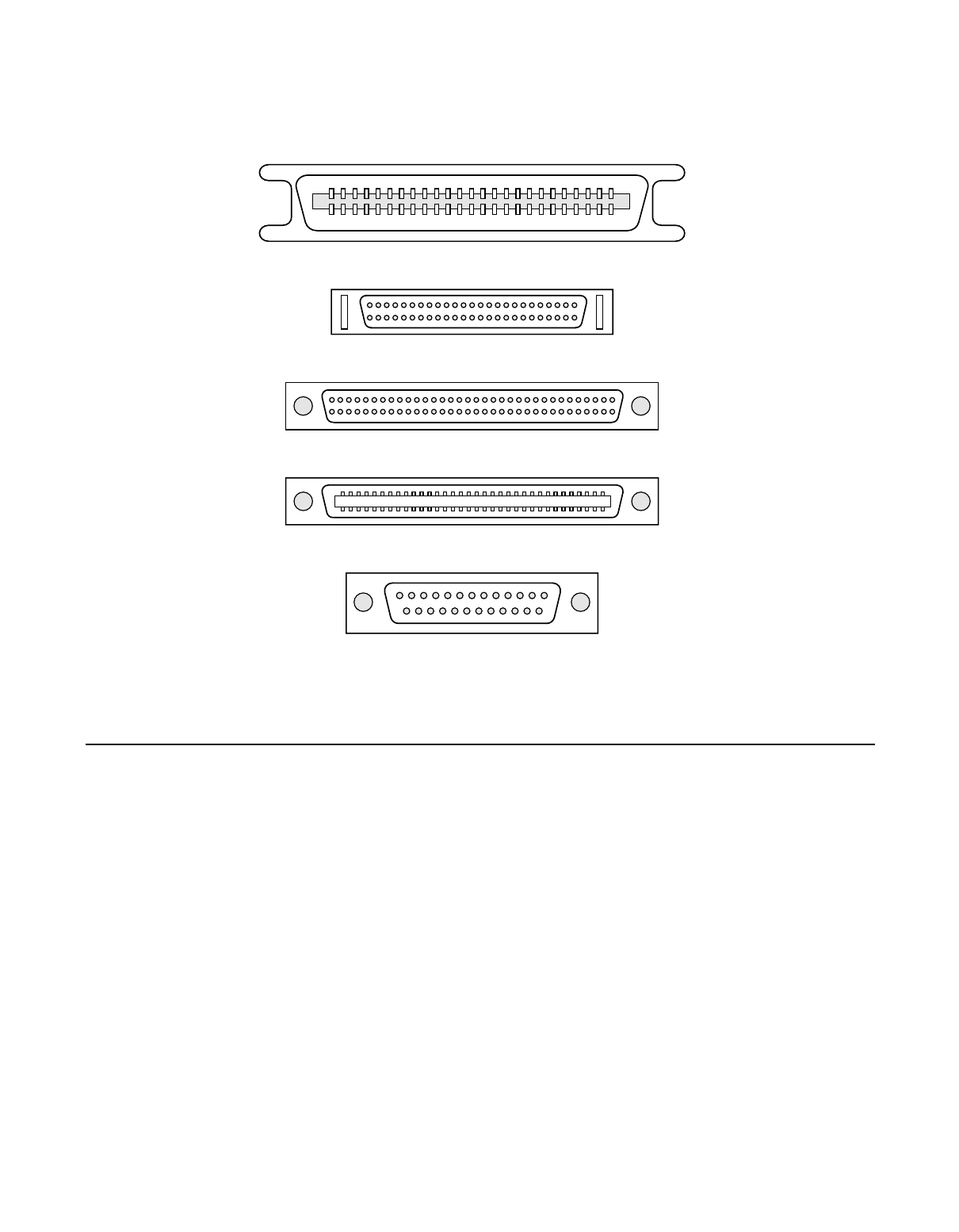

Figure 3.14 External Connectors
3.4 Technical Specifications
The design and implementation of the LSI Logic Ultra160 SCSI to PCI
host adapter boards minimize electromagnetic emissions, susceptibility
to radio frequency energy, and the effects of electrostatic discharge. The
board carries the CE mark, C-Tick mark, FCC Self-Certification log,
Canadian Compliance Statement, and meets the requirements of FCC
and CISPR Class B.
Ultra160 SCSI boards have specific electrical, thermal, atmospheric, and
safety characteristics in common.
Centronics 50-Pin Male
High Density 50-Pin Male
High Density 68-Pin Male
Very High Density Centronics 68-Pin Male
DB25 Male
Note: The DB25 Connector is not a SCSI Standard.
