BoilerSpection-IM Quick Start Guide

Introduction

BoilerSpection-IM is a mobile infrared camera system

used by operators to survey the furnace to identify tube

leaks, guide cleaning actions, and monitor/tune the

overall combustion process. The User Manual includes

complete operation details while this Quick Start Guide

provides instruction to begin basic operation and record

images of your furnace/boiler in a matter of minutes.

System Features

Base System

The base system includes:

• Uncooled microbolometer infrared camera (320 x

240 resolution)

• Choice of lens with integral cooling and purge

• Protective camera enclosure

• Adjustable radiation shield

• Local display with DVR capture to micro-SD

memory card

• Battery backpack and charger

• Storage Case

Options

• Wireless display with DVR capture to SD memory

card

• Interchangeable optics with different angles and

ﬁeld of views

• Air ﬁltration system and air hoses for continuous

operation in a furnace

• Travel case

• On-site service and training

Using the Main Battery

Backpack

The main battery backpack is used to power the infrared

camera and the video transmitter inside of the camera

enclosure for up 20 hours. The backpack is intended to

give you the freedom to inspect numerous ports through-

out the plant.

Charging the Battery

Align the connector on the ﬂex cord to the connector

on the charger. A red light will turn on during charging.

After charging is complete and the green LED turns on,

disconnect the cord from the charger. Take care to align

the black ﬂex cord connector to the connector on the

battery backpack.

Connecting the Main Battery to the

Camera

1. Put the backpack on your shoulders.

2. Connect the yellow connector on the ﬂex cord to

the mating connector on the back of the camera

enclosure.

Once you connect the yellow connector, the camera

and wireless transmitter will automatically power

on.

Installing or Exchanging the

Borescope Lens

BoilerSpection-IM supports interchangeable lens. Users

can purchase additional lens depending on the intended

use of the camera system.

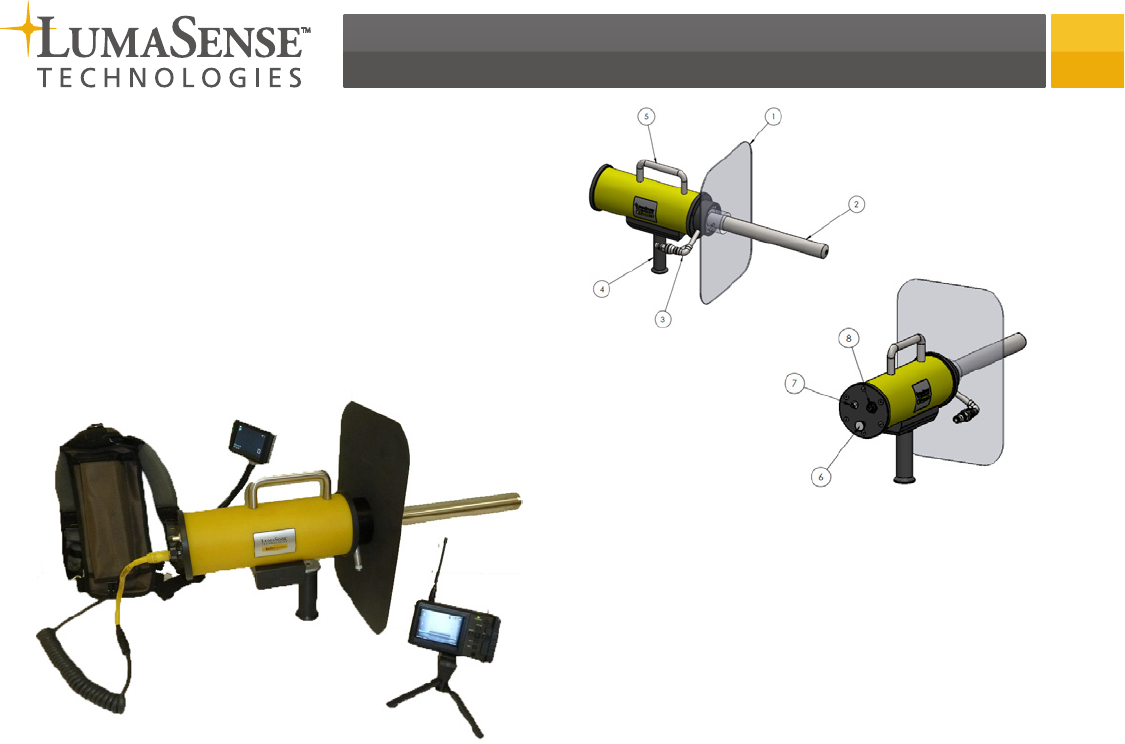

1. Adjustable

radiation shield

2. Interchangeable

lens

3. Air ﬁttings for lens

cooling/purge

4. Removable handle

5. Top handle

6. Focus knob

7. BNC video output

8. 12VDC power input

Summary of content (4 pages)

PAGE 1
BoilerSpection-IM Quick Start Guide Introduction 1. BoilerSpection-IM is a mobile infrared camera system used by operators to survey the furnace to identify tube leaks, guide cleaning actions, and monitor/tune the overall combustion process. The User Manual includes complete operation details while this Quick Start Guide provides instruction to begin basic operation and record images of your furnace/boiler in a matter of minutes. 2. 3. 4. 5.
PAGE 2
Before storing the camera lens and radiation shield in the storage case make sure that all the equipment have cooled to less than 50 °C (120 °F) to prevent melting the case foam. Connecting the Air Filters and Hoses (Optional) The lens shroud is attached to the front plate of the enclosure by three ¼-20 socket head cap screws. The lens tube is attached to the lens shroud and does not need separate removal. 1. 2. Turn the ¼-20 socket head cap screws counter clockwise to remove them from the front plate.
PAGE 3
Powering On the Display 1. Press and hold the Power ON/OFF button for 2 seconds. The power indicator will turn green. 2. Press the button to select CH4 to display picture on the LCD screen. Recording Video 1. During operation, press to enter Video mode. 2. 3. Press the OK button to start recording. Press the OK button again to stop recording. 4. To pause, press OK when the video is playing. Press again to resume. 5. Press to fast forward during playing status. 6.
PAGE 4
3. To turn on the receiver, slide the selection bar on the side of the receiver to “Receiver”. 4. To set the correct frequency, slide the selection bar to 2 for 2.4 GHz. Attach the antenna to the mount labeled 2 as well. Operating the Display Set Video Storage Options 1. With the unit on, navigate to the main menu. 2. Scroll down and select Settings. Scroll to Page 3 of 7 and select Storage Options. Select the preferred option: HDD or SD. 3. Record Video 1.
