Data Sheet

Part Number: RST 4S-703 SW

M12 Power Single-Ended Cordset: Male, straight, 4-pin(3+PE), S-coded,

black body, 600 V AC/DC, 16 A; PUR black cable, 1.50 mm²

Product Description

M12 Power Single-Ended Cordset: Male, straight, 4-pin(3+PE), S-coded, black body, 600 V AC/DC, 16 A; PUR black cable, 1.50 mm²

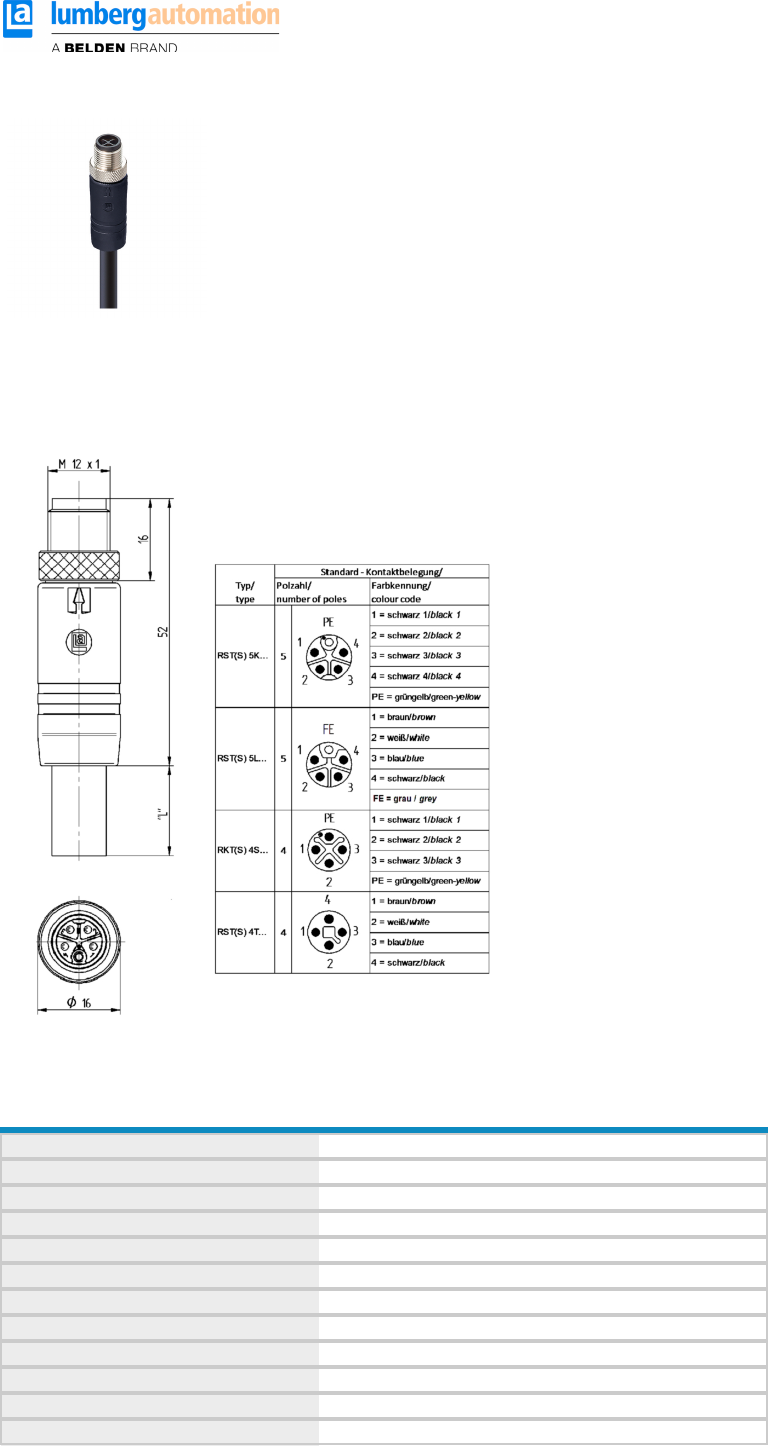

Technical Drawing

Technical Specifications

Technical Data

Product Family: Power Connector

Product Sub Family: M12 Power

Brand: Lumberg Automation

Connector Type: Cordset, single ended

Type of Contact / Gender: male

Connector Design: straight

Number of Pins: 4(3+PE)

Coding: S

Shielding: Unshielded

Attachment Type: Coupling Screw

Rated Voltage: 630 V

Rated Voltage (UL): 600 V

PAGE 1
Part Number: RST 4S-703 SW M12 Power Single-Ended Cordset: Male, straight, 4-pin(3+PE), S-coded, black body, 600 V AC/DC, 16 A; PUR black cable, 1.50 mm² Product Description M12 Power Single-Ended Cordset: Male, straight, 4-pin(3+PE), S-coded, black body, 600 V AC/DC, 16 A; PUR black cable, 1.
PAGE 2
Rated Impulse Voltage: 6.0 kV Operating Voltage: 600 V AC/DC Rated Current: 16 A Rated Current (UL): 16 A Contact Resistance: ≤ 10 mOhm Insulation Resistance: ˃ 10^9 Ohm Mating Cycles: ≤ 100 Ambient Temperature (Operation): -40 °C to +125 °C, notice derating Protection Degree / IP Rating: IP65, IP67, IP69K Design Standard: IEC 61076-2-111 Pollution Degree: 3 acc.
PAGE 3
Halogenfree: DIN VDE 0472 T.815 Oil Resistance: HD 22.10 Appendix A, DIN EN 60811-404 Notes Protection Degree / IP Rating Note: * only if mounted and locked in combination with Hirschmann / Lumberg connector. Note Derating: * Notice derating Variants Item # Item Description Cable Length 934851301 RST 4S-703/2 M SW 2m 934851302 RST 4S-703/5 M SW 5m 934851303 RST 4S-703/10 M SW 10 m 934851304 RST 4S-703/15 M SW 15 m © 2019 Belden, Inc All Rights Reserved.
