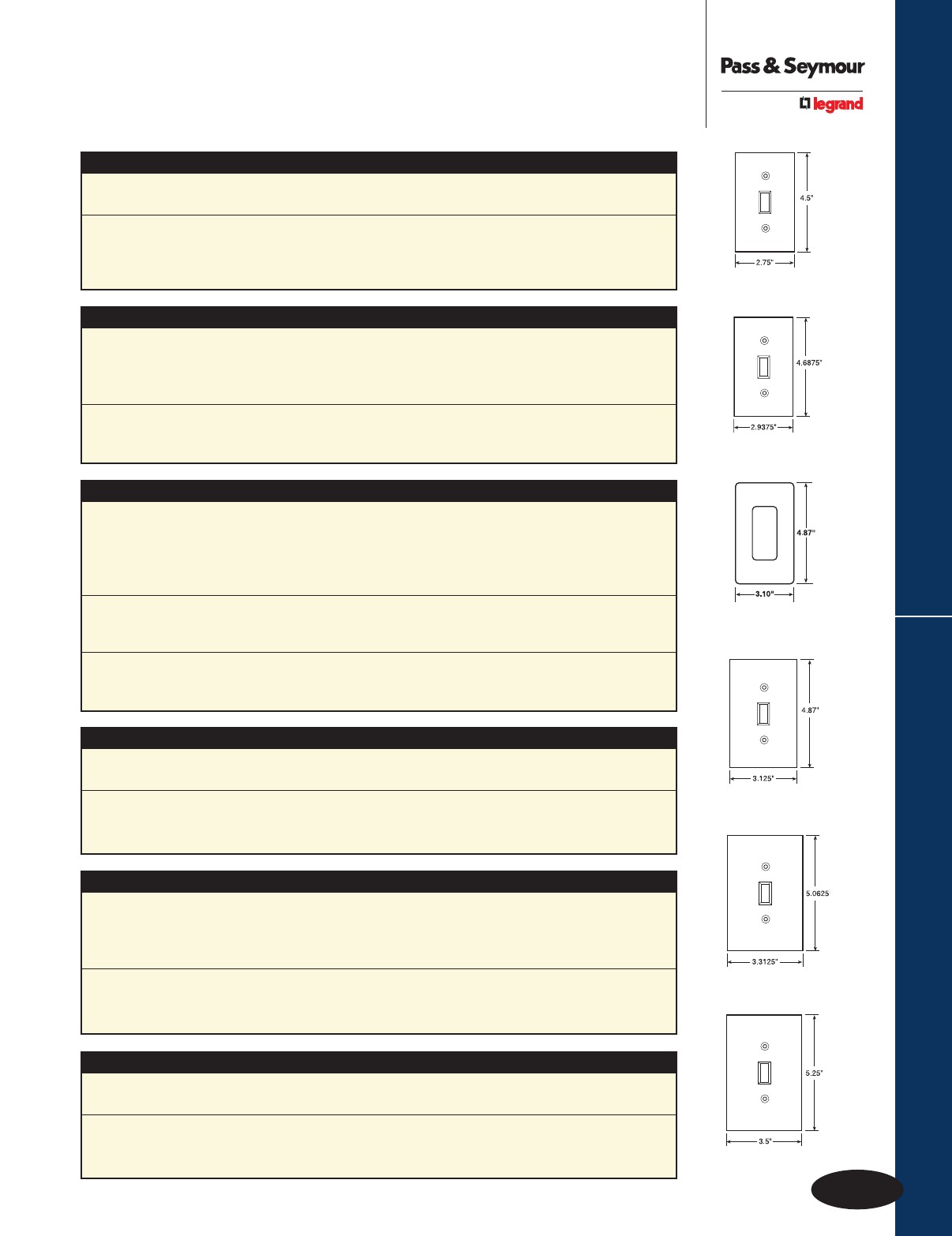

How To Guide

S-3
Wall Plates & Specialties
Wall Plates
Specifications
Dimensions
Junior-Jumbo Wall Plates
■
Extra 3/8" width and height than Standard size wall plates.
■
Additional coverage for sheet rock gaps.
Jumbo Wall Plates
■
Extra 3/4" width and height than Standard size wall plates.
■
Largest size wall plates to cover larger wall damage.
TradeMaster
®
Wall Plates
■
Extra 3/16" width and height than Standard size wall plates.
■
Provide better sheet rock coverage with standard size appearance.
■
Available in unbreakable nylon 6 construction only.
■
Screws pre-installed in the duplex, toggle, and decorator single gang plates.
TradeMaster Jumbo Wall Plates
■
Extra 3/16" width and height than Junior-Jumbo size wall plates.
■
Provide additional coverage for sheet rock gaps, matching the appearance of the TradeMaster Plates.
■
Available in unbreakable nylon 6 construction only.
■
Screws pre-installed in the duplex, toggle, and decorator single gang plates.
Standard Size Wall Plates
■
Standard size wall plates for all applications.
■
Best fit for surface mount boxes.
STANDARD
TRADEMASTER STANDARD
TRADEMASTER JUMBO
JUMBO
JUNIOR-JUMBO
Dimensions
1 gang 2.75" x 4.5"
2 gang 4.56" x 4.5"
3 gang 6.375" x 4.5"
4 gang 8.125" x 4.5"
5 gang 10" x 4.5"
6 gang 11.812" x 4.5"
7 gang 13.62" x 4.5"
8 gang 15.44" x 4.5"
Dimensions
1 gang 2.9375" x 4.6875"
2 gang 4.75" x 4.6875"
3 gang 6.563" x 4.6875"
4 gang 8.375" x 4.6875"
5 gang 10.188" x 4.6875"
6 gang 12" x 4.6875"
Dimensions
1 gang 3.125" x 4.87"
2 gang 4.93" x 4.87"
3 gang 6.75" x 4.87"
4 gang 8.56" x 4.87"
Dimensions
1 gang 3.3125" x 5.0625"
2 gang 5.125" x 5.0625"
3 gang 6.9375" x 5.0625"
4 gang 8.75" x 5.0625"
Dimensions
1 gang 3.5" x 5.25"
2 gang 5.31" x 5.25"
3 gang 7.12" x 5.25"
4 gang 8.93" x 5.25"
Screwless Polycarbonate Wall Plates
■
Extra 1/8" width and height than Standard size wall plates.
■
Provide better sheet rock coverage with standard size appearance.
■
Molded of .065" thick polycarbonate.
■
Subplate made of .042" zinc-plated steel.
■
Oversized opening to accommodate all NEMA 26 decorator-style openings.
Wall Plate Dimensions
1 gang 3.10" x 4.87"
2 gang 4.912" x 4.87"
3 gang 6.724" x 4.87"
4 gang 8.536" x 4.87"
5 gang 10.348" x 4.87"
6 gang 12.16" x 4.87"
Subplate Dimensions
1 gang 2.85" x 4.62"
2 gang 4.662" x 4.62"
3 gang 6.474" x 4.62"
4 gang 8.286" x 4.62"
5 gang 10.098" x 4.62"
6 gang 11.910" x 4.62"
■
Available in plastic and metal only.
■
Available in plastic and metal only.
SCREWLESS
■
Available in plastic and metal only.
