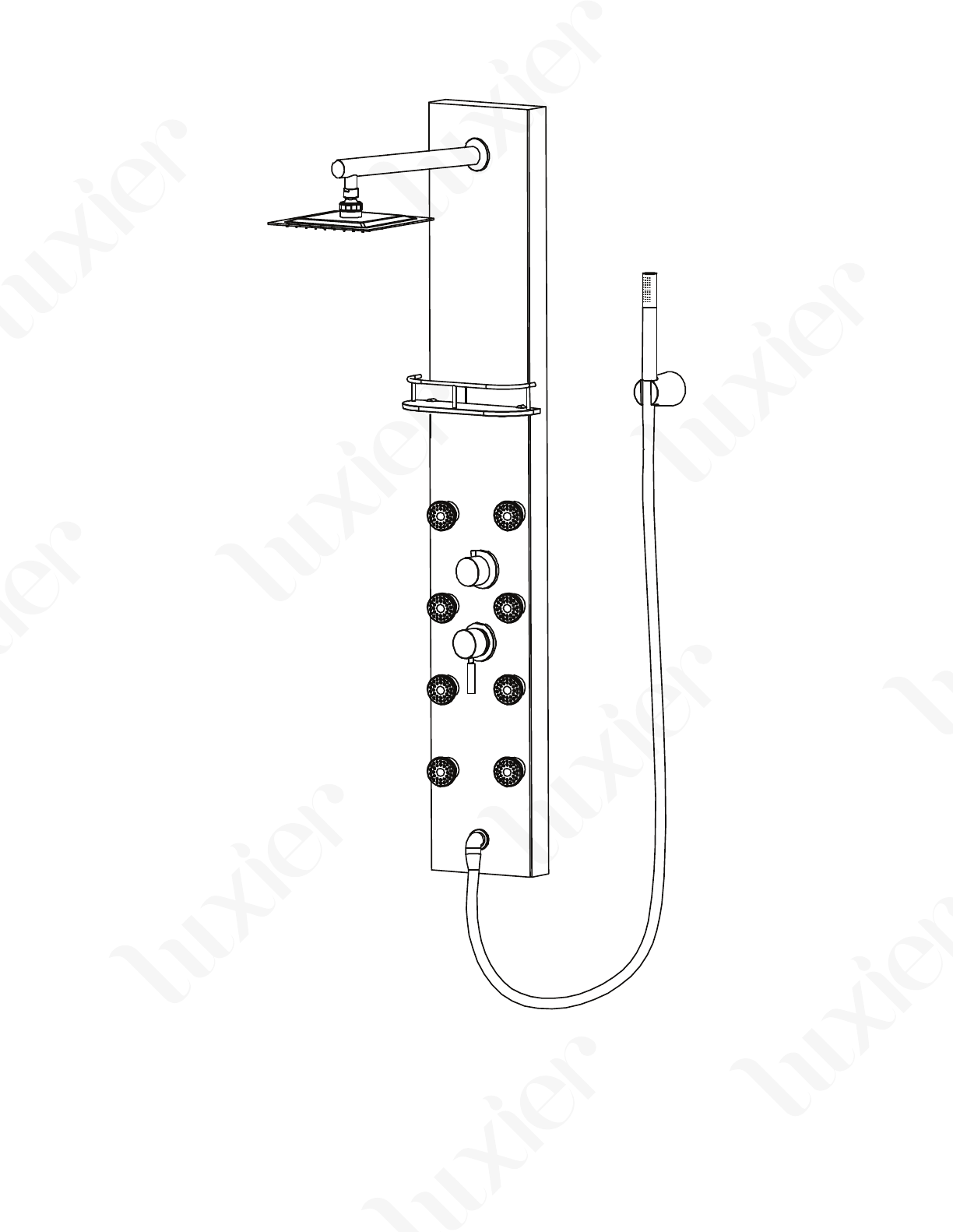

Luxier SP038-SS Features - Stunning stylish European inspired design - Square thin profile shower head - 8 swivel massage jets - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Tempered glass shelf Luxier 1 SP38-SS Rev.
Thank you for purchasing Luxier products. Please read the information below and keep this installation guide for future reference. If you require assistance, please contact our customer service department at 1-877-711-8828, Monday - Friday 9AM - 5PM Pacific Time. Or by email at support@luxierusa.com.
Attention • This installation guide is subject to change without notice, please contact us to request the most updated version of this installation guide. • This is a general installation guideline, actual installation may vary. Consult a professional if necessary. • Product drawings in this installation guide is for illustration purpose only. Actual product may vary depends on model. • Always take extra precautions and wear appropriate safety equipment when installing this product.
Fig. A * Shower panel drawing on this page is for illustration purpose only. Actual product may vary depends on model. Recommended 10” - 12” It is recommened to aim the top horizontal body jets at the chest area of the user for optimal showering experience. The installation height of the outlet box is approximately the total distance of measurement A and measurement B. Approximate shower inlet valve location approx.
Technical Data Recommended Operating Pressure: 50-60 PSI 240mm 9.45” 340mm 13.39” 1300mm 51.18” 710mm 27.95” 430mm 16.93” 270mm 10.63” 60mm 2.36” *All Measurements are Approximate Luxier 5 SP38-SS Rev.
Parts List 1 2 3 4 8 9 10 5 17 16 15 6 11 12 13 14 01. Flange 02. Shower Arm 03. Shower Head 04. Rubber Washwer 05. Shower Panel Body 06. Glass Shelf 07. Rubber Washwer 08. Locking Nut 09. Rubber Washer 10. Rainfall Shower Supply Connector 11. Hand Shower 12. Hand Shower Cradle 13. Rubber Washer 14. Hand Shower Hose 15. Screw x 4 16. Mounting Bracket x2 17. Wall Anchors x 4 Luxier 7 6 SP38-SS Rev.
Installation 1. Attach shower arm assembly to the panel body. Make sure to install screen washer to protect shower head from debris in the plumbing system. 2. Mark the positions of the 2 brackets on the wall and prepare the tile wall for drilling. Use a piece of painters tape or masking tape over the drill area to prevent damages to the tiles. 710mm 27.95” (NOTE: The distance between the two brackets should be 710mm or 27.95”) 3. Using a drill with a tile bit, drill the hole slowly into the tile.
Installation (cont.) 4. Secure the mounting brackets to the wall with the screws. 5. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. IMPORTANT : - Make sure the water supply hoses are connected to the corresponding valves - i.e. cold water hose to the cold water valve and the same for hot water hose. The mixing valve will not function properly if the hoses are installed incorrectly.
Installation (cont.) 6. Once the shower panel has been tested for functions and leaks. Hang the unit on the wall to complete the installation. Due to the limited space behind the shower panel, do not bend the hoses. Any restrictions in the water supply hoses will greatly reduce the performance of the shower panel. After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) 7.
Installation (cont.) 9. Loosen the set screws under the anchors to insert the glass shelf. Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier 10 SP38-SS Rev.
Operation Funcition Selector Hot On / Off Temperature Control Cold 1. To operate the unit lift the handle on the On/Off control knob to turn on the water. 2. Move the handle on the control knob from side to side to set the desired water temperature. 3. Turn the top knob to select desired water function. Overhead Rainfall Shower Handheld Shower Horizontal Body Jets Maintenance Guide Please follow the cleaning material manufacturer’s instructions. In addition, pay attention to the following points: 1.
