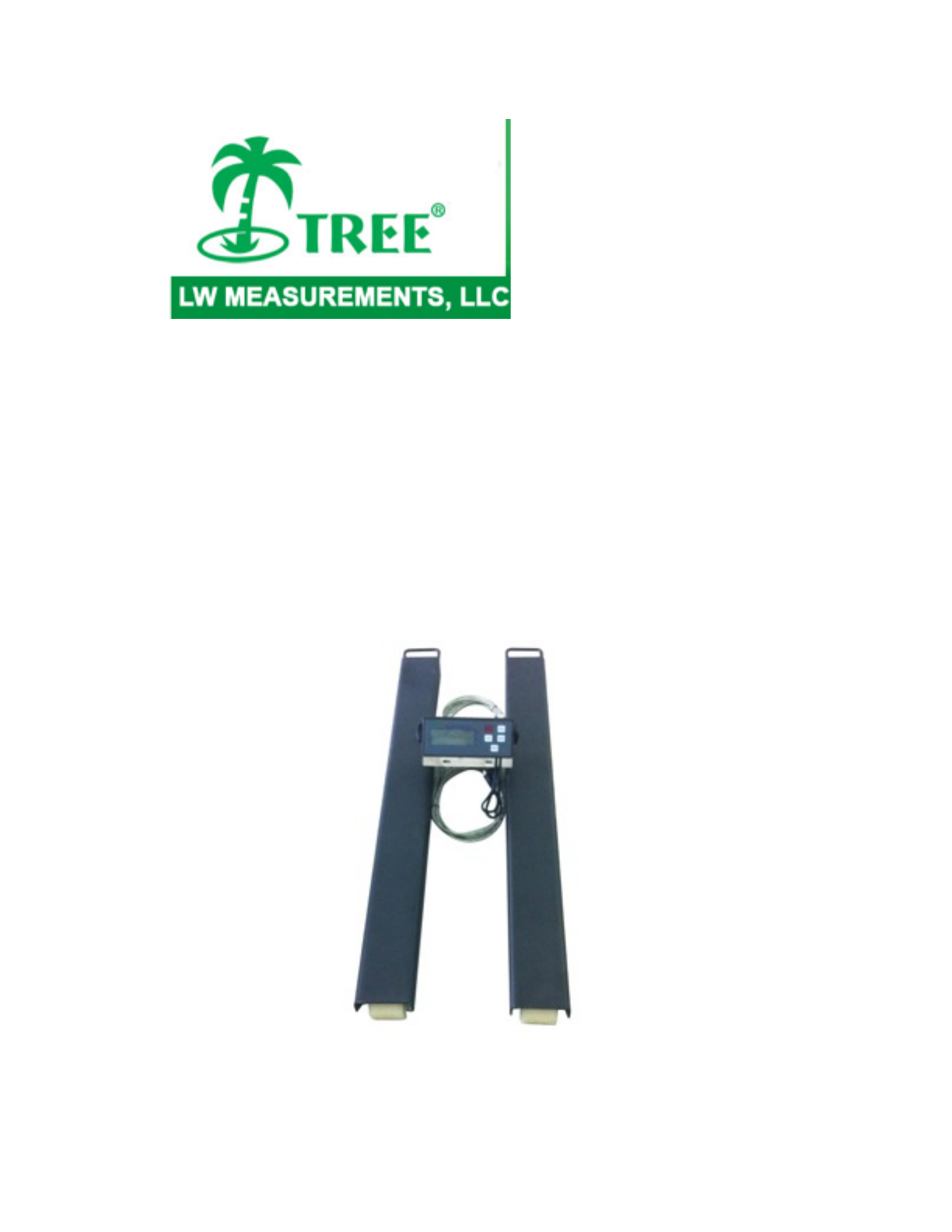

Professional Weighing Equipment ! ! ! ! Weigh Bars Dust and Waterproof Scale IP65 ! ! ! !1
! Operating Manual ! Declaration of Conformity ! Declaration of conformity for apparatus with CE mark ! We hereby declare that the product to which this declaration refers conforms to the following standards.
!2004/108/EC !EN 61326-1: 2006 ! ! ! ! Date: 14. 08.
United Kingdom Tel: 01702-476700 Fax: 01702-477380 ! ASIA LW Measurements PTY Ltd Block 1004, Toa Payoh North #03-16 Singapore 318995 Tel: (65) 6458 3438 HP: (65) 8119 3401 ! ! ! http://lwmeasurements.com ! Refer to our website for information about local customer service centers and details of their addresses. ! ! ! ! Introduction What you should know about these Operating Instructions: ! Tree® Professional Weighing Equipment products are simple to operate.
Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing machine in your daily work. ! ! !! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! These operating instructions contain guidance in the form of pictograms and keyboard diagrams, which should help you in finding the required information: For the labelling of potential hazards and advice, please see Section 1 Safety below.
Contents ! Section Heading 1 Safety !1. Representation and symbols 2. Safety recommendations 3. IP 65 protection 2 Your weighing machine !2.1 Construction and functions 2.1.1 Construction of the weighing machine 2.1.2 Functions of the weighing machine !2.2 Application, conformity 2.2.1 Correct use of the weighing machine 2.2.2 Conformity !2.3 Data and parameters 2.3.1 Technical data 2.3.2 RS232 Data Interface 3 Getting started with your weighing machine !3.1 Unpacking the equipment 3.2 3.
!4.1 Display messages and key functions 4.1.1 Display messages 4.1.2 Key functions !4.2 Program options 4.2.1 Interface setting 4.2.2 Function settings !4.2.2.1 Setting auto shut-off 4.2.2.2 Setting backlight 4.2.2.3 Setting power on mode !! 4.2.3 Working mode setting !4.2.4 Hold function ! 5 Calibration using an external calibration weight 6 Maintenance and service 7 Transport and storage !7.1 Transportation and shipping 7.
1 Safety ! 1.1 Representations and symbols ! ! ! !! Important instructions, which involve safety, are highlighted with the appropriate mark: 1.2 Safety recommendations ! ! ! ! ! ! ! When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing machine may only be used with the power adapter supplied exclusively for use with the weighing machine.
! Your Weigh Bar weighing machine is rated to IP65. The IP rating system • IP stands for Ingress Protection • The rating’s first digit e.g. IP65 relates to the ingress protection against dust (6 means dust tight, see the table below) • The second digit e.g.
! 2 Your weighing machine ! 2.1 Construction and functions ! 2.1.1 Construction of the weighing machine ! The weighing machine consists of the weighing bars (1), the indicator (2), the adapter (3) and this operating manual. ! ! !! !! ! !! !! ! !! !! !! !! ! !! !! !! !! !! !! !! Figure 2.
2.1.2 Functions of the weighing machine ! ! ! The Weigh Bars are high-quality electronic precision weighing machines with the following specifications Imperial weight unit version Model number Capacity Graduation Weighing Platform Size WB 5000 5000 lb 1 lb 40 x 3.9 inches / 102 x 9.9 cm WB 10000 10000 lb 2 lb 40 x 3.9 inches / 102 x 9.9 cm WB 5000: 56 lb / 63 lb ( 25.4 kg / 29 kg) Net/gross weight WB 10000: 65 lb / 71 lb ( 30 kg / 33 kg) Package 125 x 49.
! Power source 6 x AA Dry cells ( not included) or Adapter:12V DC / 150 mA !! ! FEATURES − − − − − − − − − Selectable auto backlight Selectable auto shut-off Hold function ZERO range ( 0% - 4% of full capacity) TARE range ( 4% - 100% of full capacity) Animal weighing mode AnyCal calibration software Selectable calibration units: kg or lb RS232 !! ! 2.2 Application, conformity ! 2.2.
. Output: 12V DC 150mA ! ! ! !! Allowable ambient conditions Temperature: 5°C - 40°C Relative humidity: 25% - 85%, non-condensing If you have any questions on the technical data or require detailed technical information on your balance, please contact your technical representative. 2.3.2 RS232 Data interface ! !! ! 1. ! Connector: DB9 2. Transmissions Settings ! 3.
3 Getting started with your weighing machine ! 3.1 Unpacking the equipment ! ! The machine is delivered in an environmentally-friendly carton, specifically developed for this precision instrument, which provides optimum protection for the balance during transportation. We suggest that you retain the original packaging in order to avoid transportation damage if re-shipping or transporting the balance and to allow the unit to be stored in the best conditions if it is out of operation for an extended period.
! ! !! The weighing machine is delivered in partly dismantled condition. Assemble the individual components in the following sequence: − − Place the unit holder in position. Insert the power adapter cable plug into the socket at the rear of the balance. 3.4 Choice of a suitable location ! The environment in which your weighing machine is used is very important. Air movement, temperature changes, vibrations, direct sunlight, etc. all influence the performance of high precision weighing machines.
!! !! !! Step1: Connect the cable to the load cell and plug the metal connectors under power off condition. ! ! ! ! ! Step 2: Adjust the four scale feet horizontally. ! ! ! ! ! ! ! ! ! ! ! ! 3.6 Calibrating the weighing machine ! Since the Earth’s gravity is not the same everywhere, each balance must be adjusted to compensate for the gravity differences at each location in accordance with the underlying physical weighing principles.
! In order to ensure exact measurements, it is recommended that the balance should be calibrated regularly using a known external calibration weight (see Section 5 below).
4 Working with the application menu using the Intelligent Key-Pad ! ! ! ! ! 4.1 Display messages and key functions ! 4.1.1 Display messages: ! ! !Low battery indicator Negative value indicator Zero indicator !! !! ! 4.1.2 Key Functions: ! ! ! ! ! !! ! 1. The ON/OFF key is to turn the Scale On or Off 2. The HOLD key is to store the weight value. 3. The UNIT key is to toggle different weighing units. 4.
4.2 Program options ! Please see our web-site at http://lwmeasurements.com for practical demonstrations of application usage. ! 4.2.
! ! 4.2.2.3 Setting power-on mode Press and hold HOLD key, then press ON/OFF key to turn on the Scale, display will show “A ON” or “A OFF”, Press UNIT key three times, display will show “J ON” or “J OFF”, press ZERO key to select “J ON” (means showing zero when scale is turned on) or “J OFF” (means showing the weight placed when the scale is turned on). ! ! ! ! 4.2.3 Working mode settings !! - Press & hold UNIT and HOLD keys, then press ON/OFF key to turn on the scale ! - The display will show Ani.
- Press HOLD key to quit hold function mode !21
! 5 Calibration - Using an External Calibration Weight Calibration is generally required when the weighing machine is initially installed or if the weighing machine is moved to a substantial distance from the original location. 30 minutes of warming up of the scale is always needed before initial calibration. A reminder when operating our larger capacity scales: ! The WB series are calibrated at the factory. Usually no recalibration is necessary unless major inaccuracies are observed.
6 Maintenance and service !! The weighing machine must be treated carefully and cleaned regularly. It is a precision instrument. ! ! ! For maintenance-work, the balance must be separated from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be reconnected to the power supply during the work by a third party. ! ! ! See Section 1.3 above regarding IP65. The scale may be washed down.
7 Transport, storage ! 7.1 Transportation and shipping of the weighing machine ! Your weighing machine is a precision instrument. Treat it carefully. Avoid shaking, severe impacts and vibration during the transportation. ! !! Take care that there are no marked temperature fluctuations during the transportation and that the weighing machine does not become damp (condensation). 7.
