Installation Guide

ManualsBrandsLyons Industries ManualsKitchen ApplianceSimplicity Apron Front Acrylic 34 in. 4-Hole Single Bowl Kitchen Sink in White

Apron Sink*

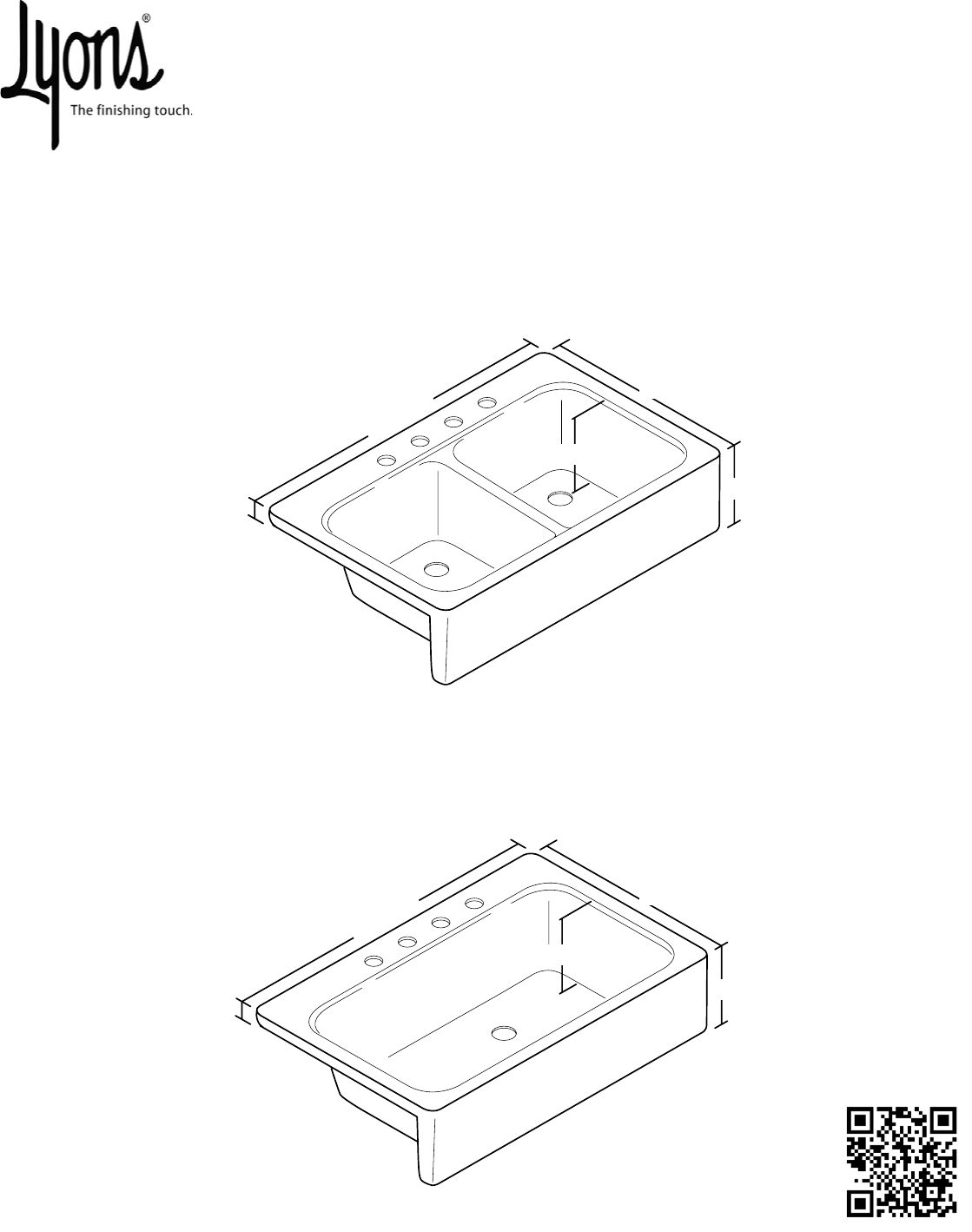

KSxxAP

33-3/4” x 23”

DO NOT RETURN PRODUCT; FOR QUESTIONS OR CONCERNS

please call or e-mail our customer support team

8:00am-4:30pm EST. Monday - Friday

1-800-458-9036

lyonssupport@lyonsindustries.com

Page 1

5/8”

33-3/4”

23”

10”

7-3/4” Apron

Subject to manufacturing tolerance of [+] or [-] 1/8"

KSxxSM

33-3/4” x 23”

1/2”

33-3/4”

23”

10”

7-3/4” Apron

*Number of faucet holes may vary by sink style.

Scan code for installation video

or visit www.lyonsindustries.com

and select “How To Videos”

Summary of content (8 pages)

PAGE 1
DO NOT RETURN PRODUCT; FOR QUESTIONS OR CONCERNS please call or e-mail our customer support team 8:00am-4:30pm EST. Monday - Friday 1-800-458-9036 lyonssupport@lyonsindustries.com Apron Sink* KSxxAP 33-3/4” x 23” 23” ” 3/4 - 33 10” 7-3/4” Apron 5/8” KSxxSM 33-3/4” x 23” 23” 4” -3/ 33 10” 7-3/4” Apron 1/2” *Number of faucet holes may vary by sink style. Subject to manufacturing tolerance of [+] or [-] 1/8" Page 1 Scan code for installation video or visit www.lyonsindustries.
PAGE 2
TOOLS YOU WILL NEED: Tape Measure Carpenter’s Square Straight Edge (3 Feet) Jig Saw or Saber Saw (Fine Tooth Blade) Masking Tape (3") Two 3 1/2" Drains Silicone Caulk IMPORTANT • Read installation instructions carefully before starting project. • Keep instructions for warranty information. • Peel back protective film to verify color before installation. • Do not use plumber’s putty. It will cause product failure and void warranty. Use a high grade silicone caulk for all necessary locations.
PAGE 3
2b. Place sink into cutout. Using a pencil, trace the entire sink including around the front apron. Remove sink from the countertop. (See step 4 for sink removal instructions) 2c. Using a jigsaw with a thin blade, cut inside the traced line from the front of the countertop to the front of the cabinet on both sides according to your measurements and figure 2c. 2b 2c Left Side of Counter Top It is important that your cutout is marked at 90° to the front edge of the counter top.
PAGE 4
. Remove the sink by pushing in on the side clips from underneath and pushing up gently on sink until free. 4 5. Peel back protective film around faucet, drain holes, and sink perimeter. 5 6. Install faucet, any other accessories and drains per manufacturers’ instructions. When installing drains use a high grade silicone. Warning: Do not use plumber’s putty. It will cause product failure and void warranty. Use a high grade silicone for all necessary locations. 6 7a.
PAGE 5
7b. While holding the faucet side against the counter top, push down on the front of the sink (opposite faucet holes) . Push down firmly to make sure the sink sits flush on the counter top. 7b 8. With sink sitting flush on counter top, apply downward pressure and shift sink side to side and front to back to make sure the clips “seat properly”. 8 9. Make sure that the front of the apron is flush with the front of the cabinet. 9 10. Apply a high grade of color-matched silicone.
PAGE 6
11. Connect hot and cold faucet supply, drain pipes, garbage disposal and trap assembly. Depending on the location of the sink drain holes, it may be necessary to adjust the drain pipe fittings under the sink. 11 NOTE: It’s important to check that there are no leaks. Turn on your water supply and check all connections. If a leak is found, tighten joint slightly, making sure not to over tighten. With a stopper in place, fill each sink bowl. Check for any leaks under sink and around drain flange.
PAGE 7
LYONS PREMIUM ACRYLIC KITCHEN SINK — LIFETIME LIMITED WARRANTY Lyons Industries, Inc warrants to the original purchaser that this Kitchen Sink will be free of manufacturing defects, which affect the performance of this product for the use it was intended. The warranty period begins when the consumer/user purchases the unit. FROM DATE OF PURCHASE 1st Year - Should the unit be otherwise than warranted, Lyons Industries, Inc will repair or exchange a defective unit.
PAGE 8
SCRATCH REMOVAL INSTRUCTIONS 1. For effective scratch removal and polishing, you will need to purchase these items. 1 sheet 1000 grit 3M® wet-dry sandpaper 1 sheet 1500 grit 3M® wet-dry sandpaper 1 sheet 2000 grit 3M® wet-dry sandpaper 1 small container of 3M® rubbing compound #05933 These items can be purchased at most auto supply stores that provide supplies to professional paint and body shops. Call before you go. Not all auto supply stores will have these items. 2. Start sanding with 2000 grit paper.
