Installation Guide

Page 3

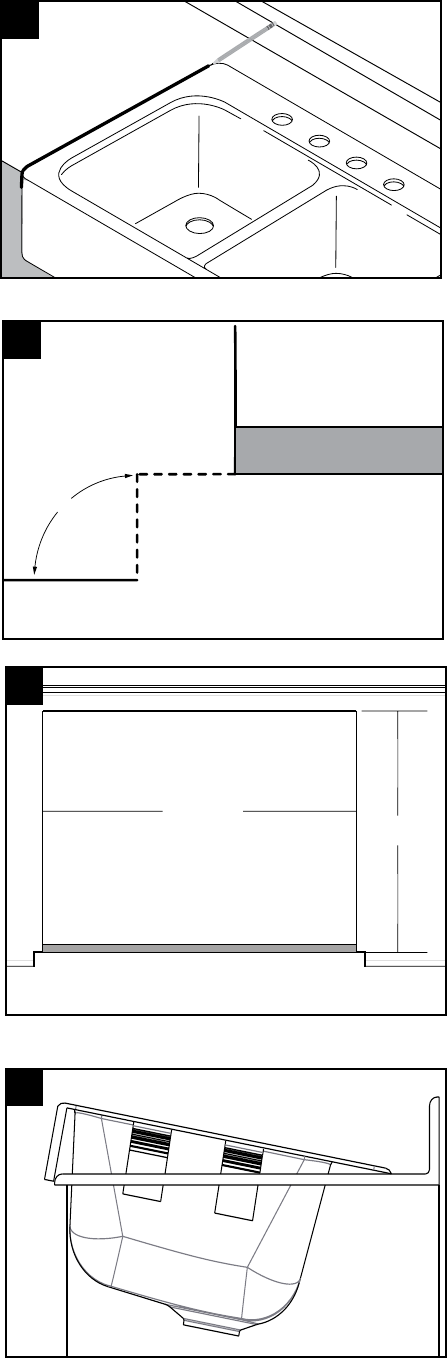

Trial t your sink into the cutout by placing the sink at an
angle. Push down on the front of the sink while holding
the faucet side against the counter top. Push down rmly
to make sure the sink sits ush on the counter top. Make
adjustments to the cutout if needed. The apron should t
ush to the front of the cabinet and should completely
conceal any openings for false drawers. The sink should sit
at on the counter top. Small gaps can be concealed with
caulk during nal installation.
3.
3
Your countertop should now look like the image shown.
2d.
20-7/16 in.
32-7/16 in.
2d
Using a jigsaw with a thin blade, cut inside the traced line
from the front of the countertop to the front of the cabinet on
both sides according to your measurements and gure 2c.
It is important that your cutout is marked at 90° to the front
edge of the counter top. Cut around the cutout lines on the
counter top.
2c.
90
º
Left Side of
Counter Top
Front of Cabinet
2c
Place sink into cutout. Using a pencil, trace the entire sink
including around the front apron. Remove sink from the
countertop. (See step 4 for sink removal instructions)
2b.
2b
