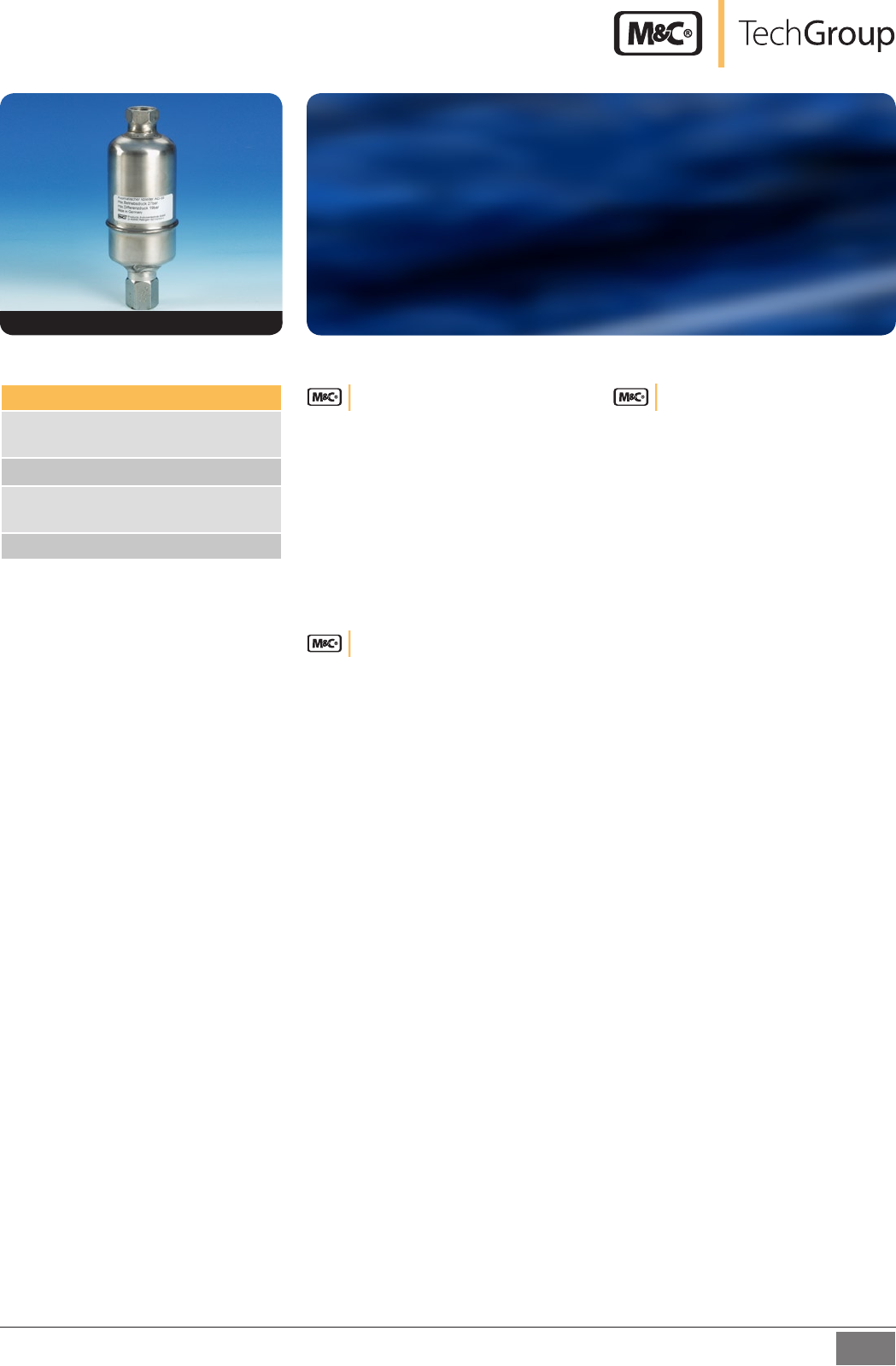

Application
The M&C liquid drain AD-SS is used in gas
conditioning systems where condensate
must be drained after cooling the gas.
For condensate pre-separation of saturated
gas with simultaneous drainage, ADS-SS
separators and automatic liquid drains are
provided with a lateral gas connection for
additional separator functions. For functio-
ning of the above mentioned drains over-
pressure is required.
Description
The AD-SS and ADS-SS automatic liquid
drains function via gravity. The casing, float,
valve and valve seat are made of stainless
steel. The outlet valve is controlled by a lever
mechanism. The float closes the condensate
outlet via the lever mechanism with the
valve tip. Due to the rising condensate level
the outlet is released by the buoyancy of
the float.
The ADS-SS separator with automatic con-
densate drain is a modification with an addi-
tional lateral gas connection.
Automatic liquid drain
Version AD-SS
Separator and automatic liquid drain
Version ADS-SS
Special Features
Save condensate removal and
separation
Completely made of stainless steel
For high pressure and temperature
applications
High drain capacity
Note for operation !
The M&C automatic liquid drain AD-SS and
the separator ADS-SS have to be filled with
water before operation, because otherwise
the draining valve will remain open due to
its design!
AD-SS
