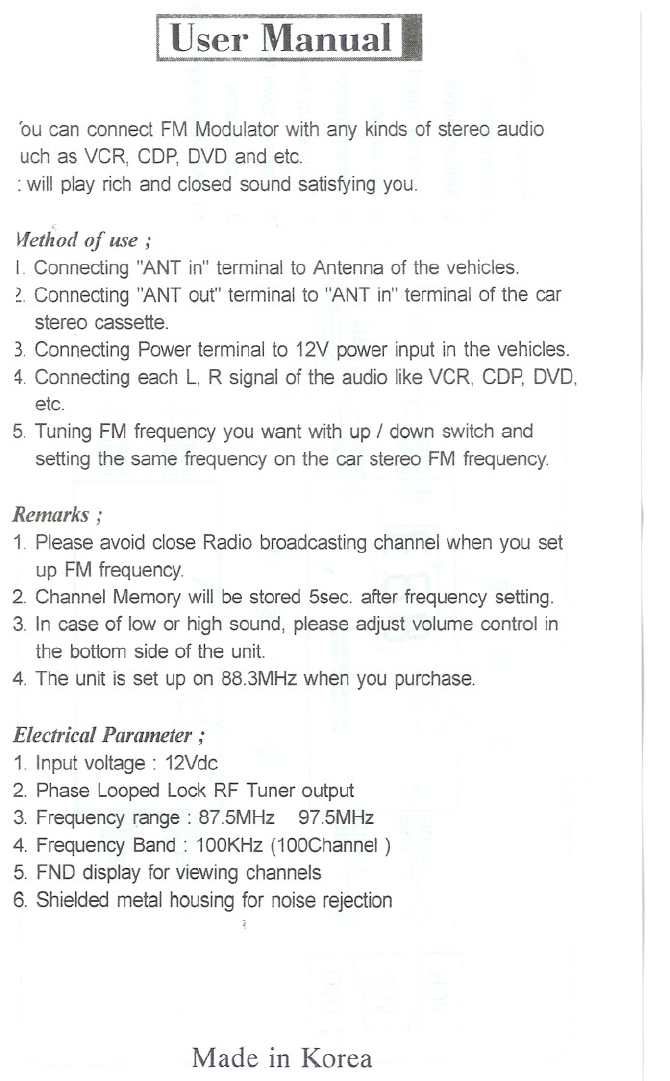

l'User Manuall
'ou Gan connect FM Modulator with any kinds of stereo audio
uch as VCR, COP, OVO and etc.
: will play rich and closed sound satisfying you.
'I1ethod
of use ;
1. Connecting "ANT in" terminal to Antenna of the vehicles.
~. Connecting "ANT out" terminal ta "ANT in" terminal of the car
stereo cassette.
3. Connecting Power terminal ta 12V power input in the vehicles.
4. Connecting each L, R signal of the audio like VCR, cor, DVD,
etc.
5. Tuning FM frequency you want with up 1down switch and
setting the same frequency on the car stereo FM frequency.
Remarks ;
1. Please avoid close Radio broadcasting channel when you set
up FM frequency.
2. Channel Memory will be stored 5sec. after frequency setting.
3. ln case of low or high sound, please adjust volume contrai in
the bottom side of the unit.
4. The unit is set up on 88.3MHz when you purchase.
Electrical Para111Rter ;
1. Inputvoltage: 12Vdc
2. Phase Looped Lock RF Tuner output
3. Frequencyrange: 87.5MHz 97.5MHz
4. FrequencyBand: 100KHz (100Channel)
5. FNO display for viewing channels
6. Shieldedmetal housingfor noise rejection
Made in Korea
