Quick Start Guide

E
F
G
H
B
A
D
C
FRONT
REAR
CEN VIB
FRONT
REAR
CEN VIB
I
Quick Start Guide
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are
registered trademarks of Dolby Laboratories, all rights reserved.
©2006 Microsoft Corporation. All Rights Reserved. Xbox, Xbox Live, the Live Logo, and the Xbox logos are
registered trademarks or trademarks of Microsoft Corp.
©2007 Sony Computer Entertainment America Inc. All Rights Reserved. “PlayStation”, “PLAYSTATION”, “PS” Family
logo and “PSP” are registered trademarks of Sony Computer Entertainment Inc.
Remove protective caps before installing.
Images not to scale.
1 Digital Input Selection: Coaxial & Optical
2 DC Jack
3 Multi-Function Selector Switch (for fine tuning)
VOL/PL
Move the selector to the VOL/PL position
Button 6 will select Pro Logic on/off
Button 7 and 8 will adjust volume up and down
(Pro Logic) When Dolby Pro Logic is “on” with an
audio source that is 2 channel, the audio will
then be converted to 5.1 channel sound. When
Dolby Pro Logic is “off” with an audio source that
is 2 channel, the audio will remain 2 channel
stereo.
(Volume up/down) Pressing the volume up/
down one time will adjust the volume 1dB in
either direction. Press and hold the volume up
to increase the volume to the maximum level.
Press and hold the volume down to decrease the
volume to the minimum level (mute).
TD/DRC (Time Delay, Dynamic Range Control)
Move the selector to the TD/DRC position
Button 6 now becomes DRC (Dynamic Range
Compression) on/off

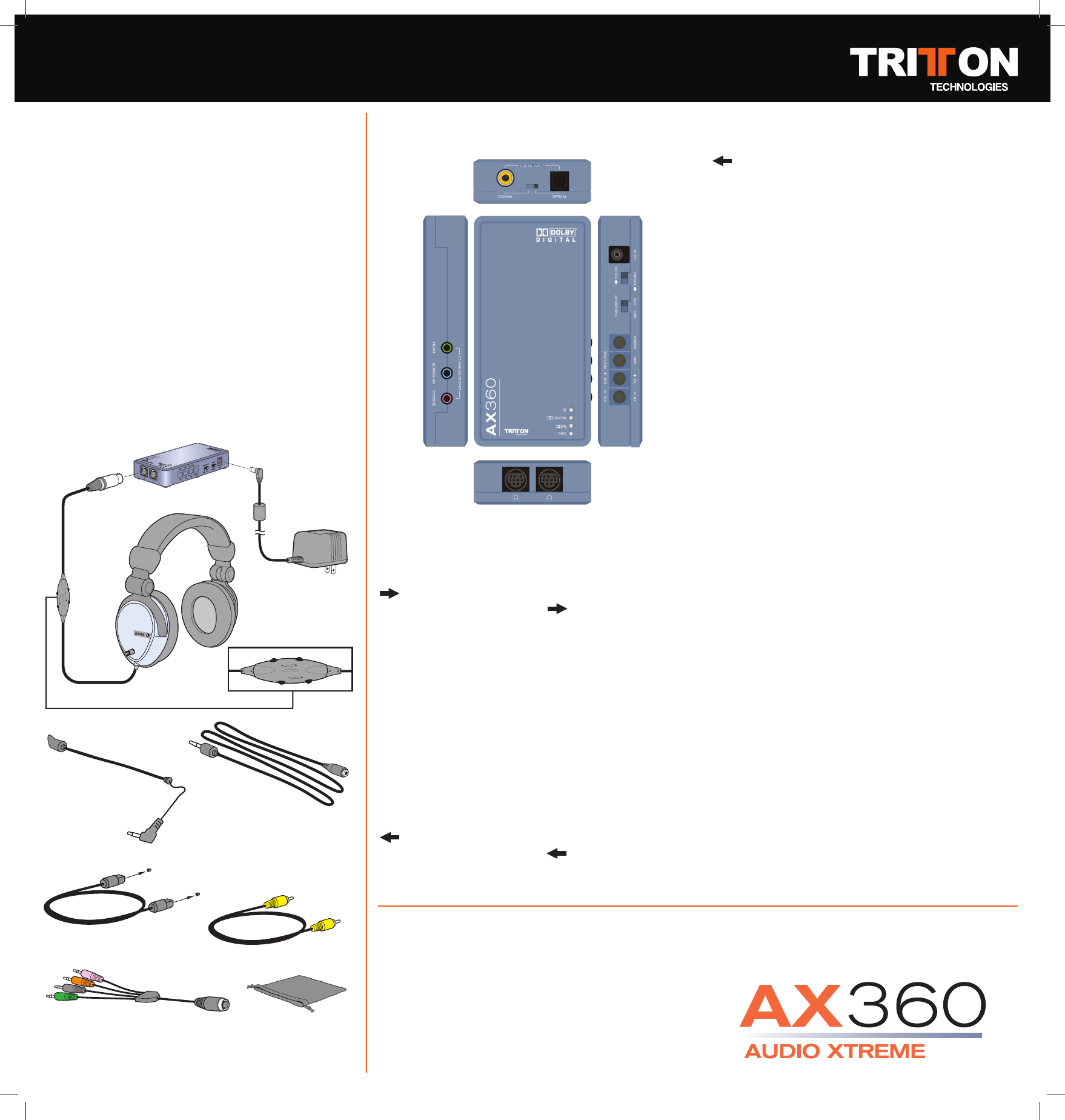

Thank you for choosing AX360 .
Please verify your package contains
the following:
A
- AX360 Dolby Digital & Pro Logic
Audio Controller
B
- AX360 Headset with in-line volume controller
for Center, Front, Rear and Vibration Control
C
- Power Adapter
D
- Removable Microphone
E
- Microphone Extension Cable (for Xbox Live®)
F
- Digital Fiber Optic Cable (Remove protective
caps before installing.)
G
- Coaxial Audio Cable
H
- G9 Adapter (PC/MAC, 5.1 sound card adapter)
I
- Soft Carrying Case
NOTE: When the unit is turned off, all settings will be saved and
remain the same when the unit is powered on. To reset the settings to
the factory defaults, push and hold
7 + 8 together and power down
the unit. Then, power up the unit holding
7 + 8 together and you will
see
bm bn bo flash three times indicating that the factory defaults
have been applied. If the unit is unplugged, it may lose its current
settings.
AX360 Dolby Digital & Pro Logic
Audio Controller
www.trittonusa.com
Customer Support
TRITTON would like to make sure you are completely satisfied with your purchase of the AX360. We offer
toll-free technical support from 8:30 to 5:00pm PST, continental U.S. only. TRITTON also offers extensive
online support with FAQ’s, knowledge base articles and online chat support.
If you have any questions regarding the AX360,
please contact us:
• Toll-freesupport:800-431-1176
• Emailsupport:[e-mail]
• Websupport:www.trittonusa.com
• Productregistration:www.trittonusa.com
REV 9/06 Part# TRI-QS-001
TD/DRC (Continued)
Button 7 and 8 will now increase or decrease
the Time-Delay
- Toggle 4 to change the time delay between the
front channel and the center channel, or the
front channel and rear channels
(TD) Time Delay is a function associated with 4
(SUR/CTR). Default setting is 0mS, except when
in Pro Logic mode then it is defaulted to 15mS.
When in Dolby Digital 5.1:
- Center channel range is from 0-5mS,
adjustable in 1mS increments
- Surround channel range is from 0-15mS
adjustable in 1mS increments
If the audio source is stereo (Dolby Digital 2
channel or PCM format) and Pro Logic is “on”:
- Center channel range is from 0-5mS
- Surround channel range is from 15-30mS
NOTE: The Time Delay adjustment with Dolby
Digital 5.1 mode will automatically update the
associated Time Delay value in Pro Logic mode
and vice versa. However, if the source is Dolby
Digital 2 channel and Pro Logic is off, nothing
will be adjusted.
4 Select Time-Delay
5 Power on/off
6 Pro Logic / DRC on/off
7 Volume up & Time-Delay Increase
8 Volume down and Time-Delay decrease
9 Headset connections, this unit can support
2 headsets at the same time
bk 5.1 analog out, connection to external
5.1 speaker system
bl Indicator light for power on/off
bm Indicator light for Dolby Digital format
(5.1 or Stereo)
bn Indicator light for Pro Logic on/off
bo Indicator light for DRC on/off
1
2
3
4
5
6
7
8
9
bk
bl
bm
bn
bo
