www.magliner.com

ASSEMBLY INSTRUCTIONS

INSTRUCCIONES DE MONTAJE

Table of Contents:

Parts List .................................... 2

Assembly Instructions ...........2-4

Warranty Information ............... 5

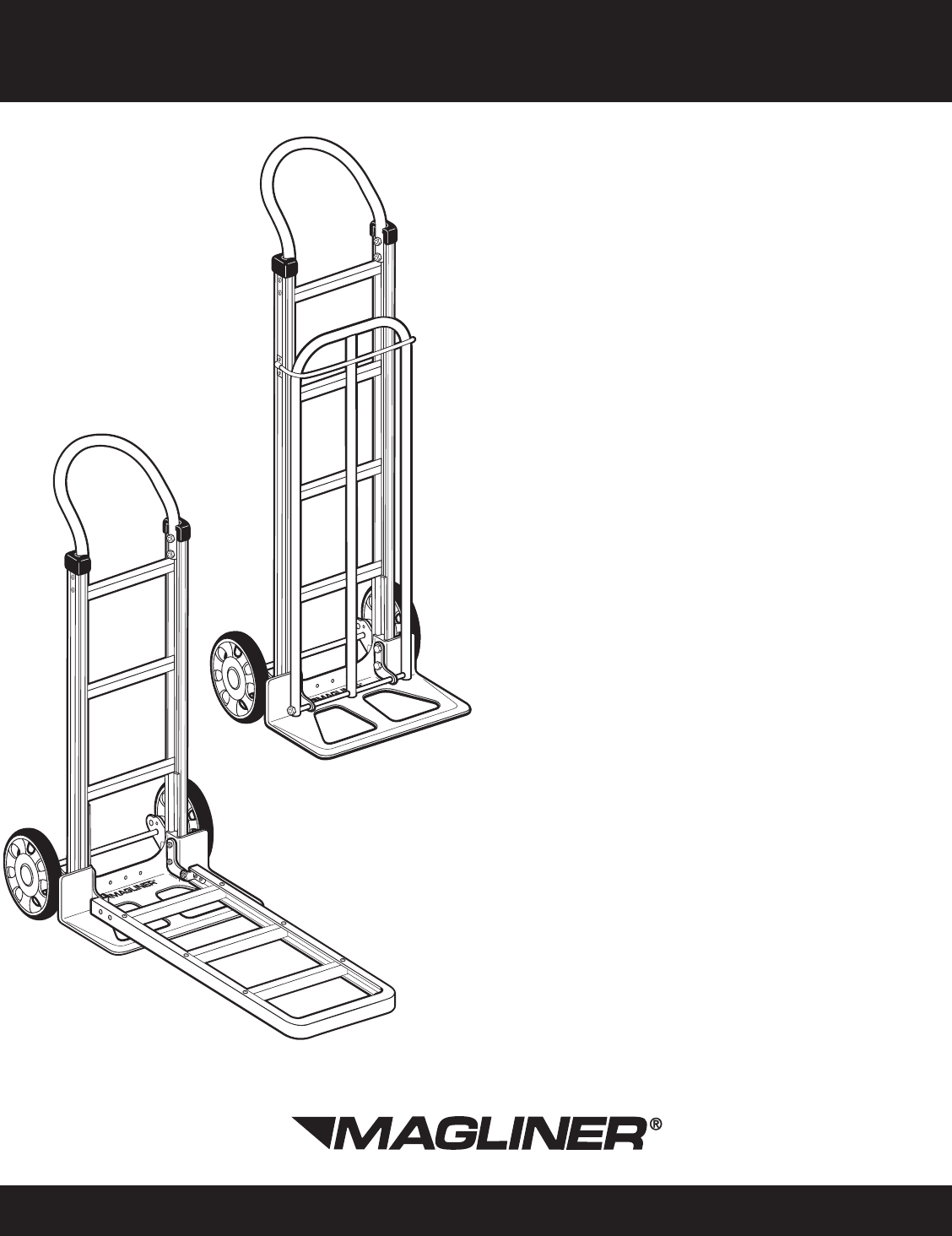

Folding Nose

Extension

Índice de contenidos:

Lista de piezas............................ 2

Instrucciones de montaje ....... 2-4

Información sobre la garantía .. 5

Frontal

Extensible

Summary of content (6 pages)

PAGE 1
Assembly Instructions InstruccIones DE Montaje Folding Nose Extension Table of Contents: Parts List . ................................... 2 Assembly Instructions ...........2-4 Warranty Information ............... 5 Frontal Extensible Índice de contenidos: Lista de piezas............................ 2 Instrucciones de montaje........ 2-4 Información sobre la garantía... 5 www.magliner.
PAGE 2
TOOLS REQUIRED • (2) 1/2" Box End Wrench HERRAMIENTAS NECESARIAS • (2) 1/2" Llave de cubo Parts List ITEM DESCRIPTION QTY.
PAGE 3
The following assembly sequence is recommended: Step 1: If you are adding a folding nose extension to an assembled hand truck, remove two 5/16"-18 hex head bolts from one side of the nose and discard the bolts. You will need the nuts. Repeat for the other side. If you are installing on a new hand truck, proceed to step 2. Step 2: For the F2 and F3 style noses: a. Assemble one "L" bracket (2) with two 5/16"-18 x 2 3/8" long hex head bolts (1) from the hardware pack and the 5/16"-18 hex lock nut.
PAGE 4
2 Figure 1 6 Ilustración 1 6 4 4 1 5 3 5 6 7 8 3 Figure 2 1 Ilustración 2 6 2 2 7 6 4
PAGE 5
PAGE 6
WARRANTY Information Información sobre La GarantÍa Magline One-Year Limited Warranty Garantía limitada de un año Magline Magliner products have a one (1) year warranty from the date of purchase against defects in workmanship or material. Los productos Magline tienen una garantía de un (1) año desde la fecha de compra para trabajos de reparación o material.
