HDD & DVD Player/Recorder with Digital Tuner Owner's Manual

19EN 19EN
Recording Playback EditingIntroduction
Connections
Basic Setup Function Setup Others
Español
IN
IN
OUT
VIDEO
IN
AUDIO IN
(
E1
)
S-VIDEO S-VIDEO
AUDIO OUT
COMPONENT
VIDEO OUT
OUT
L
R
VIDEO
OUT
PR/CR
ANTENNA
R
L
DIGITAL AUDIO OUTPUT
PCM/BITSTREAM
COAXIAL
AUDIO OUT
L
R
VIDEO
OUT
AUDIO OUT
L
R
AUDIO IN
LR
IN
IN
OUT
VIDEO
IN
AUDIO IN
(
E1
)
S-VIDEO S-VIDEO
AUDIO OUT
COMPONENT
VIDEO OUT
OUT
L
R
VIDEO
OUT
Y
PB/CB
PR/CR
ANTENNA
R
L
DIGITAL AUDIO OUTPUT
PCM/BITSTREAM
COAXIAL
DIGITAL AUDIO OUTPUT
PCM/BITSTREAM
COAXIAL
COAXIAL

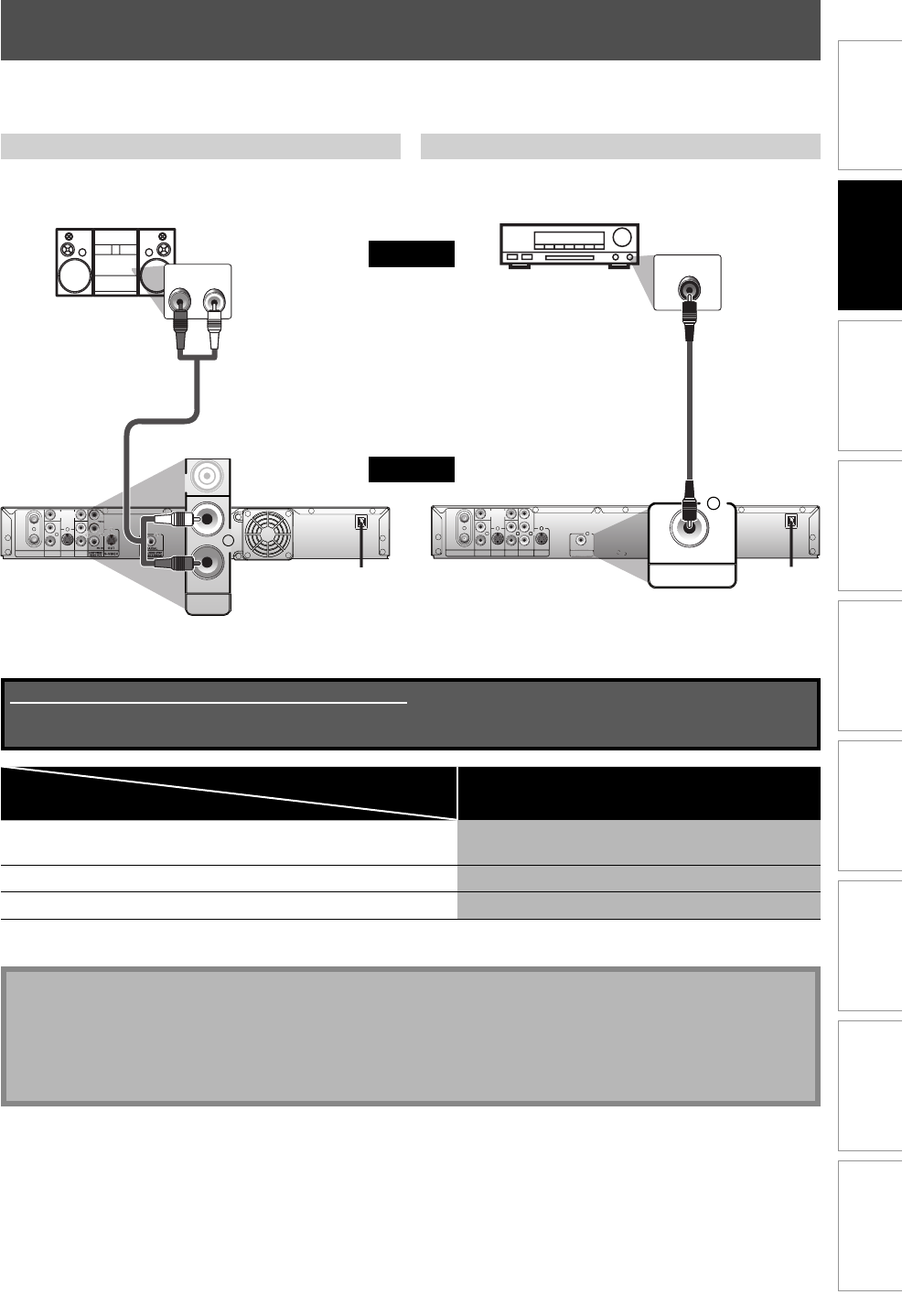

CONNECTION TO AN AUDIO SYSTEM
• When you change the connections, all devices should be turned off.
• Refer to the manual accompanying external devices for more information.
stereo system
audio
analog audio
input jacks
RCA audio cable
AUDIO OUT
2 Channel Analog Audio Connection Digital Audio Connection
Dolby Digital decoder, MD deck or DAT deck
digital audio coaxial input
jack
digital audio coaxial cable
DIGITAL AUDIO OUTPUT
this unit
Note
• The audio source on a disc in a Dolby Digital multi channel surround format cannot be recorded as digital sound
by an MD or DAT deck.
• By connecting this unit to a Dolby Digital decoder, you can enjoy high-quality Dolby Digital multi channel
surround sound as heard in the movie theaters.
• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.
Supplied cables used in this connection are as follows:
• RCA audio cable (L/R) x 1
Please purchase the rest of the necessary cables at your local store.
Setting
Setup >General Setting >Playback >Disc Audio >
Dolby Digital
Connection
If output is Dolby Digital encoded audio, connect to a Dolby
Digital decoder.
Stream
Connecting to an MD deck or DAT deck. PCM
If not connected to any external devices. PCM
* To complete these settings, refer to page 98.
