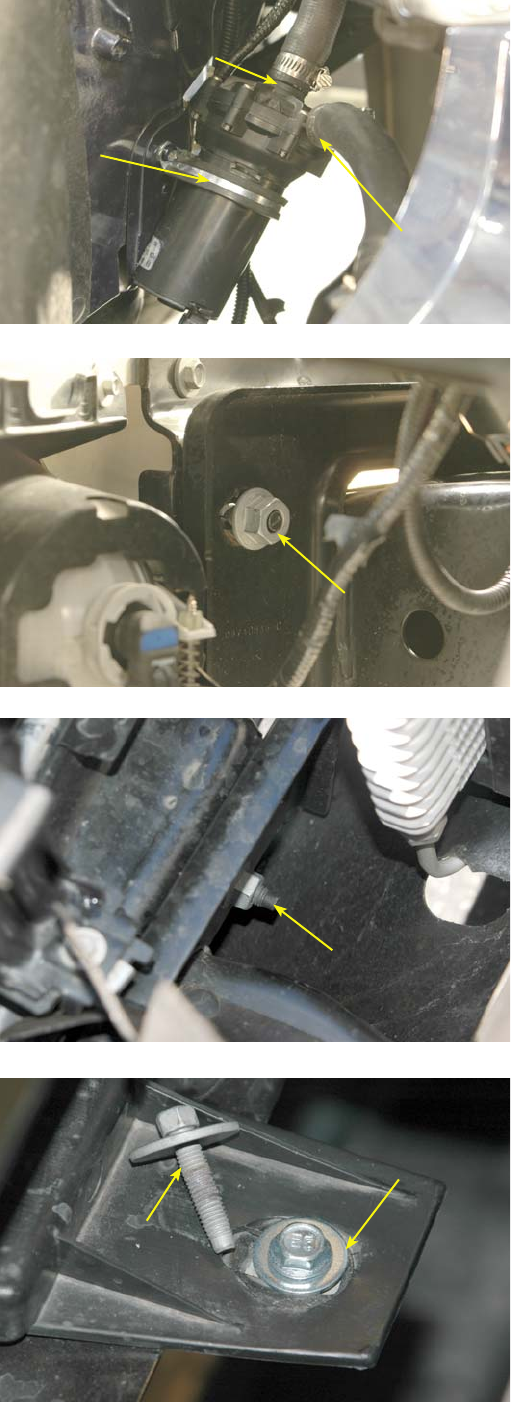

165. Mount the intercooler coolant pump using
the Adel clamp supplied. Pass the previously
removed screw through the clamp and mount the
pump in the position as shown. Tighten the screw
securely. Connect the remaining end of the elbow
hose to the upper inlet barb of the pump. From
the 18” elbow hose, connect the short end to the
pump outlet barb. Secure both hoses with a #10
or spring clamp supplied.
Pump
Inlet
Pump
Outlet
Adel
Clamp
166. From inside the fender well on each side
of the vehicle, locate the bumper mounting nuts
shown. Only loosen the nut, but do not remove it.
167. Below the oil cooler on the bumper bracket,
remove the nut and captured bolts from their
holes.
Bumper
Mount Nut
Nut and
Captured Bolt
Bumper Bracket
Bumper Bracket
Bumper Support
168. Along the back edge of the bumper are
three bumper cover mounting tabs. Remove the
original, long bolts and replace them with the 6mm
X 12mm bolts and washers supplied.
6 X 12mm Bolt
and Washer
Original Bolt
05/06
Page 44
2004-2006 Ford F-150 3V Supercharger Installation Instructions magnacharger.com
