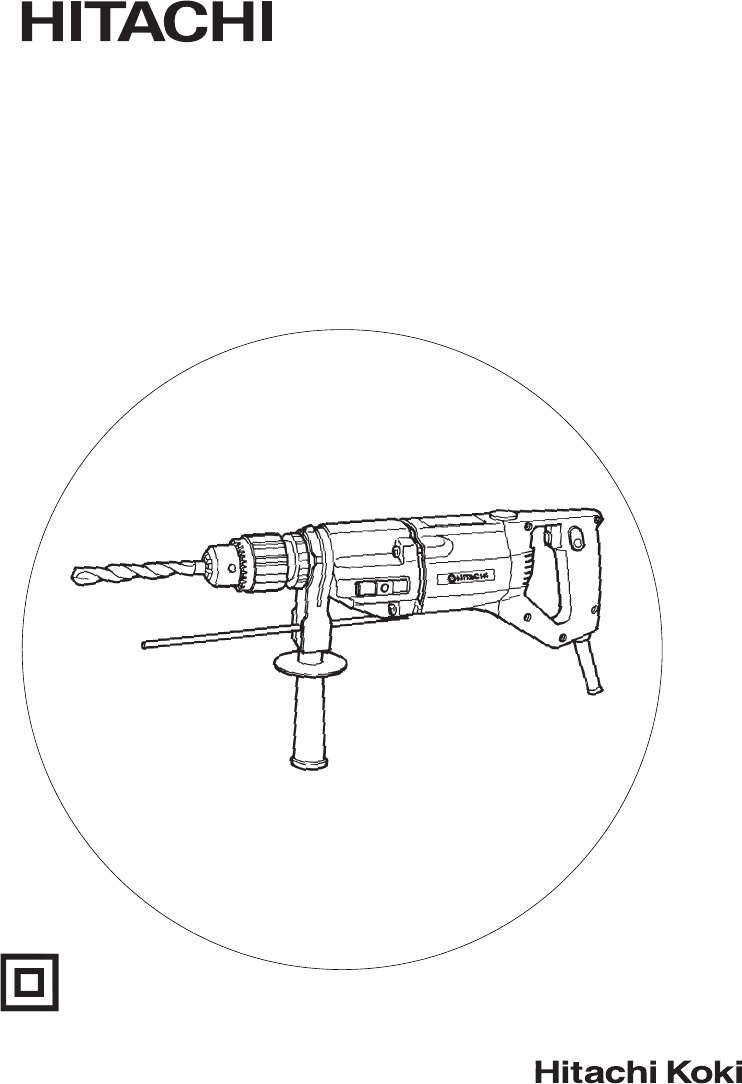

VTV-16

Impact Drill

Model VTP-16A

•

VTV-16

Handling instructions

Note:

Before using this Electric Power Tool, carefully read through these

HANDLING INSTRUCTIONS to ensure eﬃ cient, safe operation. It is

recommended that these INSTRUCTIONS be kept readily available as

an important reference when using this power tool.

000Book_VTP-16A.indb 1000Book_VTP-16A.indb 1 2009/06/24 11:43:302009/06/24 11:43:30

Summary of content (8 pages)

PAGE 1
Impact Drill Model VTP-16A • VTV-16 Handling instructions VTV-16 Note: Before using this Electric Power Tool, carefully read through these HANDLING INSTRUCTIONS to ensure eﬃcient, safe operation. It is recommended that these INSTRUCTIONS be kept readily available as an important reference when using this power tool. 000Book_VTP-16A.
PAGE 2
GENERAL SAFETY RULES WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) Work area a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
PAGE 3
IMPACT DRILL SAFETY WARNINGS 1. Wear ear protectors with impact drills. Exposure to noise can cause hearing loss. 2. Use auxiliary handles supplied with the tool. Loss of control can cause personal injury. 3. Before drilling into a wall, floor or ceiling, thoroughly confirm that no items such as electric cables or conduits are buried inside.
PAGE 4
7. IMPACT to ROTATION changeover: (Fig. 2) The Impact Drill can be switched from IMPACT (impact plus rotation) to ROTATION (rotation only) by simply turning the change ring. When boring concrete, stone, tile or similar hard materials, turn the change ring fully clockwise. The drill head impacts against the material while continuing to rotate. When boring metal, wood or plastic, turn the change ring fully counterclockwise. The drill simply rotates as an ordinary electric drill.
PAGE 5
4. Replacing carbon brushes Disassemble the brush caps with a slotted-head screwdriver. The carbon brushes can then be easily removed. 5. Maintenance of the motor The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water. 6. Replacing supply cord If the supply cord of Tool is damaged, the Tool must be returned to Hitachi Authorized Service Center for the cord to be replaced. 7. Service parts list A: Item No.
PAGE 6
000Book_VTP-16A.
PAGE 7
000Book_VTP-16A.
PAGE 8
Hitachi Koki Co., Ltd. Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan 911 Code No. C99013611 N Printed in Japan 000Book_VTP-16A.
