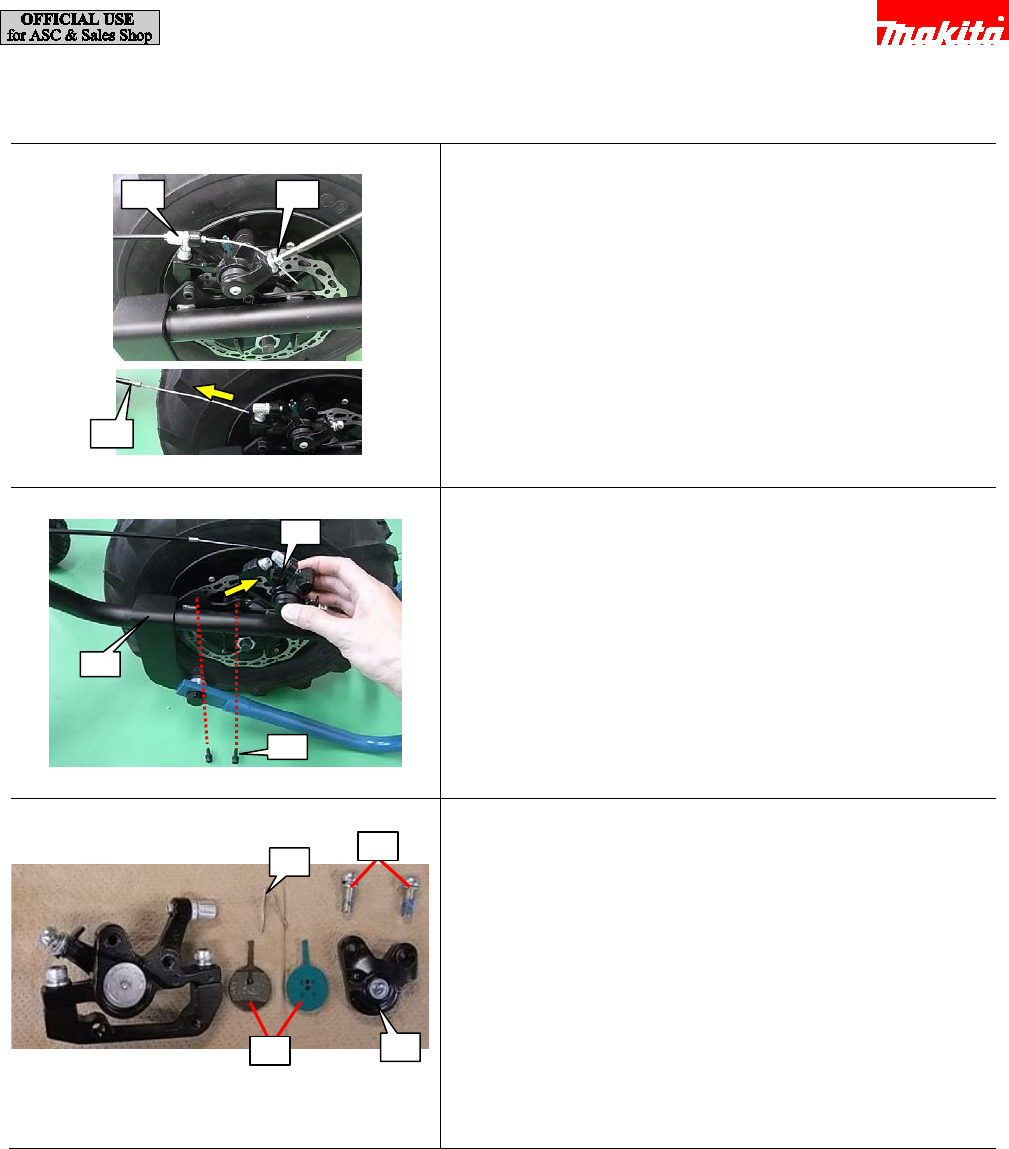

6-6 Brake
6-6-1 Disassembling
Fig. 23
1
Loosening M6x18 H.S.H bolt W/WR [1] (2 pcs) of Brake
caliper assembly, pull off Brake cable through Adjust screw
section [2].
Fig. 24
2
Removing M6x18 H.S.H bolt W/WR [1] (2 pcs) remove
Brake caliper assembly [3] from Lower frame [2].
Fig. 25
3
Remove two screws [1] and Connector [2] and then
disassemble Brake pad [3] and Pad spring [4] (2 pcs).
The components of Brake caliper assembly are as shown
left.
[1]
[3]
[2]
[1]
[2]
[3]
[4]
[1]
[3]
[2]
