Power adaPter

reFereNCe GUIde

Model 100892

MH-100854-miniQIG-0109-03

Thank you for purchasing this MANHATTAN

Power Adapter,

Model 100892.

This device delivers power to most any portable device from a DC

source, including EmPower and similar connections available on

many airline ights. For a complete list of compatible notebook

computers and a reference for airlines, see the back of this sheet

or view the item’s datasheet at www.manhattan-products.com.

MANHATTAN

offers a complete line of PC Components, Peripherals, Cables and Accessories.

Ask your local computer dealer for more information or visit us online at

www.manhattan-products.com

All products mentioned are trademarks or registered trademarks of their respective owners.

SPECIFICATIONS

• Convertible DC plug tips ensure

proper polarization and t

• Selectable voltage output levels

match a device’s requirements

• Overload, overheat and

over-current protection

help ensure reliable

operation

• Lifetime Warranty

INSTRUCTIONS

1. Select the DC plug tip that ts into your portable device

and connect it to the output cable of the power adapter.

2. With the proper DC plug tip in place, connect the power

adapter to your portable device. (It’s recommended that

the portable device be turned off.)

3. Position the adapter’s voltage switch to the appropriate

setting.

4. Plug the adapter into a power outlet and check that the

red LED is lit.

5. Read the Operating Cautions on the back of this sheet,

then turn on the portable device.

To use the MANHATTAN Power Adapter in conjunction with

an EmPower connection commonly offered by airlines (see

sample list on the back of this sheet):

• Press down on the latch on the DC input cable, as shown.

• Gently pull the two sections of the input cable apart.

• Plug the now-exposed EmPower connector into the

compatible DC output connector at hand.

STANDARDS &

CERTIFICATIONS

• FCC, CE

GENERAL

• Input: 1–16 V; max. 10 A

• Output: 16 V, 18 V, 19 V or

20 V; max. 5 A; 80 W

• Voltage/current settings

(max.): 16 V / 5 A; 18 V /

4.4 A; 19 V / 4.2 A; 20 V /

4 A

PHYSICAL

• Cable (combined length):

2.25 m (7.3 ft.)

• Dimensions: 58 x 34 x 115

mm (2.3 x 1.3 x 4.5 in.)

• Weight: 280.6 g (9.9 oz.)

PACKAGE CONTENTS

• Power Adapter

• 10 DC plug tips

• Reference guide

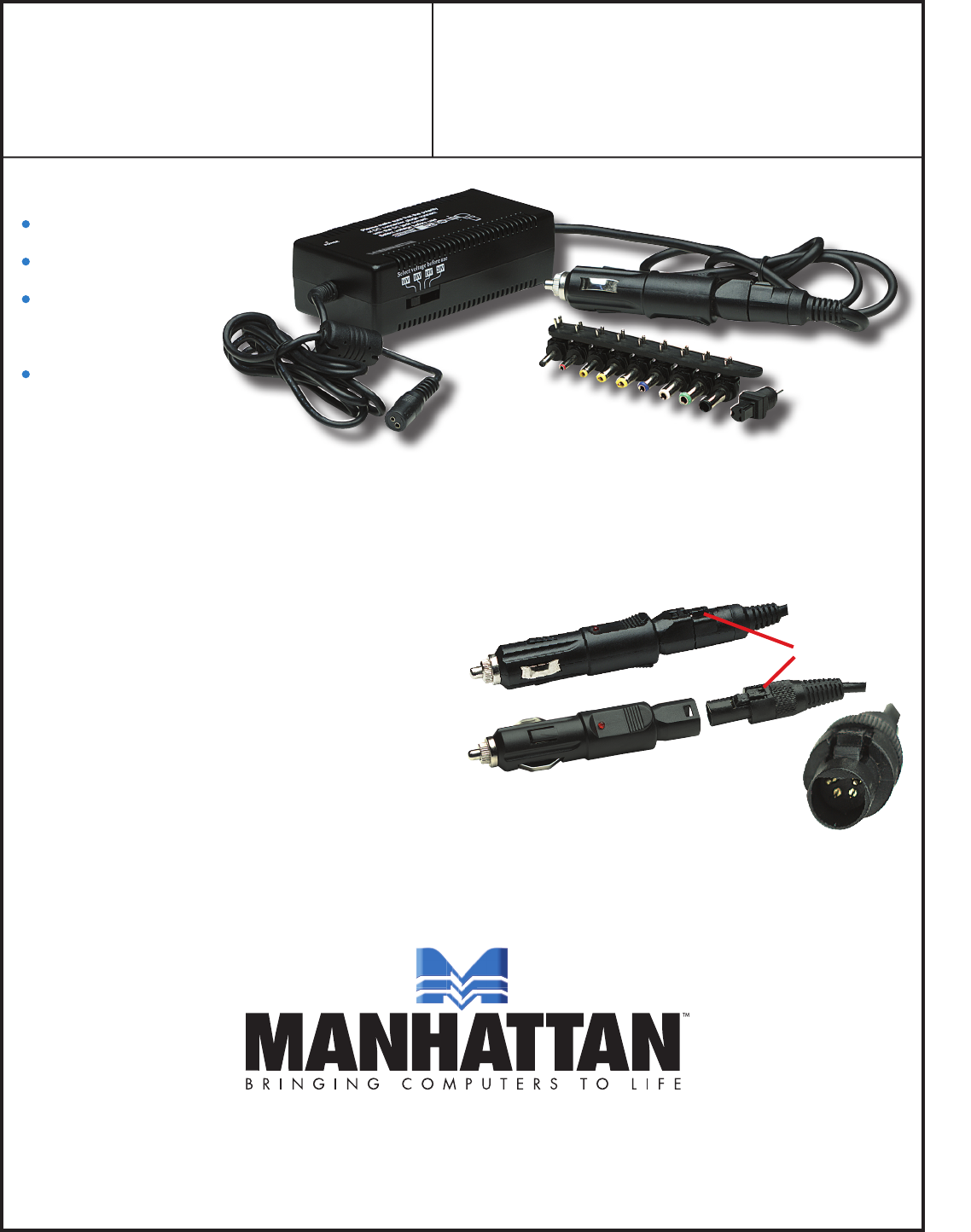

POWER ADAPTER

DC INPUT CABLE

EMPOWER

CONNECTOR

LATCH

Summary of content (2 pages)

PAGE 1
Power adapter REFERENCE GUIDE Model 100892 Thank you for purchasing this MANHATTAN ® Power Adapter, Model 100892. This device delivers power to most any portable device from a DC source, including EmPower and similar connections available on many airline flights. For a complete list of compatible notebook computers and a reference for airlines, see the back of this sheet or view the item’s datasheet at www.manhattan-products.com.
PAGE 2
operating cautions • Avoid placing/using in excessive heat or next to heat-sensitive materials. • Do not expose this device to moisture or excessive humidity. • Never use a DC plug tip not compatible with your portable device.
