Chapter 9: Sample Configurations
___________________________________________________________________
9-13
Master WAN IP Address
As in the previous sample, and IP address needs to be assigned to the WAN port for IP routing
to function across the Frame Relay network.

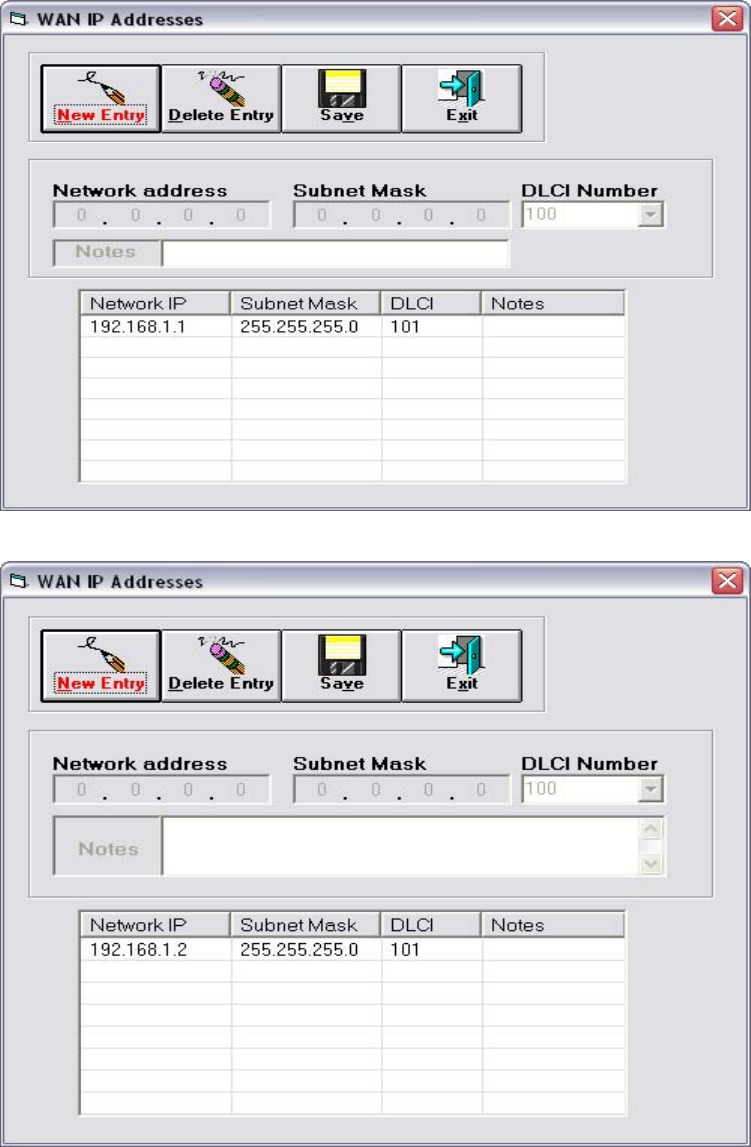

Magnum-A’s WAN IP Address
Magnum-B’s WAN IP Address
