Marshall Electronics V-R171-IMD-HDSDI High Definition LCD Monitor with In-Monitor Display Operating Instructions
Contents Product Overview.....................................................................................................................................................................................................................................4 Features......................................................................................................................................................................................................................................................

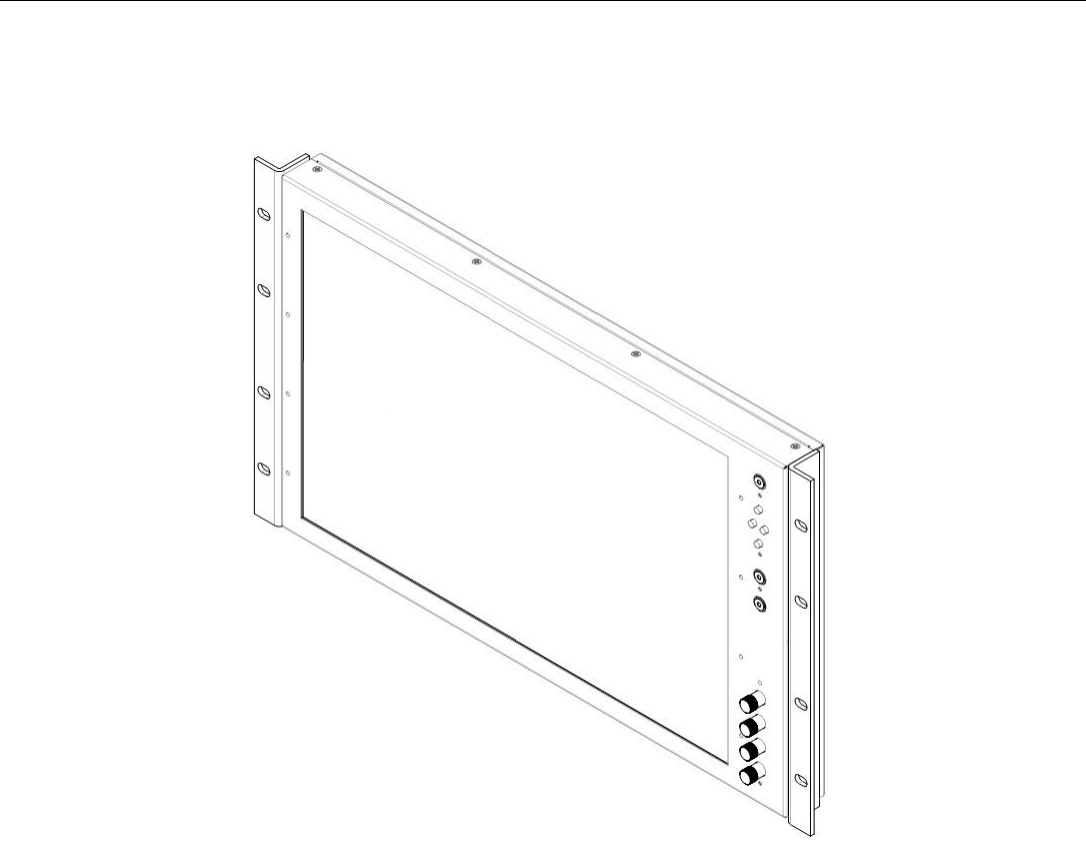

Product Overview The V-R171-IMD-HDSDI is a full resolution 17” LCD monitor with an HD-SDI input and In-Monitor Display functionality – a cost-effective "all-in-one" solution for post-production houses, broadcasters, and mobile units. This fully integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space.
Installation and Initial Setup ■ Unpacking Carefully unpack the V-R171-IMD-HDSDI monitor and verify that the following items are included: • V-R171-IMD-HDSDI Monitor • V-PS12-5V-1 Power Supply with 2-Pin Twist Lock Connector • Operating Instructions Inspect the unit for any physical damage that may have occurred during shipping. Should there be any damage, immediately contact Marshall Electronics at (800) 800-6608. If you are not located within the continental United States, call +1 (310) 333-0606.
Top and Front Panel Features Front View Power Button Turn the monitor off or on by pressing the power button. In the ON state, the LED above the power button will illuminate green. Menu Navigation Buttons Use the Menu, ↑, ↓, and Select buttons to display and navigate the on-screen menu (See Main Menu and Navigation – Page 9). User-Definable Function Buttons Two user-definable function buttons can be used for direct access to various settings.
Rear Panel Features HD-SDI Input and Output The V-R171-IMD-HDSDI has one HD-SDI input and one active loop-through output. Note: No more than 4 screens should be connected in one loop. RS-422/485 Serial Interface The RS-422/485 ports are used to remotely control the IMD or all V-R171-IMD-HDSDI features, using a variety of industry standard protocols. (Note: Connector/pin-out may need to be adapted depending on protocol and controlling device used. See pin-out details on page 22.
Compatible Input Formats The following SDI standards are supported by the V-R171-IMD-HDSDI: 525i, 625i 1035i/60, 1035i/59.94 1080i/60, 1080i/59.94, 1080i/50 1080psF/24, 1080psF/23.98 720p/60, 720p/59.94, 720p/50 On-Screen Menu STRUCTURE OVERVIEW Marker Setup Video Config System Config Main OSD Config IMD Config Service 8 Marker 16:9 Marker 4:3 Marker Backgrd Center Marker CTemp/Gamma Monochrome Blue Only Pixel to Pixel Aspect Ratio Curtain Color Gray Levels Off, 95%, 93%, 90%, 88%, 80%, 1.85:1, 2.
On-Screen Menu (continued) MAIN MENU AND NAVIGATION Access and navigate the main menu using the 4 menu buttons or the RotoMenu™ knob: Main Menu Using the menu buttons • Press the MENU button to enter the main menu. • Use the ↑ and ↓ buttons to scroll through the main menu or each submenu. • Press the SELECT button to enter a submenu or choose a setting. • Press the MENU button to exit the main menu, or return to the main menu from a submenu.
On-Screen Menu (continued) MARKER SETUP SUBMENU Use the Marker Setup submenu to select various types of markers and settings in 4:3, 16:9, or Full Screen modes. Marker Setup Submenu ■ 16:9 Markers Use this setting to superimpose one of 10 markers on the screen when in 16:9 or Full Screen mode. This setting is disabled when the aspect ratio is set to 4:3, or when Pixel-to-Pixel mode is enabled. Note that in Full Screen mode, markers are vertically “stretched” along with the picture to fit the 16:10 screen.
On-Screen Menu (continued) MARKER SETUP SUBMENU (continued) ■ 4:3 Markers Use this setting to superimpose one of 5 markers on the screen when in 4:3 mode. This setting is disabled when the aspect ratio is set to 16:9 or Full Screen, and when Pixel-to-Pixel mode is enabled.
On-Screen Menu (continued) VIDEO CONFIGURATION SUBMENU Use the Video Configuration submenu to select various video settings, such as color temperature, monochrome mode, or blue-only mode. Video Configuration Submenu ■ Ctemp/Gamma Use this setting to choose one of three color temperature / gamma presets: • • • • D55 (5500K) D65 (6500K) D93 (9300K) Linear (No gamma applied) ■ Monochrome Mode Use this setting to enable monochrome mode.
On-Screen Menu (continued) VIDEO CONFIGURATION SUBMENU (continued) ■ Pixel-to-Pixel Mode Use this setting to enable Pixel-to-Pixel mode.
On-Screen Menu (continued) VIDEO CONFIGURATION SUBMENU (continued) ■ Aspect Ratio Settings (continued) 00:00:00:00 00:00:00:00 00:00:00:00 IMD Text IMD Text Scaled 4:3 4:3 00:00:00:00 00:00:00:00 IMD Text 16:9 IMD Text Full Screen (16:10) ■ Curtain Color Use this setting to choose the default color displayed on the screen when no video input is present. Available colors are blue, red, green, white, and black.
On-Screen Menu (continued) SYSTEM CONFIGURATION SUBMENU Use the System Configuration submenu to control various system parameters. System Configuration Submenu ■ Gray Levels Use the Gray Levels menu option to view 32 levels of flat field gray. This feature is useful for color temperature comparison and calibration. ■ User-Definable Function Buttons Use the Function 1 and Function 2 menu items to define each function button on the front panel of the monitor.
On-Screen Menu (continued) OSD CONFIGURATION SUBMENU Use the OSD Configuration submenu to select a variety of information to be displayed on the screen. OSD Configuration Submenu ■ IMD State Use this setting to turn the IMD text display on or off. This setting affects both fixed string IMD text and remote IMD text commands (see IMD Configuration Submenu for details – page 19). ■ Status Display Use this setting to enable or disable status display.
On-Screen Menu (continued) OSD CONFIGURATION SUBMENU (continued) ■ OSD Tally Use this setting to choose how tally is displayed on the screen. The available OSD Tally options depend on the Tally Source selected in the IMD Configuration submenu (see page 19).
On-Screen Menu (continued) OSD CONFIGURATION SUBMENU (continued) ■ LED Tally Use this setting to enable or disable the LED Tally. When enabled, the yellow, red and green LEDs above each display will respond to tally commands, according to the Tally Source setting (see page 21). ■ Time Code Use this setting to enable time code display on the screen. Time code is de-embedded from the vertical ancillary data (VANC) within the SDI signal.
On-Screen Menu (continued) IMD CONFIGURATION SUBMENU ■ Overview The V-R171-IMD-HDSDI features an In-Monitor Display (IMD) with the ability to display on-screen text and tally in three colors. IMD text, color, and alignment can be assigned to each screen locally using menu options (see below). Alternately, IMD text and tally can be remotely controlled via the RS-422/485 serial interface using several industrystandard protocols, including TSL and Image Video.
On-Screen Menu (continued) IMD CONFIGURATION SUBMENU (continued) ■ IMD ID # The IMD ID # identifies each screen to the controlling device. When using the TSL protocol, the ID # of each screen should be manually set in conjunction with the controlling device. When using the Image Video protocol, the ID # may be set automatically by the controlling device, after each IMD is initially identified by IMD Name (see “IMD Name[S/N]” below). Available ID #s are 000-255.
On-Screen Menu (continued) IMD CONFIGURATION SUBMENU (continued) ■ Tally Source The V-R171-IMD-HDSDI tally (OSD and LED) can be controlled in a variety of different ways. Use the Tally Source setting to choose how tally is controlled: Standard Use the Standard setting to control tally via contact closure on the HD-15 tally interface. Image Video HW Use the Image Video HW setting to control Image Video tally states via contact closure on the HD-15 tally interface.
Specifications ■ PANEL ■ RS-422/485 SERIAL INTERFACE (RJ12) Screen Size Display Area (h x v) Aspect Ratio Pixels Color Depth Viewing Angle (h x v) Brightness Contrast Ratio Dot Pitch (h x v) Pixel Pitch (h x v) 17” Diagonal 367.20 x 229.50 mm 16:10 Native (4:3/16:9 Modes) 1920 x RGB x 1200 24-bit (16,777,216 Colors) 140° x 120° 2 400 cd/m 600:1 0.064 x 0.191 mm 0.191 x 0.191 mm ■ VIDEO INPUT/OUTPUT HD-SDI Input / Output Supports ITU-R BT.656, SMPTE 259M, 292M, 274M Protocols: Image Video, TSL v4.
Specifications (continued) Maintenance ■ Screen Cleaning Periodically clean the screen surface using ammonia-free cleaning wipes (Marshall Part No. V-HWP-K). A clean microfiber cloth can also be used using only non-abrasive and ammonia-free cleaning agents. Do not use paper towels. Paper towel fibers are coarse and may scratch the surface of the polycarbonate faceplate or leave streaks on the surface. Antistatic and fingerprint resistant cleaning agents are recommended.
Warranty Marshall Electronics warranties to the first consumer that this V-R171-IMD-HDSDI LCD monitor will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of one year from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
