________________General Description

The MAX3766 is a complete, easy-to-program laser

driver for fiber optic LAN transmitters, optimized for

operation at 622Mbps. It includes a laser modulator,

automatic power control (APC), and a failure indicator

with latched shutdown.

Laser modulation current can be programmed up to

60mA at 622Mbps. A programmable modulation tem-

perature coefficient can be used to keep the transmit-

ted extinction ratio nearly constant over a wide

temperature range. The modulator operates at data

rates up to 1.25Gbps at reduced modulation current.

APC circuitry uses feedback from the laser’s monitor

photodiode to adjust the laser bias current, producing

constant output power regardless of laser temperature

or age. The MAX3766 supports laser bias currents up

to 80mA.

The MAX3766 provides extensive laser safety features,

including a failure indicator with latched shutdown and

a smooth start-up bias generator. These features help

ensure that the transmitter output does not reach haz-

ardous levels. The MAX3766 is available in a compact

20-pin QSOP and dice.

________________________Applications

622Mbps ATM Transmitters

1.25Gbps Fiber Optic LAN Transmitters

1.25Gbps Ethernet Transmitters

____________________________Features

♦ 60mA Modulation Current

♦ 80mA Bias Current

♦ 200ps Edge Speed

♦ Modulation-Current Temperature Compensation

♦ Automatic Power Control

♦ Laser-Fail Indicator with Latched Shutdown

♦ Smooth Laser Start-Up

MAX3766

622Mbps LAN/WAN Laser Driver with

Automatic Power Control and Safety Shutdown

________________________________________________________________ Maxim Integrated Products 1

19-1249; Rev 1; 11/04

EVALUATION KIT

AVAILABLE

Ordering Information

*Dice are designed to operate over this range, but are tested and

guaranteed at T

= +25°C only. Contact factory for availability.

+Denotes lead-free package.

Typical Application Circuits appear at end of data sheet.

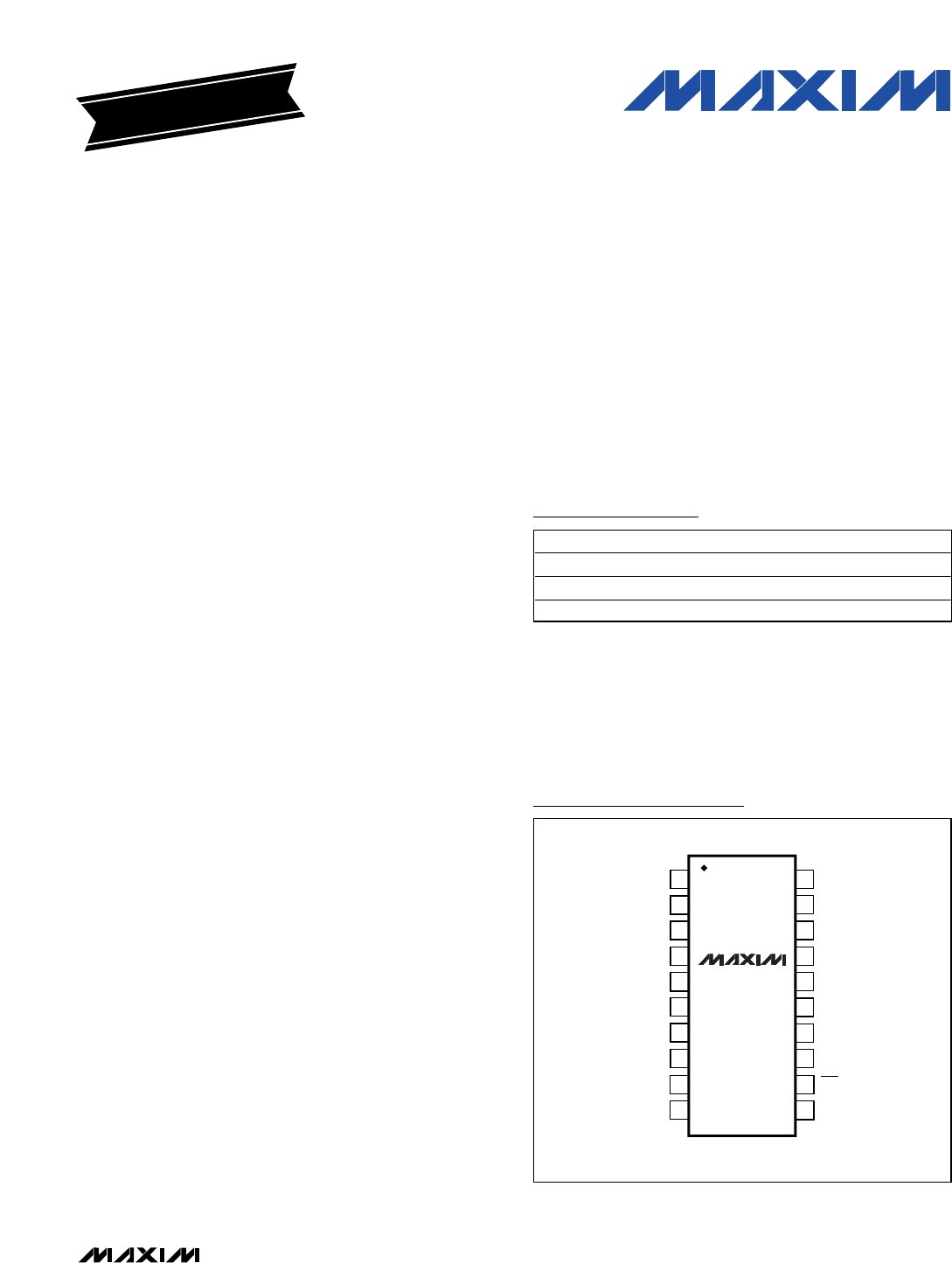

Pin Configuration

REF1

POWERSET

GNDOUTMOD

REF2

BIASMAX

TOP VIEW

BIAS

OUT+

OUT-

CCOUT

GND

IN+

IN-

GND

FAIL

SAFETYENABLE

MAX3766

QSOP

For free samples & the latest literature: http://www.maxim-ic.com, or phone 1-800-998-8800.

For small orders, phone 408-737-7600 ext. 3468.

PART TEMP RANGE PIN-PACKAGE

MAX3766EEP -40°C to +85°C 20 QSOP

MAX3766EEP+ -40°C to +85°C 20 QSOP

MAX3766E/D -40°C to +85°C Dice*
