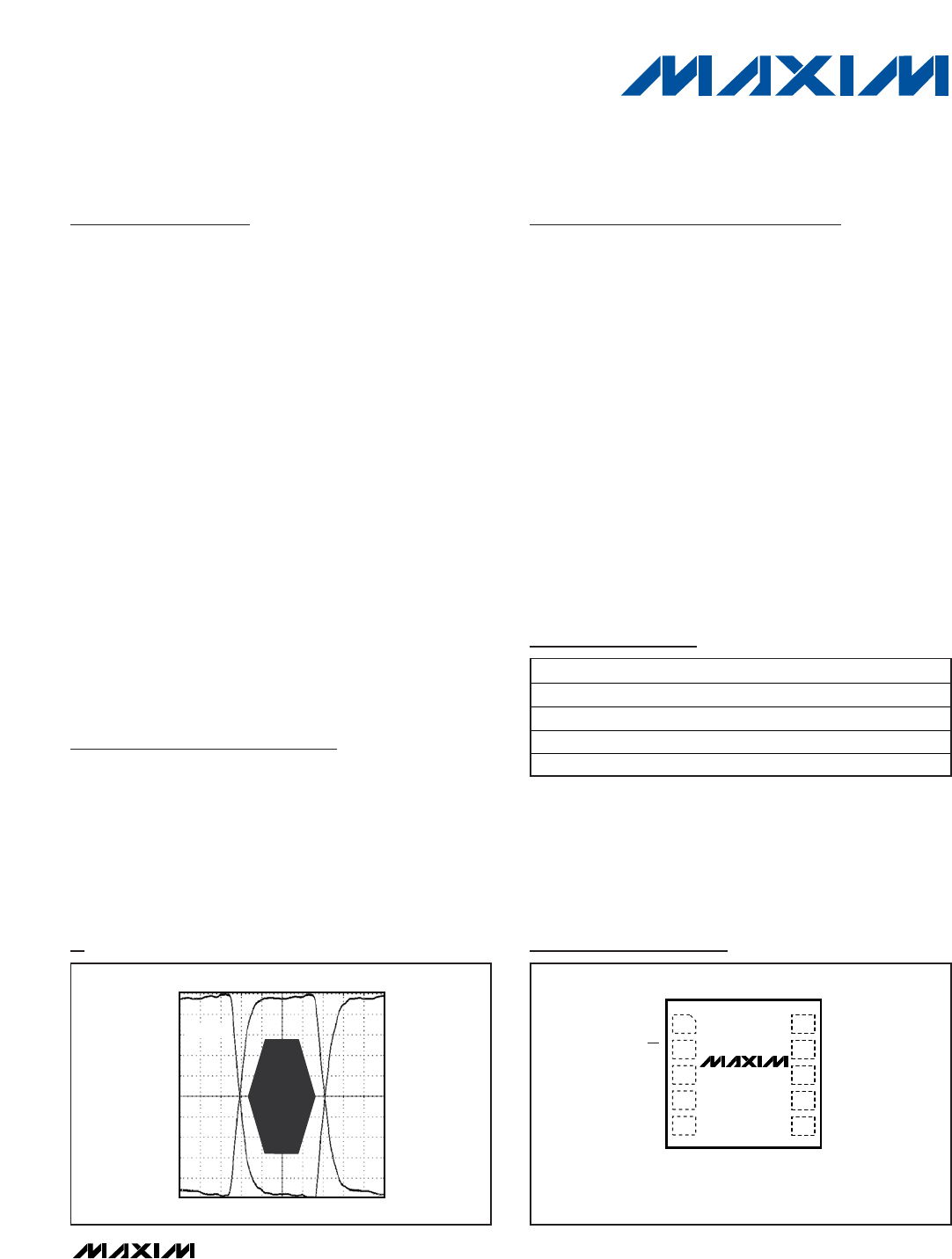

General Description

The MAX4906/MAX4906F/MAX4907/MAX4907F analog

switches combine the low on-capacitance (C

) and

low on-resistance (R

) necessary for high-perfor-

mance switching applications. These devices are

designed for USB 2.0 high-speed applications at

480Mbps. These switches will also handle all the

requirements for USB low- and full-speed signaling.

The MAX4906/MAX4906F feature two single-pole/dou-

ble-throw (SPDT) switches, and the MAX4907/

MAX4907F feature two single-pole/single-throw switches

(SPST). The MAX4907/MAX4907F have a low 7Ω (max)

on-resistance and 7pF (max) on-capacitance. These

devices are fully specified to operate from a single

+3.0V to +3.6V power supply and are protected against

a +5.5V short to COM1 and COM2. This feature makes

them fully compliant with the USB 2.0 specification of

+5.5V fault protection. These devices feature a low

threshold voltage and a +1.4V V

, permitting them to

be used with low-voltage logic. The MAX4906/

MAX4906F/MAX4907/MAX4907F operate at 300µA

(max) quiescent current and feature a shutdown input

to reduce the quiescent current to less than 2µA (max).

The MAX4906/MAX4906F/MAX4907/MAX4907F are avail-

able in space-saving, 2mm x 2mm µDFN packages and

operate over a -40°C to +85°C temperature range.

Applications

Features

♦ Fully Specified for a Single +3.0V to +3.6V

Power-Supply Voltage

♦ Low 4Ω (typ), 7Ω (max) On-Resistance (R

)

♦ MAX4907/MAX4907F Ultra-Low 4pF (typ),

7pF (max) On-Capacitance (C

)

♦ -3dB Bandwidth: 1GHz (typ)

♦ Low Bit-to-Bit Skew ≤ 100ps

♦ Shutdown Input Reduces Power Consumption

to 2µA (max)

♦ 3.3V, 1.8V, and 1.4V Logic Compatible

♦ COM

Analog Inputs Fault Protected Against

Shorts to USB Supply Rail Up to +5.5V

♦ Space-Saving Packages

8-Pin and 10-Pin, 2mm x 2mm µDFN Packages

MAX4906/MAX4606F/MAX4907/MAX4907F

High-/Full-Speed USB 2.0 Switches

________________________________________________________________ Maxim Integrated Products 1

Ordering Information

19-3797; Rev 2; 1/07

For pricing, delivery, and ordering information, please contact Maxim/Dallas Direct! at

1-888-629-4642, or visit Maxim’s website at www.maxim-ic.com.

Note: All devices operate over the -40°C to +85°C operating

temperature range.

Selector Guide appears at end of data sheet.

PART PIN-PACKAGE PKG CODE

MAX4906ELB 10 µDFN L1022-1

MAX4906FELB 10 µDFN L1022-1

MAX4907ELA 8 µDFN L822-1

MAX4907FELA 8 µDFN L822-1

Cell Phones

PDAs

Digital Still Cameras

GPS

Notebook Computers

Relay Replacements

USB Switching

Ethernet Switching

Video Switching

Bus Switches

T3/E3 Switches for

Redundancy Protection

V+

NC1

NC2

NO1COM1

GND

SHDN/EN

MAX4906

MAX4906F

μDFN

NO2COM2

TOP VIEW

Pin Configurations

EYE DIAGRAM

500ps/div

V+ =3.3V

BIAS = 9mA

f = 240MHz

USB 2.0

HIGH SPEED

TRANSMIT

TEMPLATE

NO1OUT

100mV/div

NO2OUT

Typical Operating Characteristics

Pin Configurations continued at end of data sheet.
