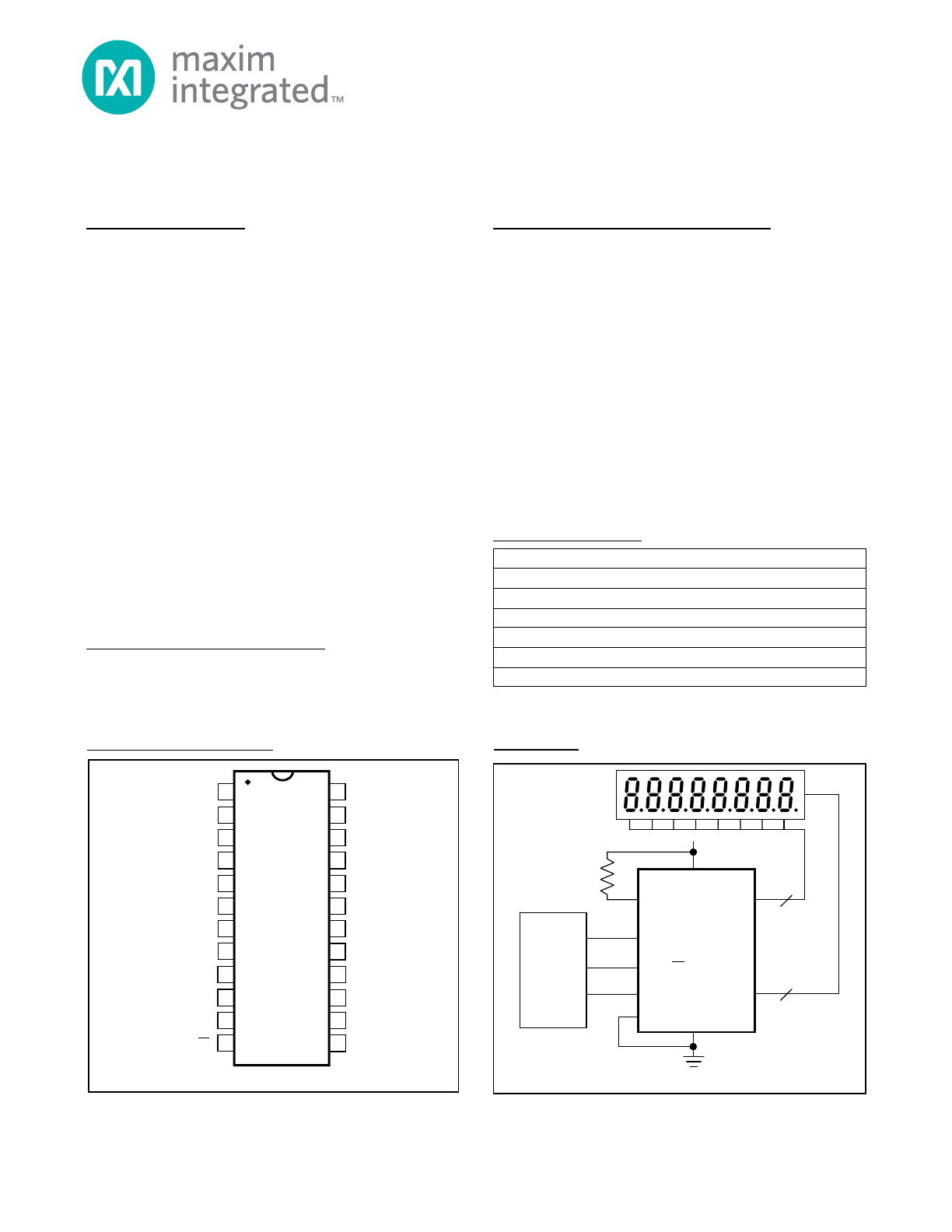

General Description
The MAX7219/MAX7221 are compact, serial input/out-
put common-cathode display drivers that interface
microprocessors (µPs) to 7-segment numeric LED dis-
plays of up to 8 digits, bar-graph displays, or 64 indi-
vidual LEDs. Included on-chip are a BCD code-B
decoder, multiplex scan circuitry, segment and digit
drivers, and an 8x8 static RAM that stores each digit.
Only one external resistor is required to set the seg-
ment current for all LEDs. The MAX7221 is compatible
with SPI™, QSPI™, and MICROWIRE™, and has slew-
rate-limited segment drivers to reduce EMI.
A convenient 4-wire serial interface connects to all
common µPs. Individual digits may be addressed and
updated without rewriting the entire display. The
MAX7219/MAX7221 also allow the user to select code-
B decoding or no-decode for each digit.
The devices include a 150µA low-power shutdown
mode, analog and digital brightness control, a scan-
limit register that allows the user to display from 1 to 8
digits, and a test mode that forces all LEDs on.
For applications requiring 3V operation or segment
blinking, refer to the MAX6951 data sheet.
Applications
Features
♦♦
10MHz Serial Interface
♦♦
Individual LED Segment Control
♦♦
Decode/No-Decode Digit Selection
♦♦
150µA Low-Power Shutdown (Data Retained)
♦♦
Digital and Analog Brightness Control
♦♦
Display Blanked on Power-Up
♦♦
Drive Common-Cathode LED Display
♦♦
Slew-Rate Limited Segment Drivers
for Lower EMI (MAX7221)
♦♦
SPI, QSPI, MICROWIRE Serial Interface (MAX7221)
♦♦
24-Pin DIP and SO Packages
Serially Interfaced, 8-Digit LED Display Drivers
( ) MAX7221 ONLY
8-DIGIT μP DISPLAY
DIG 0–DIG 7
MOSI
I/O
SCK
18
1
12
13
9
4
DIN
μP
ISET
9.53kΩ
8 DIGITS
8 SEGMENTS
+5V
19
SEG A–G,
SEG DP
CLK
LOAD (CS)
GND
V+
GND
MAX7219
MAX7221
Typical Application Circuit
Pin Configuration
24
23
22
21
20
19
18
17
1
2
3
4
5
6
7
8
DOUT
SEG D
SEG DP
SEG EGND
DIG 4
DIG 0
DIN
TOP VIEW
SEG C
V+
ISET
SEG GDIG 7
DIG 3
DIG 2
DIG 6
16
15
14
13
9
10
11
12
SEG B
SEG F
SEG A
CLK
( ) MAX7221 ONLY
LOAD (CS)
DIG 1
DIG 5
GND
DIP/SO
MAX7219
MAX7221
