MAX98089 Evaluation Kit (TQFN)
Evaluates: MAX98089 (TQFN)
6 ______________________________________________________________________________________
Detailed Description of Software
Graphical User Interface
The MAX98089 EV kit software uses a block diagram
interface to control all the functions of the MAX98089
audio codec. Click on blocks on the Block Diagram tab
(Figure 2) to control various functions of the IC. Each
block that represents multiple control options displays a
dialog box containing all available controls for that block.
Blocks that represent a single option toggle the enable
of that function when clicked. Blocks colored grey are
disabled while blocks colored blue are enabled. Click on
the MAX98089 Power button to enable/disable the IC.
The icon is shaded grey when the IC is in shutdown. The
icon is shaded blue when the IC is enabled.
Register Map Control Interface
To view the IC’s register settings, select the Control
Registers tab (Figure 3). The value of all control registers
is displayed and updated automatically when changes
are made using the graphical user interface (GUI). Click
on bit names or enter register values in hexadecimal for-
mat to manually program the IC’s registers. Changes to
the register map automatically update the GUI.

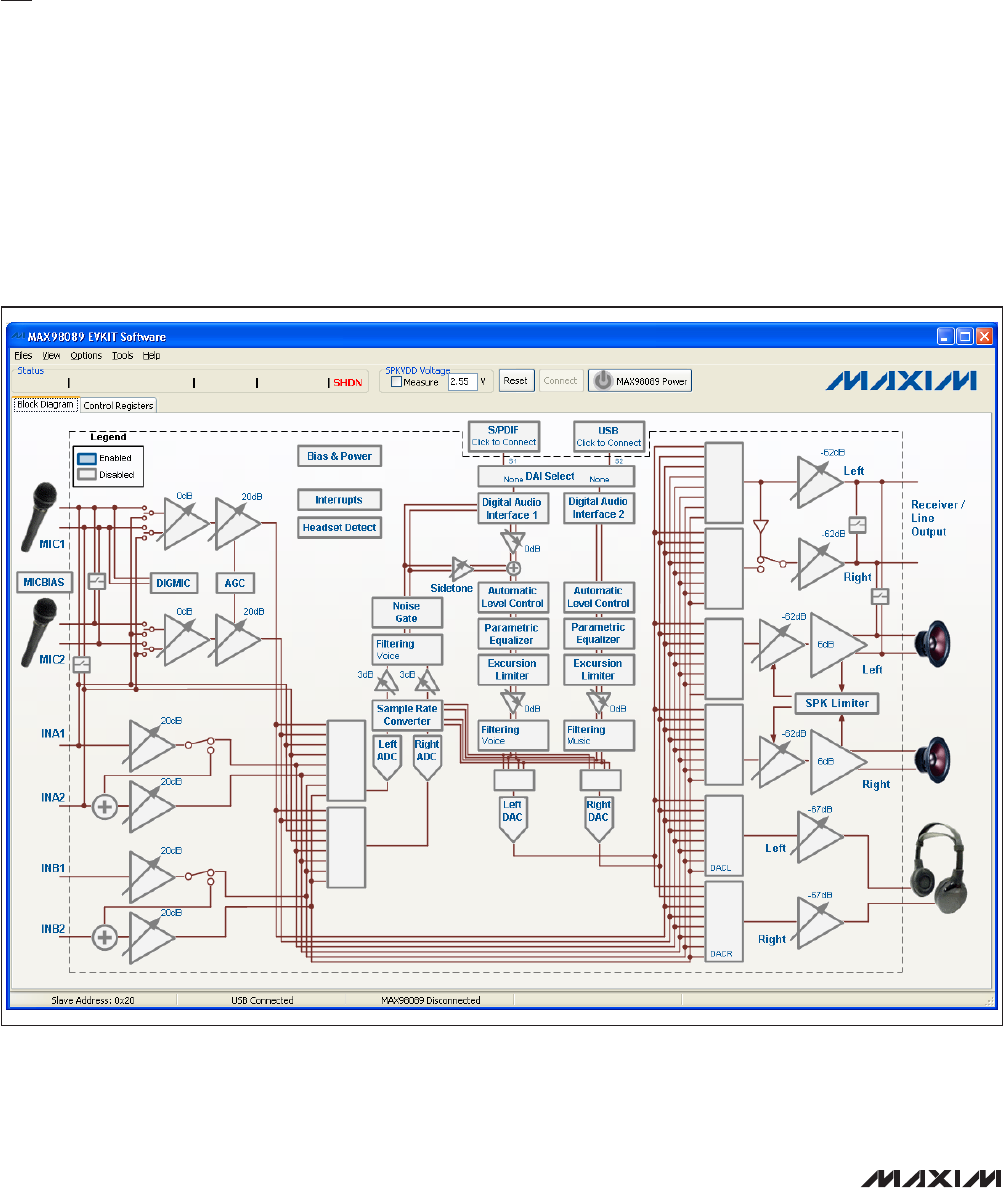

Figure 2. MAX98089 EV Kit Software Main Window (Block Diagram Tab)
