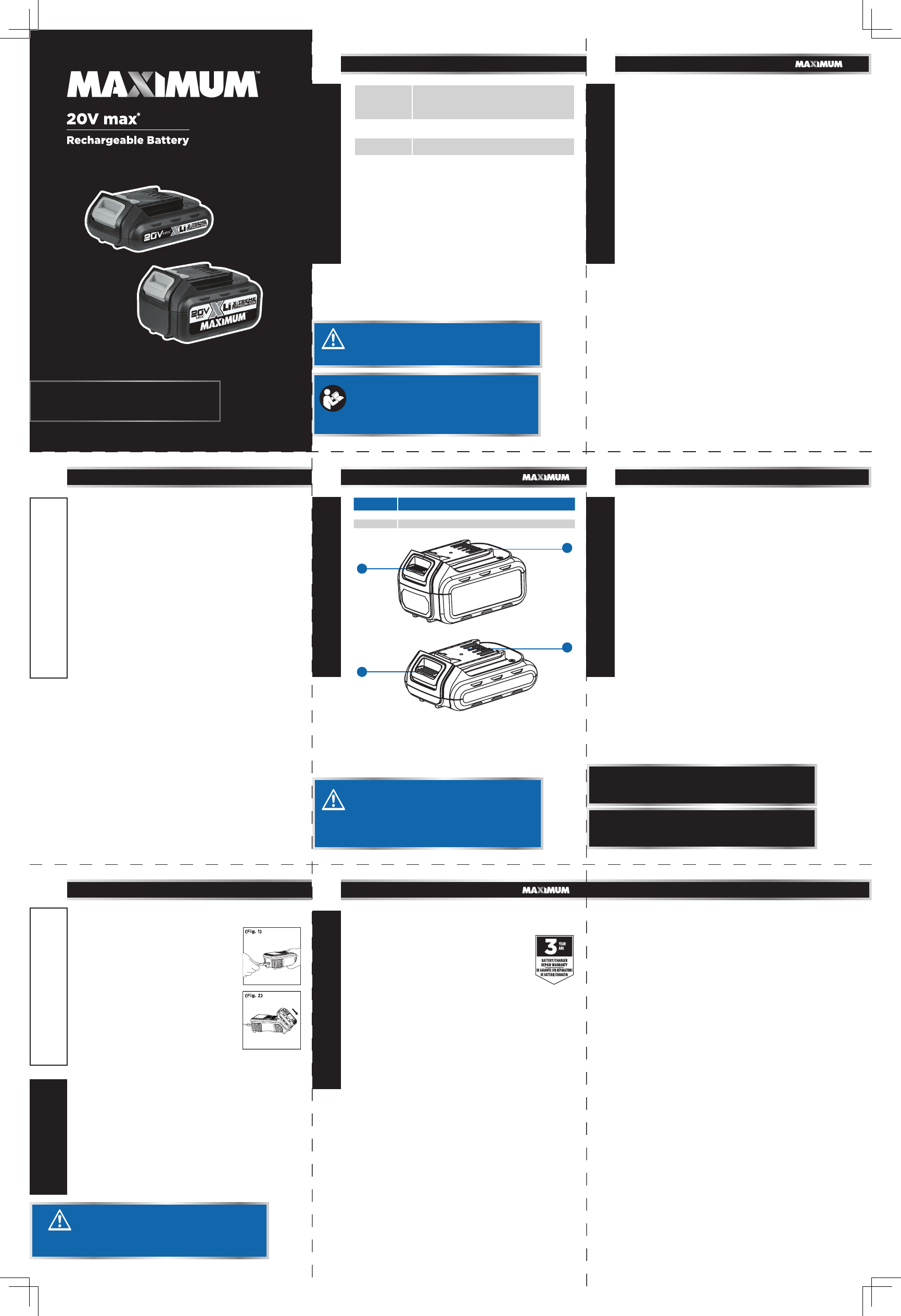

User Manual

IMPORTANT:
Please read this manual carefully before using
this product, and save it for reference.
INSTRUCTION
MANUAL
Model No. 054-3203-2/054-3206- 6
SPECIFICATIONSWARRANTY
BATTERY SAFETY
BATTERY SAFETYOPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
PARTS LIST
MAINTENANCE
model no. 054-3203-2 / 054-3206-6 | contact us 1-888-670-6682
model no. 054-3203-2 / 054-3206-6 | contact us 1-888-670-6682
model no. 054-3203-2 / 054-3206-6 | contact us 1-888-670-6682
model no. 054-3203-2 / 054-3206-6 | contact us 1-888-670-6682
2
5
8
4
7
3
6
POWER 054-3203-2: 20V max* (2.0 Ah) X-treme
lithium-ion
054-3206-6: 20V max* (4.0 Ah) X-treme
lithium-ion
BATTERY
CHARGE TIME
35/65 minutes
BATTERY
CHARGER
Dual-voltage battery charger
(054-3204-0; sold separately)
WEIGHT 13 oz (0.37 kg) and 1 lb 8 oz (0.67 kg)
*Maximum battery voltage without workload; with workload nominal
voltage is 18V.
NO. DESCRIPTION
1 BATTERY RELEASE BUTTON
2 ELECTRICAL CONTACTS
Maximum Canada will repair or replace the batteries/chargers which
have worn beyond reasonable use due to normal use of such items,
for a period of three (3) years from the date of original purchase.
Any defects with such battery and/or charger will be
subject to repair or replacement as determined by the
Service Provider. For proper servicing, both the battery
and charger will require diagnosis to evaluate warranty
requirements and therefore must both be provided to
the Service Provider at the time of service request.
The following is excluded from this 3-Year Battery/
Charger Repair Warranty:
a) Damages that are a result of abuse or misuse
b) Any wear and tear that does not affect the core function of the
product.
Made in China
Imported by
Mastercraft Canada Toronto, Canada M4S 2B8
• Knowyourpowertool.Readtheinstructionmanualcarefully.
Learnthetool’sapplicationsandlimitations,aswellasthe
specificpotentialhazardsrelatedtothistool.Following this rule
will reduce the risk of electric shock, fire, or serious injury.
• Battery-operatedtoolsdonothavetobepluggedintoan
electricaloutlet;theyarealwaysinoperatingcondition.Beaware
ofpossiblehazardswhennotusingyourbattery-operatedtoolor
whenchangingaccessories.Following this rule will reduce the risk
of electric shock, fire or serious personal injury.
• Donotplacebattery-operatedtoolsortheirbatteriesnearfireor
heat.This will reduce the risk of explosion and possible injury.
• Donotcrush,dropordamagethebattery.Donotuseabattery
orchargerthathasbeendroppedorreceivedasharpblow.A
damaged battery is subject to explosion. Properly dispose of a
dropped or damaged battery immediately.
• Batteriesventhydrogengasandcanexplodeinthepresence
ofasourceofignition,suchasapilotlight.To reduce the risk
of serious personal injury, never use any cordless product in the
presence of open flame. An exploded battery can propel debris
and chemicals. If skin is exposed to battery debris or chemicals,
flush with water immediately.
• Donotchargethebatteryinadamporwetlocation.Following
this rule will reduce the risk of electric shock.
• Forbestresults,yourbatteryshouldbechargedinalocation
wherethetemperatureisgreaterthan50°F(10°C)andlessthan
104°F(40°C).Donotstoreoutsideorinvehicles.
• Underextremeusageortemperatureconditions,batteryleakage
mayoccur.Ifliquidcomesincontactwithyourskin,wash
immediatelywithsoapandwater,thenneutralizewithlemon
juiceorvinegar.Ifliquidgetsinyoureyes,flushthemwithclean
waterforatleast10minutes,andthenseekimmediatemedical
attention.Following this rule will reduce the risk of serious
personal injury.
• Donotletgasoline,oils,petroleum-basedproducts,etc.come
incontactwithplasticparts.These substances contain chemicals
that can damage, weaken or destroy plastic.
• Savetheseinstructions.Refer to them frequently and use them
to instruct others who may use this tool. If you lend someone this
tool, ensure they read these instructions also to prevent misuse of
the product and possible injury.
charge. The power delivered to the tool will drop quickly when the
battery is at the end of its run time and needs to be charged. Charge
the battery as needed.
HOW TO CHARGE THE BATTERY
• Connecttheplugcabletothecharger,and
then plug into an appropriate outlet before
inserting battery. All three charging lights will
be on for two seconds and then off. (Fig. 1)
• Insert the battery into the charger, making sure it
is fully fully seated in the charger. (Fig. 2) During
the charging process, the charging lights will
indicate the charging status as follows:
- Less than 30% charged: all three charging
lights will blink in sequence.
- Less than 60% charged: one light will stay
on, while the other two lights will blink in
sequence.
- Over 60% charged: two lights will stay on,
while the remaining light will blink continuously.
- Fully charged: all three lights will remain on continuously.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are
susceptible to damage from various types of commercial solvents and
may be damaged by their use. Use clean cloths to remove dirt, dust,
oil, grease, etc.
MAINTENANCE AND STORAGE
Store your battery in a cool, dry place. As a general practice, it is best
to unplug battery chargers and remove batteries when not in use. No
battery damage will occur, however, if the charger and battery are
left plugged in.
CLEANING
Before cleaning or performing any maintenance, remove the battery
from the tool. For safe and proper operation, always keep the tool
and its ventilation slots clean. Always use only a soft, dry cloth to
clean your battery; never use any detergent or alcohol.
SAFETY INFORMATION
Carefully read this manual and all labels affixed to the battery before
using. Keep this manual available for future reference.
IMPORTANT
This battery should only be serviced by a qualified service
technician.
WORK AREA SAFETY
• Keeptheworkareacleanandwelllit.Cluttered and dark areas
invite accidents.
• Donotoperatepowertoolsinexplosiveatmospheres,suchas
inthepresenceofflammableliquids,gasesordust. Power tools
create sparks which may ignite the dust or fumes.
• Keepchildrenandbystandersawaywhileoperatingapower
tool.Distractions can cause you to lose control.
ELECTRICAL SAFETY
• Avoidbodycontactwithearthedorgroundedsurfacessuchas
pipes,radiators,rangesandrefrigerators.There is an increased
risk of electric shock if your body is earthed or grounded.
• Donotexposepowertoolstorainorwetconditions.Water
entering a power tool will increase the risk of electric shock.
BATTERY TOOL USE AND CARE
• Rechargeonlywiththechargerspecifiedbythemanufacturer.A
charger that is suitable for one type of battery may create a risk
of fire when used with another battery.
• Usepowertoolsonlywithspecificallydesignatedbatteries.Use
of any other battery may create a risk of injury and fire.
• Whenthebatteryisnotinuse,keepitawayfromothermetal
objectssuchaspaperclips,coins,keys,nails,screwsorother
smallmetalobjectsthatcanmakeaconnectionfromone
terminaltoanother.Shorting the battery terminals may cause
burns or a fire.
• Underabusiveconditions,liquidmaybeejectedfromthebattery;
avoidcontact.Ifcontactaccidentallyoccurs,flushwithwater.If
liquidcontactseyes,alsoseekmedicalhelp.Liquid ejected from
the battery may cause irritation or burns.
SERVICE
• Haveyourbatteryservicedbyaqualifiedrepairpersonusing
onlyidenticalreplacementparts.This will ensure that the safety
of the power tool is maintained.
SPECIFIC SAFETY RULES FOR BATTERY
• UsebatteryonlywithMAXIMUM
®
20Vchargerthatsold
togetherwiththeMAXIMUM
®
20VcordlesstoolsorMAXIMUM
®

multi-voltagecharger054-3204-0.
KNOW YOUR BATTERY
Before attempting to use the battery, familiarize yourself with all of
its operating features and safety requirements.
BATTERY PROTECTION
The battery circuitry protects the battery from extreme temperature,
over-discharge, and over-charge. To protect the battery from
damage and prolong its life, the battery circuitry will turn off the
battery if it becomes overloaded or if the temperature becomes too
high during use. This may happen in extremely high-torque, binding,
and stalling situations. This intelligent system will shut down your
battery if its operating temperature exceeds 176°F (80°C) and will
begin normal operation when it returns to 32°F (0°C)–122°F (50°C).
COLD WEATHER OPERATION
This lithium-ion battery will provide optimal performance in
temperatures between 32°F (0°C) and 104°F (40°C). When the
battery is very cold, it may “pulse” for the first minute of use to
warm itself. Put the battery on a tool and use the tool in a light
application. After about a minute, the battery will have warmed itself
and will operate normally.
WHEN TO CHARGE THE BATTERY
The lithium-ion battery can be charged at any time and will not
develop a “memory” if it is charged after only a partial discharge.
It is not necessary to completely discharge the battery before
recharging. Remove the battery from the tool and recharge it when
it is convenient or when it is not in use.
To check the remaining power of the battery, you need to install it to
a tool that matches. Press the switch of the tool; the power indicator
on the tool will show the remaining power.
It is recommended that the battery be brought up to full charge
before starting a big job or using it for an extended period of time.
This lithium-ion battery delivers fade-free power; the only time it is
necessary to charge it is when the battery has reached the end of its
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating
instructions. Read all instructions and follow them
with use of this product.
WARNING!
To reduce the risk of injury, read the
instruction manual.
WARNING!
Remove the product and any accessories from the
package. Inspect the battery carefully to make sure no
breakage or damage occurred during shipping.
Do not discard the carton or any packaging material
until all parts have been examined.
WARNING!
To reduce the risk of injury, always unplug the charger
and remove the battery from the charger before
performing any maintenance. Never disassemble the
battery.
TM
TM
TM
NOTICE:A significantly reduced run time after fully
charging the battery indicates that the battery is near the
end of its usable life and must be replaced.
NOTICE: This lithium-ion battery is shipped partially
charged. Before using it the first time, fully charge the
battery.
1
1
2
2
