RAINWATCH

INSTALLATION

30 Samuel Barnett Boulevard

New Bedford, MA 02745

(508) 995-2200

PROPER INSTALLATION IS IMPORTANT. IF YOU NEED ASSISTANCE, CONSULT A CONTRACTOR, ELECTRICIAN

OR TELEVISION ANTENNA INSTALLER (CHECK WITH YOUR LOCAL BUILDING SUPPLY, OR HARDWARE STORE

FOR REFERRALS). TO PROMOTE CONFIDENCE, PERFORM A TRIAL WIRING BEFORE INSTALLATION.

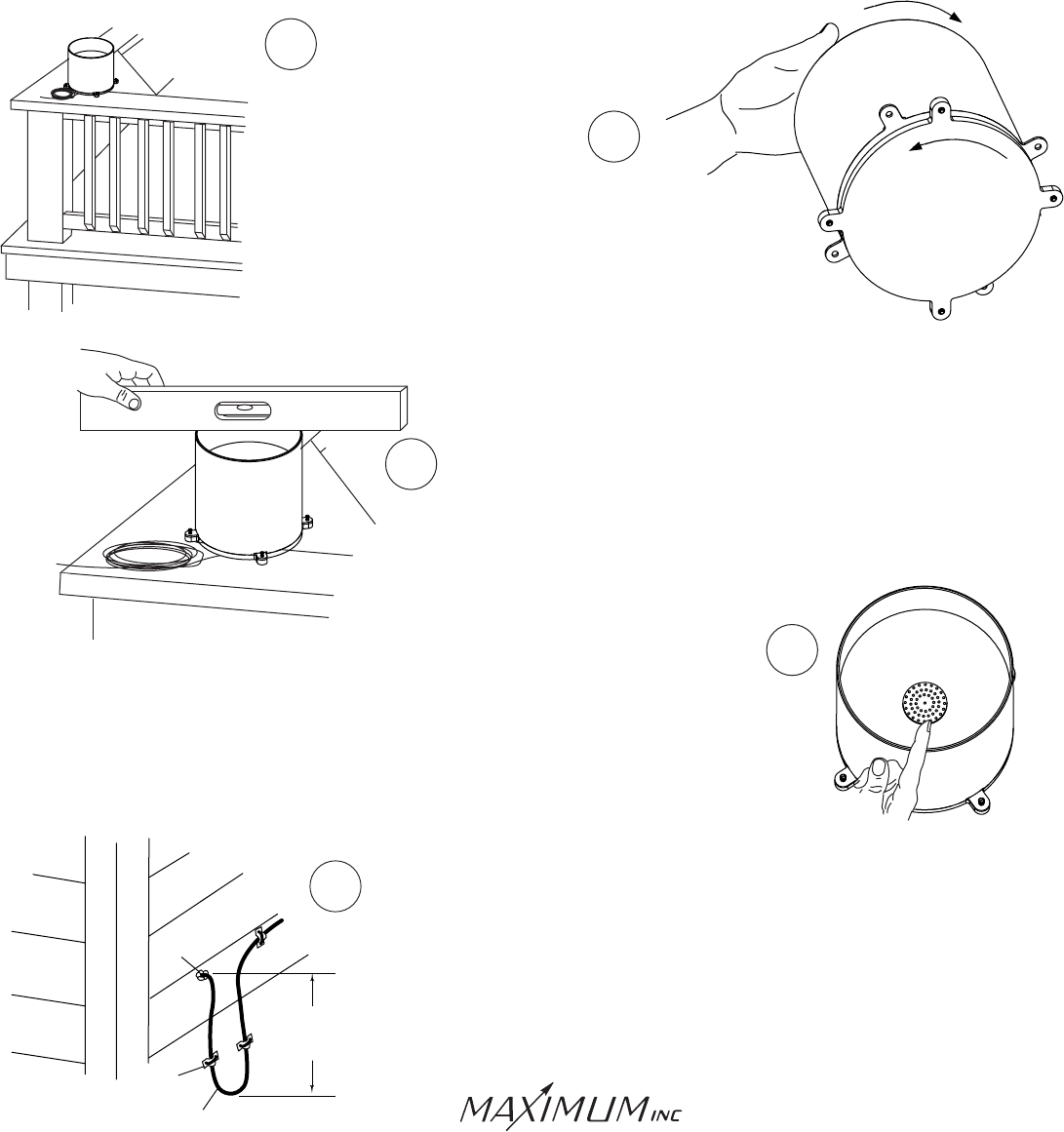

Select a level surface

in an open area above

ground to mount the

collector. Some examples

would be a deck or tree

stump.

Rotate the collector

to remove the cover from

the base. Taped to the base

you will find the necessary

mounting screws to secure the

base to your chosen mounting surface.

If the collector is not mounted absolutely level

your readings will be incorrect.

Make sure that the plastic screen is in position in the collector.

Run the wire into the house using insulated cable clips. Form

a drip loop where the wire enters the house and caulk the feed

thru hole when done

DRIP

LOOP

CAULK

CABLE

CLIP

MIN
