Build Custom Power Solutions
with Standard Modular Product
BayTech’s MSP Modular Sensor Power
system provides reliable power distribution
with maximum flexibility for receptacle se-
lection and power input.
User friendly interface for monitoring Cur-
rent, Voltage, Watts, Temperature, Humid-
ity, and KW Hour Meter.
Standard Features
High and Low Density Models
120/208/AC Single Phase
208/400VAC Three Phase
20,30,50,60 Amp Support
HTTPS,SSH,SSL Access
Radius, TACACS Authentication
Tool less Mounting
Unique Features
Modular Design
All Circuit Breakers Monitored
KW Hour Meter
Current, Voltage and Watt Meters
Integrated Locking C13 Receptacle (Optional)
Reliable PCB Power Distribution
Circuit Metering-MSP

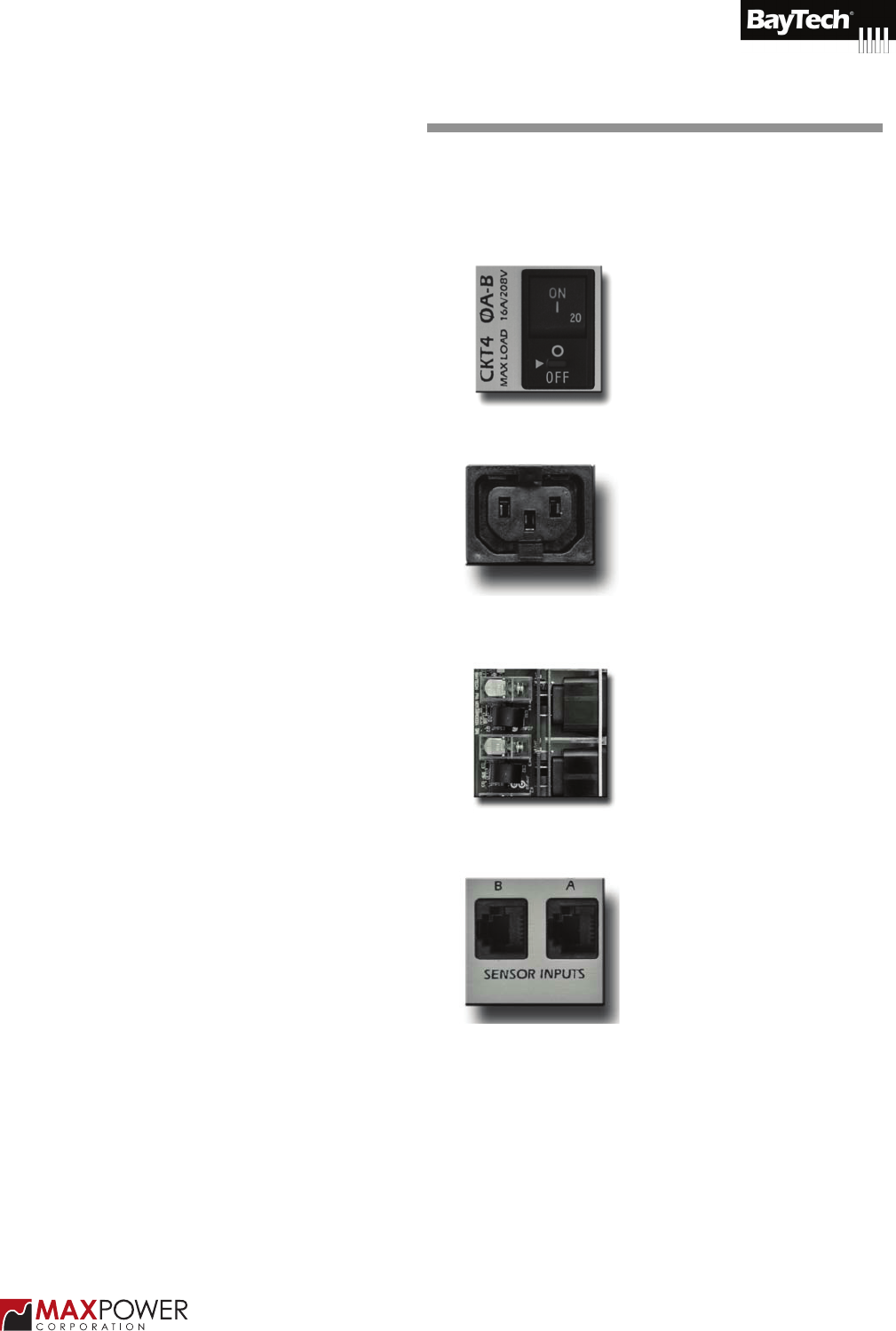

Unique Features
All Circuit Breakers Monitored
High Retention C13 Receptacle
Reliable PCB Power Distribution
Integrated Sensor Inputs
Most metered power solu-
tions only monitor input
power. BayTech monitors
all circuit breakers and re-
ports via SNMP when
thresholds met.
Reliable integrated locking
clips assure power cord
retention. Unique to the
industry and does away
with nuisance wire clips.
ISD’s (Insulation Displace-
ment) connectors are faulty
and un-reliable! All Bay-
Tech power solutions use
reliable PCB power distri-
bution.
Eliminate the need for ex-
tra environmental monitor-
ing devices. All BayTech
power solutions offer two
ports for external tempera-
ture and humidity probes.
Bay Technical Assoc. Inc. 5239 A Avenue Long Beach, MS 39560 Tel: [phone] Fax: [phone] [e-mail]
230 Yuma St., Denver, CO 80223 / Tel [phone] / Fax [phone] / www.maxpowercorp.com
©2012 MaxPower Corporaon. All rights reserved. (04/13/12)
MSP Series
MODULAR SENSORED POWER (CIRCUIT MONITORED)
