User's Manual

NOMAD™ - LK3A-2
OPERATING INSTRUCTIONS
PAGE 7 of 9

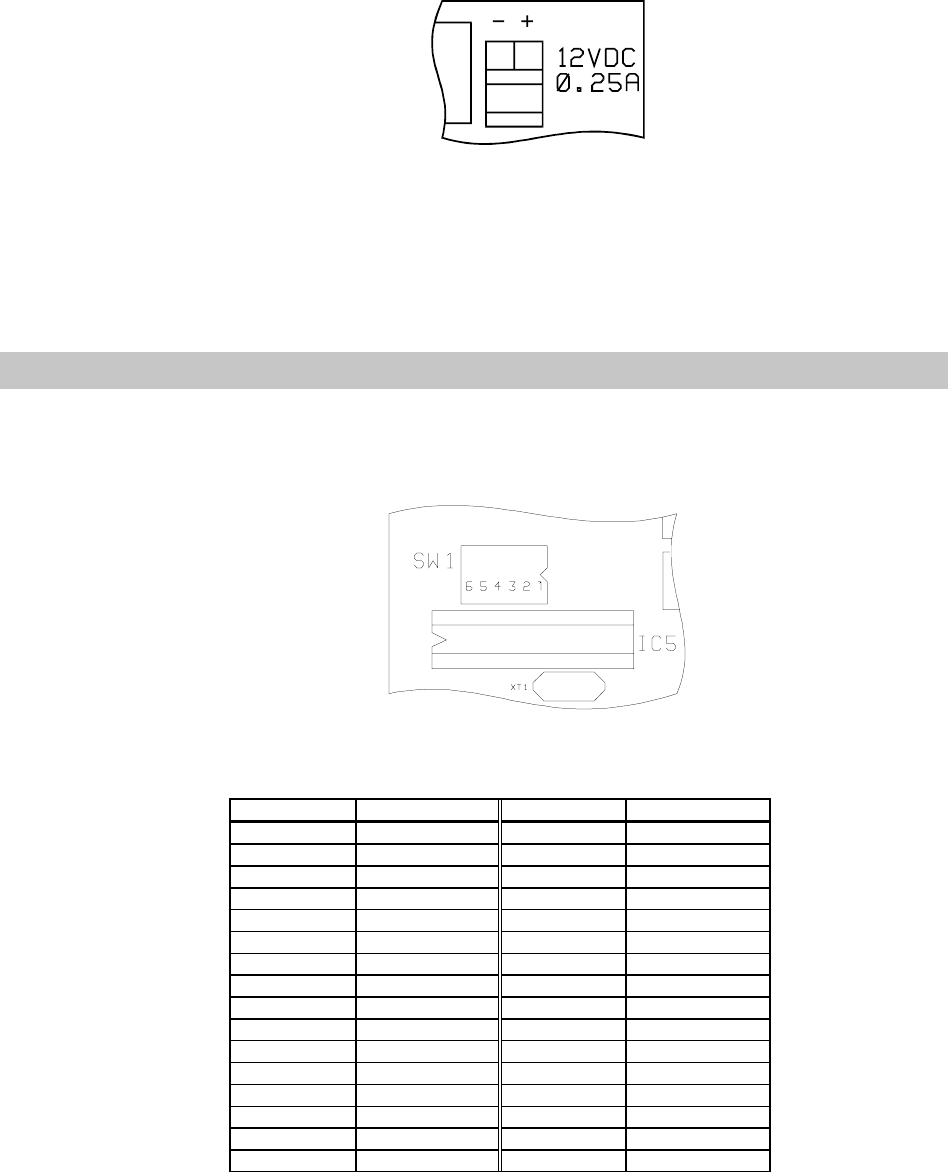

Take care on 12V DC powered units to observe the correct polarity.
Cables connected to the link unit should be fixed so that any moisture
running down the cable does not is directed away from the link unit. All
glands must be tightened - any unused glands should be fitted with a
blanking plug.
3.3 NETWORK IDENTIFIER
To enable a link unit to be identified from other link units on the network a
unique number is assigned to it using switch SW1
Set the switch as follows (0 is down, 1 is up)
Identifier Setting Identifier Setting
0 000000 16 010000
1 000001 17 010001
2 000010 18 010010
3 000011 19 010011
4 000100 20 010100
5 000101 21 010101
6 000110 22 010110
7 000111 23 010111
8 001000 24 011000
9 001001 25 011001
10 001010 26 011010
11 001011 27 011011
12 001100 28 011100
13 001101 29 011101
14 001110 30 011110
15 001111
