User`s guide

Motherboard User’s Guide

Pin Signal

1CD IN L

2GND

3GND

4CD IN R

Here is a list of CD1 pin assignments.

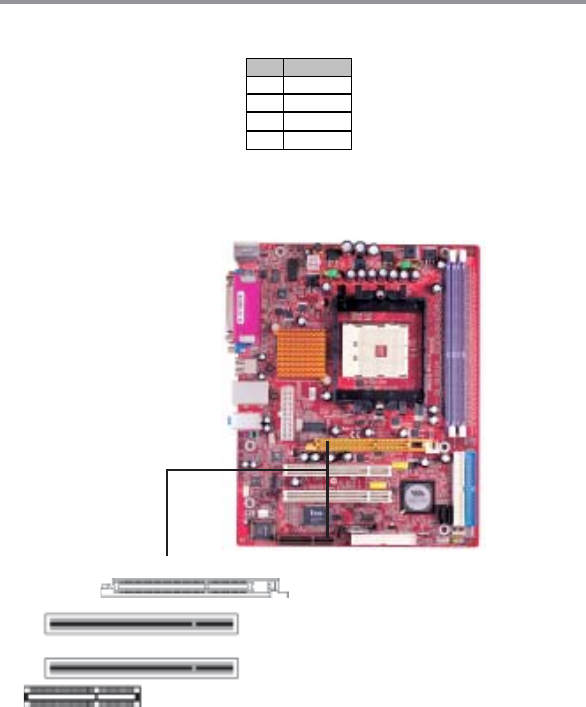

Expansion Slots

This motherboard has one AGP, one CNR and two 32-bit PCI slots.

Follow the steps below to install an AGP/CNR/PCI expansion card.

1. Locate the AGP, CNR or PCI slots on the mainboard.

2. Remove the blanking plate of the slot from the system chassis.

3. Install the edge connector of the expansion card into the slot. Ensure the

edge connector is correctly seated in the slot.

AGP1

PCI1

PCI2

CNR1
