PMD Series
PMDseriesDS.007
Sales +1 801.208.4722 · Customer Service +1 801.208.4700 · Fax [phone] · [e-mail] · www.MeritSensor.com
1600 W. Merit Parkway · South Jordan, Utah · 84095 · USA
FEATURES
Range 5 to 50 psi (0.34 to 3.5 bar; 34.5
to 345 KPa)
Type Absolute, gage
Media Clean, dry air and non-corrosive gases
Packaging Trays
Customization Sensitivity, resistance, bridge, constraint, etc.
BENEFITS
Performance Enjoy best-in-class performance due to Merit’s
proprietary Sentium technology.
Cost Save money over time with high-performing die
Security Feel confident doing business with an experienced
company backed by a solid parent company
(NASDAQ: MMSI)
Speed Get to market quickly with creative and
flexible solutions.
Service Experience prompt, personal, and
professional support.

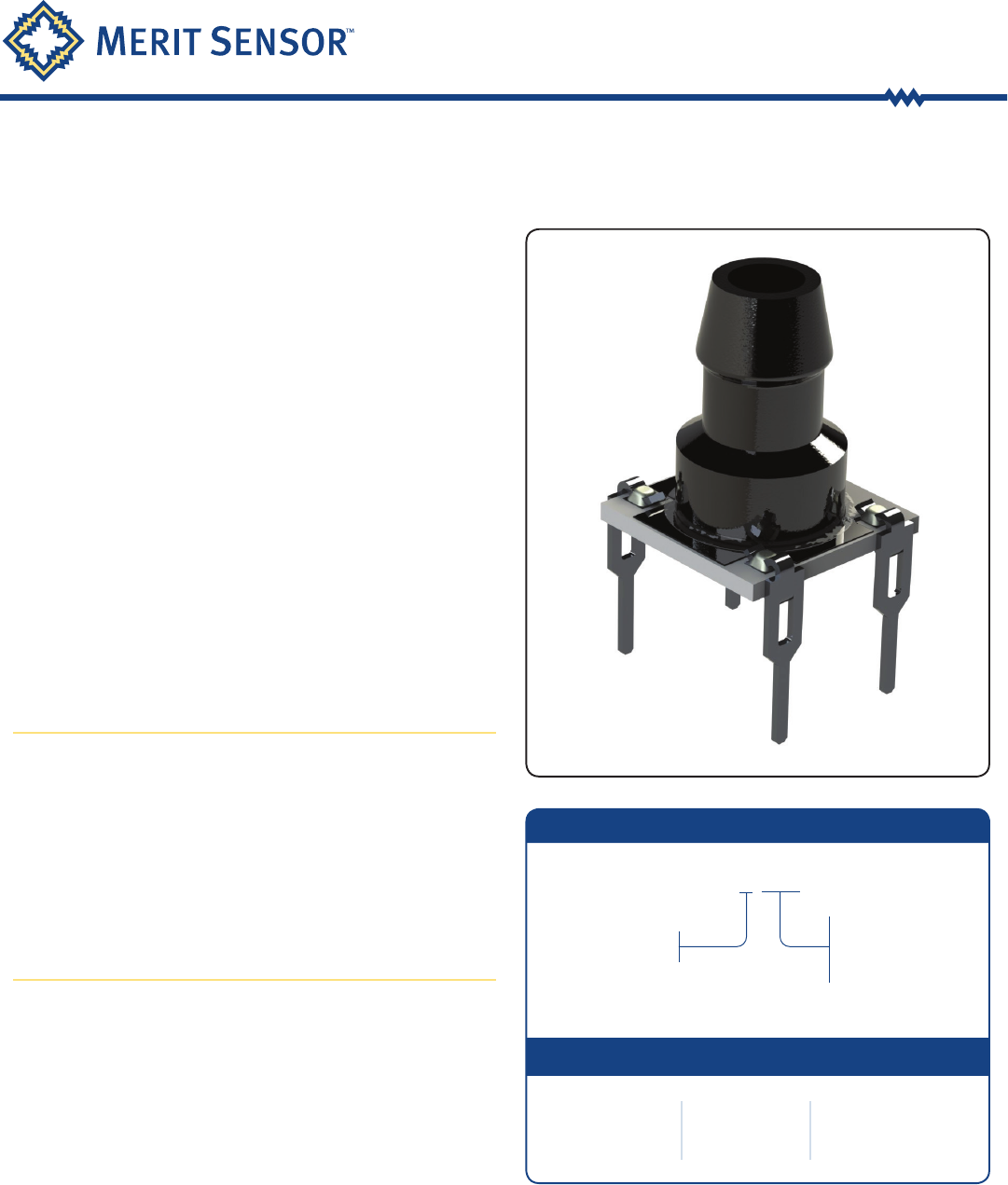

The PMD Series is a thru-hole mountable pressure monitoring device suitable
for low to medium pressure applications.
COMPANY: Merit Sensor is a leader in piezoresistive
pressure sensing and partners with clients to create high
performing solutions for a variety of applications and industries.
SENTIUM: Merit Sensor products incorporate a proprietary
Sentium
®
technology developed to provide a
best-in-class operating temperature range (-40°C to 85°C)
and superior stability.
TECHNOLOGY: Merit Sensor utilizes a piezoresistive
Wheatstone bridge in a design that anodically bonds glass
to a chemically etched silicon diaphragm. All products
are RoHS compliant.
CAPABILITIES: Merit Sensor designs, engineers, fabricates,
dices, assembles, and tests products from a state-of-the-art
facility near Salt Lake City, Utah.
PMD Series Part Number Configurator
PMD Series Standard Part Numbers
PMDX-XXX
Constraint
A = Absolute
G = Gage
PSI
005 = 5 psi
015 = 15 psi
030 = 30 psi
050 = 50 psi
Example: PMDG-005 is gage, 5psi
PMDG-005
PMDG-015
PMDG-030
PMDA-030
PMDG-050
PMDA-050
