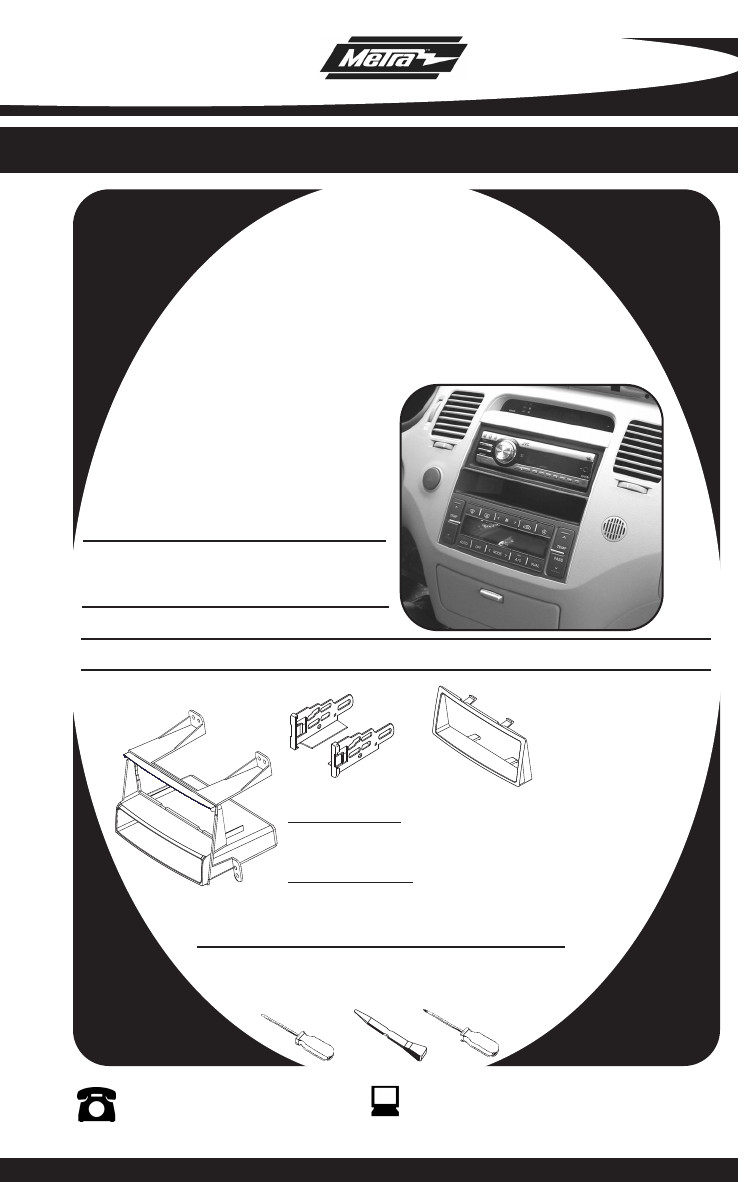

INSTALLATION INSTRUCTIONS FOR PART 99-7322

99-7322

APPLICATIONS

Hyundai Azera

2006-2010

KIT FEATURES

• DIN Radio Provision with Pocket

• ISO Radio Provision with Pocket

A) Radio Housing • B) ISO Brackets • C) Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

Small Flat Blade Screwdriver/ Panel Removal Tool

• Phillips Screwdriver

1-800-221-0932

www.metraonline.com

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• 70-1004 - Hyundai/KIA harness 2004-up

• 70-7303 - Hyundai/KIA harness 2009

Antenna Adapter:

• 40-KI10 KIA antenna adapter 2007-up

Summary of content (8 pages)

PAGE 1
INSTALLATION INSTRUCTIONS FOR PART 99-7322 APPLICATIONS Hyundai Azera 2006-2010 99-7322 KIT FEATURES • DIN Radio Provision with Pocket • ISO Radio Provision with Pocket KIT COMPONENTS A) Radio Housing • B) ISO Brackets • C) Trim Plate B A C WIRING AND ANTENNA CONNECTIONS (Sold Separately) Wiring Harness: • 70-1004 - Hyundai/KIA harness 2004-up • 70-7303 - Hyundai/KIA harness 2009 Antenna Adapter: • 40-KI10 KIA antenna adapter 2007-up TOOLS REQUIRED: Small Flat Blade Screwdriver/ Panel Removal Tool •
PAGE 2
99-7322 TABLE OF CONTENTS Dash Disassembly - Hyundai Azera 2006-2010. . . . . . . . . . . . . . . . . . . . . . . . . . . 1,2 Kit Assembly - DIN Radio Provision . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - ISO Radio Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE 3
99-7322 DASH DISASSEMBLY HYUNDAI AZERA 2006-2010 A 1 Disconnect the negative battery terminal to prevent an accidental short circuit. 2 Remove (1) Phillips head screw from bottom right hand corner then unclip and let the panel below the steering column hang. (Figure A) 3 Remove (1) Phillips screw from the lower left side of the radio panel behind panel removed in step 2. (Figure B) B 4 Unclip and remove the trim panel above the radio that extends across the dash to the passenger side.
PAGE 4
99-7322 DASH DISASSEMBLY HYUNDAI AZERA 2006-2010 D 5 Remove (3) Phillips screws from the top of the radio trim panel. (Figure D) 6 Remove (2) Phillips screws from under radio trim panel. (Figure E) 7 Unclip and remove the entire trim panel surrounding the radio. (Figure F) 8 Remove (4) Phillips screws securing the radio. Unplug and remove radio. (Figure G) E Continue to kit assembly.
PAGE 5
99-7322 KIT ASSEMBLY DIN RADIO PROVISION *Note: Refer also to the instructions included with the aftermarket radio. A 1 Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs outward. (Figure A) 2 Slide the aftermarket radio into the cage and secure. (Figure B) Continue to final assembly.
PAGE 6
99-7322 KIT ASSEMBLY ISO DIN RADIO PROVISION *Note: Refer also to the instructions included with the aftermarket radio. A 1 Mount the ISO Brackets to the aftermarket radio using the screws supplied with the radio. (Figure A) 2 Slide the radio into the radio opening until the side clips snap into place. (Figure B) 3 Snap the trim plate into the Radio Housing. (Figure B) Continue to final assembly.
PAGE 7
99-7322 FINAL ASSEMBLY FINAL ASSEMBLY A (A) Strip wire ends back 1/2" B B) Twist ends together C) Solder D) Tape C D 1 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) 2 Re-connect the negative battery terminal and test the unit for proper operation.
PAGE 8
99-7322 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV.
