INSTALLATION INSTRUCTIONS FOR PART 95-9009

* 86-9001 Head Unit Removal Tool • Flat Blade Screwdriver Or Panel Removal Tool

www.metraonline.com

KIT FEATURES

APPLICATIONS

VW Touareg/Touareg2

2004-2010

• Double DIN radio provision

• Stacked ISO unit provision

A) Radio Housing • B) Double DIN Brackets • C) Double DIN Trim Plate

KIT COMPONENTS

TOOLS REQUIRED:

95-9009

Note: Two sets of the head unit removal tools are recommended for

easier removal of factor head unit.

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Wiring Harness:

• 70- 9003 - VW Toureg Harness 2004-up

Antenna Adapter:

• 40-EU55 Amplified VW Antenna Adapter

1-800-221-0932

Summary of content (8 pages)

PAGE 1

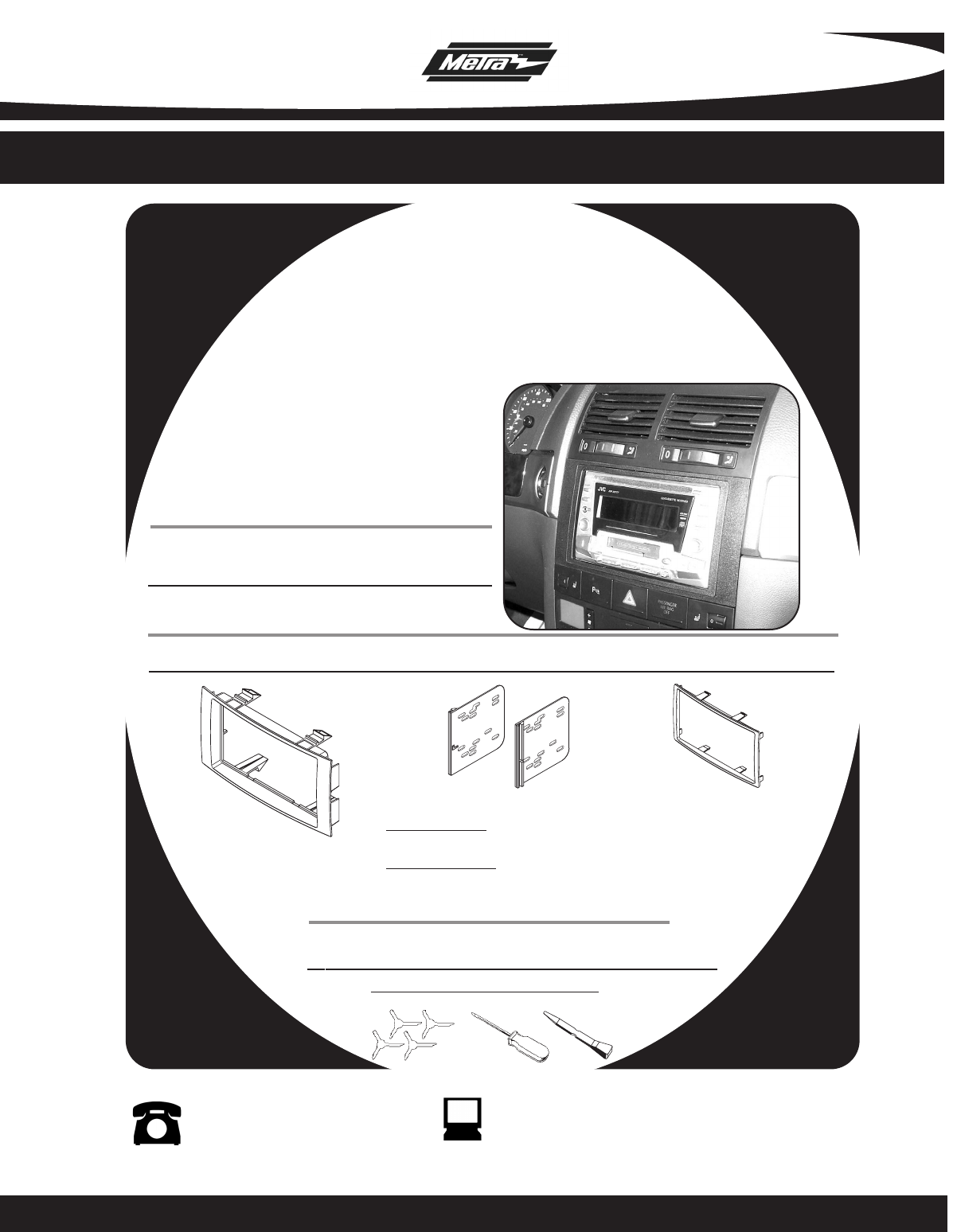

INSTALLATION INSTRUCTIONS FOR PART 95-9009 APPLICATIONS VW Touareg/Touareg2 2004-2010 95-9009 KIT FEATURES • Double DIN radio provision • Stacked ISO unit provision KIT COMPONENTS A) Radio Housing • B) Double DIN Brackets • C) Double DIN Trim Plate A B C WIRING AND ANTENNA CONNECTIONS (Sold Separately) Wiring Harness: • 70- 9003 - VW Toureg Harness 2004-up Antenna Adapter: • 40-EU55 Amplified VW Antenna Adapter TOOLS REQUIRED: * 86-9001 Head Unit Removal Tool • Flat Blade Screwdriver Or Panel Remov
