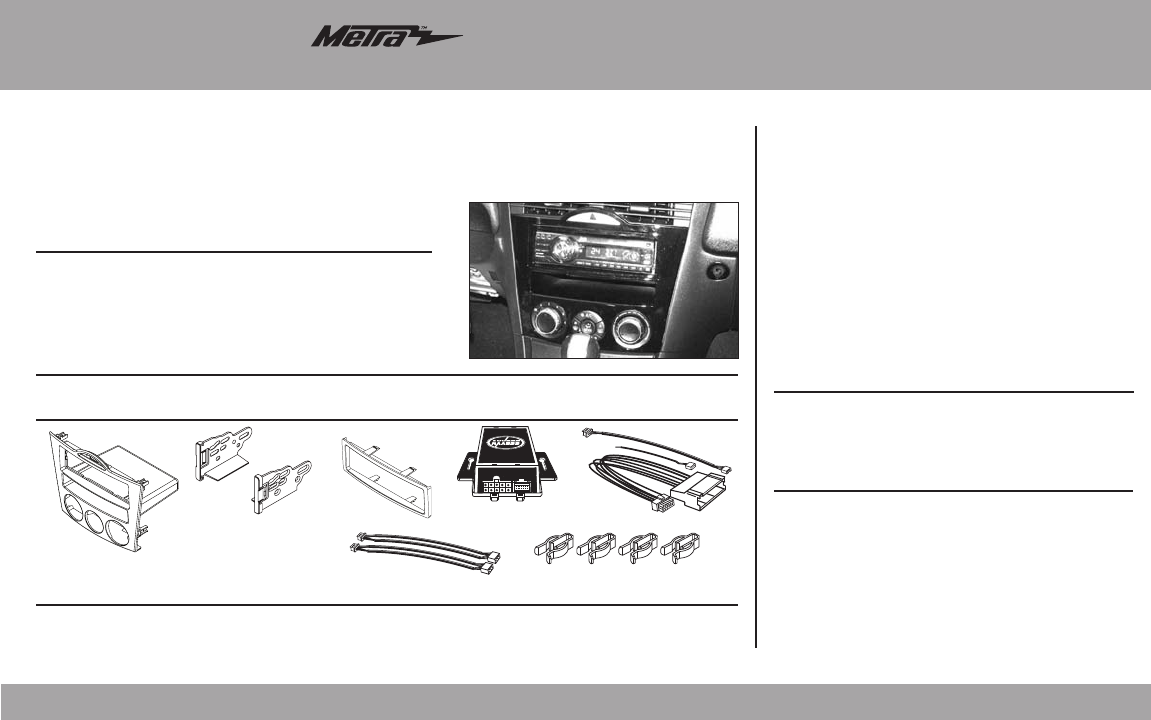

APPLICATIONS

METRA. The World’s best kits.

™

metraonline.com1-800-221-0932

REV. 2/20/2014 INST99-7510

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

INSTALLATION INSTRUCTIONS FOR PART 99-7510

Table of Contents

• DIN radio provision with pocket

• ISO radio provision with pocket

• Two finishes available: 99-7510 = Black,

99-7510HG = Gloss Black

• A) Radio/Climate control housing • B) ISO Radio brackets • C) Trim ring • D) Interface

• E) Wiring harnesses • F) (2) Climate control extension harnesses • G) (4) Plastic panel clips

KIT FEATURES

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • Harness included

Antenna Adapter: • Not required

• Panel removal tool • Phillips screwdriver

• Socket set • Small flat blade screwdriver

• Cutting tool

TOOLS REQUIRED

Mazda RX-8 2004-2008

99-7510, 99-7510HG

B C D E

F G

Dash Disassembly

– Mazda RX-8 2004-2008 ....................................2-3

Kit Assembly

– DIN radio provisions with pocket .......................... 4

– ISO radio provisions with pocket

– Interface Installation ..........................................5-6

Summary of content (16 pages)

PAGE 1
INSTALLATION INSTRUCTIONS FOR PART 99-7510 APPLICATIONS Table of Contents Mazda RX-8 2004-2008 99-7510, 99-7510HG Dash Disassembly – Mazda RX-8 2004-2008....................................2-3 Kit Assembly KIT FEATURES • DIN radio provision with pocket • ISO radio provision with pocket • Two finishes available: 99-7510 = Black, 99-7510HG = Gloss Black – DIN radio provisions with pocket .......................... 4 – ISO radio provisions with pocket – Interface Installation..............................
PAGE 2
99-7510 FM1 877 Dash Disassembly AC 5. Remove (2) Phillips screws from the bottom of the radio/climate control panel. (Figure F) 1. Unscrew the shift knob counter clockwise to remove. (Figure A) 2. Unclip and remove the shifter trim panel. (Figure B) 3. Remove (2) Phillips screws from the bottom of the ashtray assembly then unclip and remove the assembly. (Figure C) FM1 877 6. Unsnap radio/climate control panel including radio chassis. Unplug and remove panel and chassis.
PAGE 3
99-7510 Dash Disassembly 8. Remove (4) screws securing the radio chassis to the radio/climate control panel. (Figure I) 9. Remove (6) screws securing the climate controls from the radio/ climate control panel. Unplug and remove the climate controls. (Retain the screws and climate controls for re-use during kit assembly.) (Figure J) FM1 877 10. Remove (17) screws securing the circuit board to the radio/climate control panel to access the plug for the hazard switch assembly. (Figure K) 11.
PAGE 4
99-7510 Kit Assembly Kit Preparation DIN radio provision with pocket 1. Cut the top (2) mounting locations off of the climate controls to provide clearance for the aftermarket radio. (Figure A) 1. Slide the DIN cage into the radio/ climate control housing and secure by bending the metal locking tabs outward. (Figure A) 2. Secure the climate control to the radio/climate control housing using (4) of the factory screws removed in step (10) of the dash disassembly. (Figure B) 2.
PAGE 5
99-7510 Kit Assembly Interface Installation Warning: failure to insert the HVAC cables into the correct location will cause damage to the interface and make the display and HVAC controls not function properly ISO radio provision with pocket 1. Mount the ISO Brackets to the radio using the screws supplied with the radio. (Figure A) 1. Attach the (2) climate control extension harnesses to the temperature control cable and the fan control cable on the factory climate control. 2.
PAGE 6
99-7510 Interface Installation Note: start the vehicle and hold the “AUTO” button for 10seconds to program the kit to function in auto climate control equipped vehicles. 6. When using the Nav features of the interface you will need to connect the 2-pin harness and run the 2 wires to the OBDII connector and connect them in the position shown. (Figure C) 7. The following wires on the 10-pin harness are for the aftermarket radios that have navigation built in: a.
PAGE 7
TILT FM1 877 AC OPEN 99-7510 Display Customization *Note: Refer also to the instructions included with the aftermarket radio. 5. To change the Hour press the rear defrost button to the right of the A/C Mode button. 1 0 6. To change the minute press the A/C button at the top of the A/C Mode button. 2 3 7. At any time if you do not press any buttons for 5-seconds the display will save and return to the default screen and the climate control buttons will return to their normal configuration.
PAGE 8
INSTALLATION INSTRUCTIONS FOR PART 99-7510 KNOWLEDGE IS POWER REV. 2/20/2014 INST99-7510 Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits.™ 1-800-221-0932 metraonline.
PAGE 9
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7510 APLICACIONES Índice Mazda RX-8 2004-2008 99-7510, 99-7510HG Desmontaje del tablero – Mazda RX-8 2004-2008....................................2-3 Ensamble del kit CArACtEríStICAS dEL kIt • Provisión de radio DIN con bolsillo • Provisión de radio de montaje ISO con bolsillo • Dos acabados disponibles: 99-7510 = Negro, 99-7510HG = Negro brillante – Provisión de radio DIN con bolsillo........................
PAGE 10
99-7510 FM1 877 AC Desmontaje del tablero 1. Desatornille el contador de la perilla de la palanca de velocidades hacia la izquierda para quitarlo. (Figura A) de 10 mm del costado del soporte del radio. (Figura E) 5. Quite los (2) tornillos Phillips de la parte inferior del panel de control del radio/clima. (Figura F) 2. Desenganche y quite el panel de moldura de la palanca de velocidades. (Figura B) 3.
PAGE 11
99-7510 Desmontaje del tablero 10. Quite los (17) tornillos que sujetan la tarjeta de circuito al panel de control de radio/clima para acceder al enchufe del ensamble del interruptor de las luces intermitentes. (Figura K) 11. Quite los (2) tornillos que sujetan el interruptor de las luces intermitentes al panel de control del radio/clima. Desconecte y quite el interruptor de las luces intermitentes.
PAGE 12
99-7510 Ensamble del kit Preparación del kit Provisión de radio DIN con bolsillo 1. Corte las (2) ubicaciones superiores de montaje de los controles del clima para dar espacio para el radio de mercado secundario. (Figura A) 1. Deslice la reja DIN en la carcasa del radio/control de clima y sujétela doblando hacia afuera las lengüetas de bloqueo de metal. (Figura A) 2.
PAGE 13
99-7510 Ensamble del kit Instalación de la interfase Advertencia: si no se insertan los cables HVAC en el lugar correcto, se ocasionará daño a la interfase y los controles de HVAC no funcionarán correctamente. Provisión de radio ISO con bolsillo 1. Monte los soportes ISO en el radio con los tornillos que vienen con el radio. 1. Una los (2) arneses de extensión del control de clima al cable de control de temperatura y el cable de control del abanico en el control de clima de fábrica. 2.
PAGE 14
99-7510 Instalación de la interfase Nota: encienda el vehículo y mantenga presionado el botón “AUTO” durante 10 segundos para programar el kit para que funcione en vehículos equipados con control de clima automático. 6. Al utilizar las funciones de navegación de la interfase deberá conectar el arnés de 2 pins y correr los 2 cables al conector OBDII y conectarlos en la posición que se muestra. (Figura C) 7.
PAGE 15
TILT FM1 877 AC OPEN 99-7510 Personalización de la pantalla *Nota: También consulte las instrucciones incluidas con el radio de mercado secundario. 1 0 5. Para cambiar la hora, presione el botón de deshielo trasero a la derecha del botón de modo A/C. 6. Para cambiar los minutos, presione el botón de A/C arriba del botón de modo A/C. 2 3 7.
PAGE 16
INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 99-7510 EL CONOCIMIENTO ES PODER sus habilidades deIS instalación y KMejore NOWLEDGE POWER REV. 2/20/2014 INST99-7510 Enhance your installation and fabrication skills by fabricación inscribiéndose en la escuela de enrolling in the most recognized and respected dispositivos electrónicos móviles más reconocida mobile electronics school in our industry. y respetada de nuestra industria. en Log onto www.installerinstitute.
