METRA. The World’s best kits.

™

metraonline.com1-800-221-0932

REV. 1/12/2015 INST99-8101

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

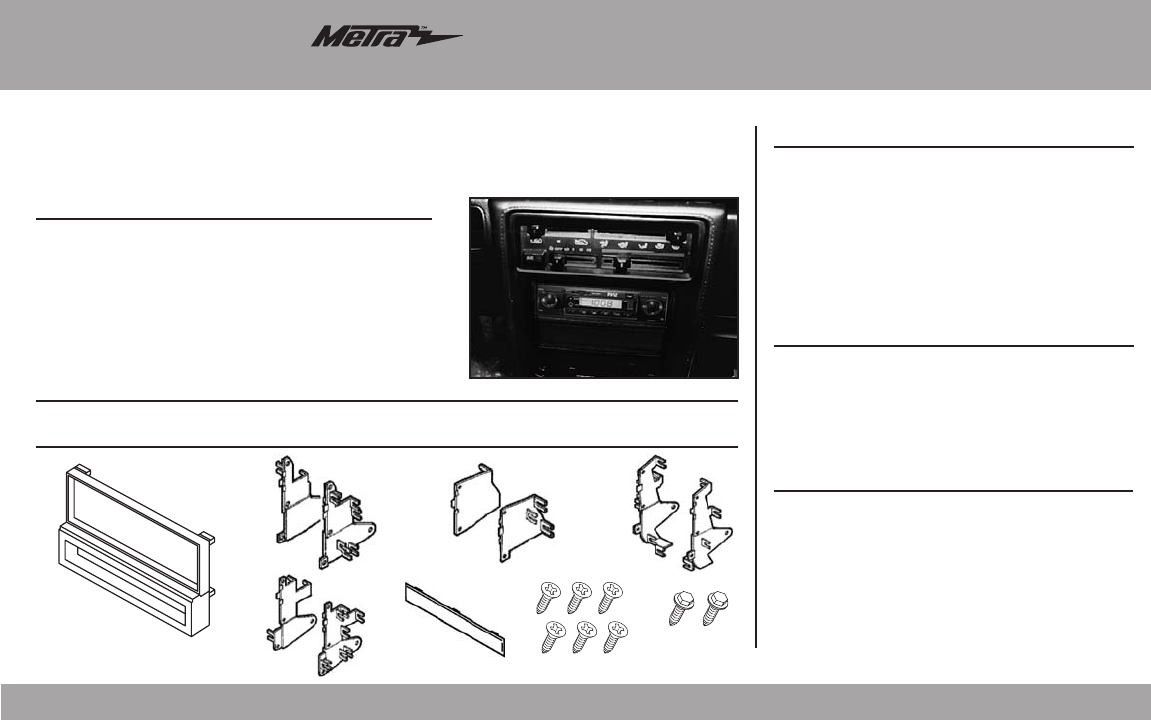

Installation instructions for 99-8101

• A) Radio housing • B) Bracket set #1 • C) Bracket set #2 • D) Bracket set #3

• E) Bracket set #4 • F) Equalizer dummy plate • G) (6) #6 Phillips screws • H) (2) 3/8” Hex-head screws

KIT COMPONENTS

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• 70-1761 Toyota

Antenna Adapter:

• Not required

• Panel removal tool • Phillips screwdriver

• Socket wrench

TOOLS REQUIRED

A B

• DIN radio provision

• Pocket provision

KIT FEATURES

Toyota 1984-2004

99-8101/CF-952TY

E F G H

C D

Summary of content (16 pages)

PAGE 1
Installation instructions for 99-8101 Toyota 1984-2004 99-8101/CF-952TY WIRING & ANTENNA CONNECTIONS (sold separately) Wiring Harness: • 70-1761 Toyota Antenna Adapter: • Not required KIT FEATURES • DIN radio provision • Pocket provision REV.
PAGE 2
99-8101 Table of Contents Dash Disassembly – Toyota 4-Runner 1984-1988....................................................................... 3 – Toyota Pickup 1984-1988........................................................................... 9 – Toyota 4-Runner 1989-1995....................................................................... 3 – Toyota Pickup 1989-1991........................................................................... 9 – Toyota 4-Runner 1996-2002.............................
PAGE 3
Dash Disassembly 99-8101 Toyota 4-Runner 1984-1988 Toyota 4-Runner 1989-1995 1. Remove the ashtray and (3) screws from the ashtray bracket. (Figure A) 1. Remove the driver’s side speaker panel by removing (3) screws and (1) 10 mm bolt. (Figure A) 2. Remove (1) screw from each side of the dash console and unsnap the trim bezel. (Figure A) 2. Remove (1) screw from the left side of the housing and unsnap the ignition cover. 3.
PAGE 4
Dash Disassembly 99-8101 Toyota 4-Runner 1996-2002 Toyota Camry 1987-1991 1. Open the center armrest door. Unsnap the parking brake trim panel to access the gear shifter trim panel. 1. Remove (2) screws above the climate controls and gently unsnap the dash trim bezel. (Figure A) 2. Remove (4) screws securing the factory radio and disconnect the wiring. 2. Unsnap the gear shifter trim panel and remove. Remove the climate control knobs. 3.
PAGE 5
Dash Disassembly 99-8101 Toyota Celica 1990-1993 Toyota Celica (GT/GTS) 1986-1989 1. Remove (2) screws from the lower steering column panel and remove. 1. Carefully pry up on the gear shifter trim panel and remove. 2. Remove the (2) screws exposed on the radio trim bezel. 2. Remove (2) screws exposed on the bottom edge of the radio trim panel. 3. Open the glove box and remove (1) screw and (1) bolt exposed. 4. Remove (2) screws from the ashtray cavity and (2) screws from the bracket. 5.
PAGE 6
Dash Disassembly 99-8101 Toyota Corolla (GTS/SR5) 1984-1987 Toyota Corolla (sedan/wagon, lower dash) 1988-1992 1. Remove (2) Phillips screws from each side of the console trim bezel. (Figure A) 1. Remove (1) screw located to the right of the ignition switch. 2. Remove (1) screw located above the driver’s side speaker. 2. Remove (4) screws securing the factory radio and disconnect the wiring. 4.
PAGE 7
Dash Disassembly 99-8101 Toyota Corolla (sedan/wagon, upper dash) 1988-1992 Toyota Corolla (coupe, lower dash) 1993-1997 1. Remove (4) screws from the top edge of the instrument trim bezel and (2) screws below the radio opening. 1. Remove the climate control knobs, unsnap the upper trim bezel and disconnect the hazard and clock leads. 2. Remove (1) screw from the lowerleft tab of the bezel (to the right of the a/c vent) and unsnap the bezel. (Figure A) 2.
PAGE 8
Dash Disassembly 99-8101 Toyota MR2 1991-1995 Toyota Corolla (coupe, upper dash) 1993-1997 1. Remove the climate control knobs and unsnap the dash trim bezel. (Figure A) 1. Remove the ashtray and (2) screws from the ashtray cavity. 2. Unsnap and remove the shifter console bezel. 2. Disconnect the clock and hazard leads. 3. Cut and remove all mounting tabs on bracket set #2 EXCEPT tabs “B” (mounting tabs can be identified by a stamped letter on the back of each tab). (Figure B) 3.
PAGE 9
Dash Disassembly 99-8101 Toyota Pickup 1984-1988 Toyota Pickup 1989-1991 1. Remove the ashtray and (3) screws from the ashtray bracket. (Figure A) 1. Remove the driver’s side speaker panel by removing (3) screws and (1) 10 mm bolt. 2. Remove (1) screw from each side of the dash console and unsnap the trim bezel. (Figure A) 2. Remove (1) screw from the left side of the housing and unsnap the ignition cover. 3.
PAGE 10
Dash Disassembly 99-8101 Toyota Pickup 1992-1995 Toyota Supra 1986.5-1992 1. Remove the driver’s side speaker panel by removing (3) screws and (1) 10 mm bolt. 1. Remove the ashtray and (2) screws from the ashtray cavity. 2. Remove (1) screw from the left side of the housing and unsnap the ignition cover. 2. Remove (1) screw located to the right of the steering column and (1) screw located to the left of the gear shifter. (Figure A) 3.
PAGE 11
Dash Disassembly 99-8101 Toyota T-100 1993-1998 Toyota Tacoma 1995-2004 1. Pull the cupholder out and unsnap the trim bezel from the dash. (Figure A) 1. Remove the climate control knobs. 2. Unsnap the climate control trim panel and remove (2) screws exposed. (Figure A) 2. Remove (4) screws securing the factory radio and disconnect the wiring. 3. Cut and remove all mounting tabs on bracket set #1 EXCEPT tabs “B” (mounting tabs can be identified by a stamped letter on the back of each tab).
PAGE 12
Kit Assembly 99-8101 Pocket retention provision Upper dash (Corolla applications) mounting provision 1. Cut a diagonal score line on each side of the radio housing and then break away the bottom portion of the housing and discard. (Figure A) 1. Cut a diagonal score line on each side of the radio housing and then break away the bottom portion of the housing and discard. (Figure A) 2. Mount the brackets to the converted radio housing with (4) #6 Phillips screws. (Figure B) 2.
PAGE 13
Kit Assembly 99-8101 DIN radio provision All (other) vehicle mounting provision 1. Slide the DIN cage into the radio housing and secure by bending the metal locking tabs down. 1. Mount the brackets to the radio housing with (6) #6 Phillips screws. (Figure A) Continue to DIN radio provision 2. Slide the aftermarket radio into the cage until secure. (Figure A) Note: If an equalizer will be included, slide the equalizer into the back of the radio housing and secure.
PAGE 14
99-8101 Notes 14
PAGE 15
99-8101 Notes 15
PAGE 16
Installation instructions for 99-8101 KNOWLEDGE IS POWER REV. 1/12/2015 INST99-8101 Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians METRA. The World’s best kits.™ 1-800-221-0932 metraonline.
