Installation Sheet

INSTALLATION INSTRUCTIONS
Item#N7109-258B (Rev. 04/28/2015)
READ AND SAVE THESE INSTRUCTIONS
W A R N I N G ! S H U T P O W E R O F F AT F U S E O R C I R C U I T B R E A K E R .
AVERTISSEMENT! COUPER LE COURANT AU NIVEAU DES FUSIBLES OU DU DISJONCTEUR.
Fig. 2
Fig. 3
LA
-
2
449
E
Notice: It is important to use proper chain pliers
(not included)
To OPEN and CLOSE the chain included with this fixture. Do
not open them with other tools that may twist or st
ress the
chain links. It is important to use
proper chain pliers like the
ones shown in the diagram.

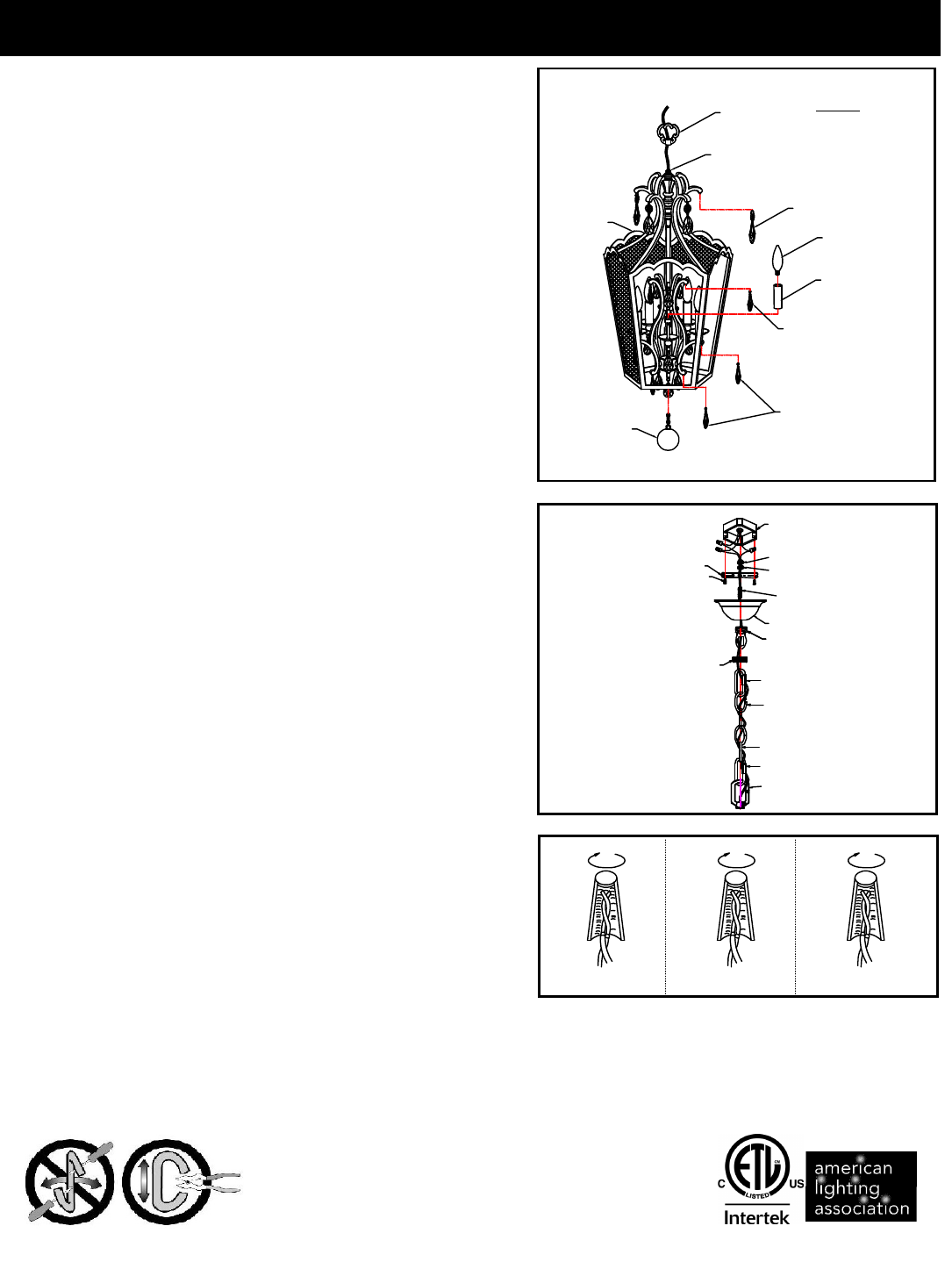

ASSEMBLING THE FIXTURE (Fig. 1)
1. Shut off the power at the fuse box or circuit breaker. If necessary,
remove the old fixture including the mounting hardware.
2. Carefully remove the new fixture from the carton and check that
all parts are included as shown in the illustration.
3. Thread the fixture loop (A) onto nipple (B) on the fixture body (H).
MOUNTING THE FIXTURE (Fig. 2)
4. Secure the nipple into the ceiling loop until snug.
5. Secure the other end of the nipple with the ceiling loop attached
to the crossbar until snug.
6. Place the lock washer and hex nut over the end of the nipple
protruding through the crossbar. Then thread the hex nut until
tight.
7. Take the crossbar assembly and mount it to the ceiling outlet box
with the mounting screws (Size: #8-32N*L0.5”). The side of the
crossbar marked “GND” must face out
8. Attach the quick link to the fixture loop. Quick link must be
completely closed when installed.
9. By measuring, determine the correct number of links needed for
the desired hanging height. Use a pair of chain pliers to open one
end link of the chain and discard the excess chain.
10. Slip the lock collar and canopy over the chain. Attach a quick link
to the other end link of the chain. Then raise the fixture and attach
the quick link to the ceiling loop. Close the quick link.
11. Carefully lace the fixture wires through the chain links and pull
until tight. Then feed the wires through the lock collar, canopy,
ceiling loop and the nipple and pull until tight.
CONNECTING THE WIRE (Fig. 3)
12. At this point, connect the electrical wire as shown in figure 3,
making sure that all wire connectors are secured. If your outlet
has a ground wire (green or bare copper), connect the fixture’s
ground wire to it. Otherwise, connect the fixture’s ground wire
directly to the crossbar using the Green Screw provided.
13. Tuck these wire connections neatly into the ceiling outlet box, and
raise the canopy all the way to the ceiling. Raise the lock collar
and thread onto the ceiling loop protruding through the canopy.
FINISHING THE INSTALLATION (Fig.1)
14. Hang the crystal drops (D) (M) to proper position of fixture body
(H).
15. Attach crystal ball (I) with link on bottom of fixture body (H).
16. Place the tube (F) over the socket of the fixture body (H).
17. Install the light bulb(s) (E) (not included) in accordance with the
fixture’s specifications. (DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!). (NE PAS DEPASSER LA PUISSANCE
NOMINALE MAXIMALE!)
Your installation is now complete. Return power to the outlet box and
test the fixture.
Note: Illustration (Fig. 1) on this manual is for installation
purposes only. It may or may not be identical to the fixture
purchased.
Fig.1
Set
#
A
-
0
12
-Crossbar
-Ground Screw
-Mounting Screw*2
Outlet Box (Ceiling)
Chain (End link)
Cross Bar
Mounting
Screws
Lo
c
k
Collar
Canopy
Nipple
Ceiling loop Ceiling loop
Quick Link
Fixture Loop
Quick Link
Chain (End link)
Lock Washer
Hex Nut
Chain#HCH5144-258B
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green
(Ground)
“
©
2015 Minka Lighting, Inc.
This product is protected by United States Federal
and/or State Law, including Patent and/or Copyright
laws.”
H
A
B
D
E
F
M
M
I
