Chapter 6: The “Weighing” application
41
6.2.3 “SmartTrac” and stopwatch

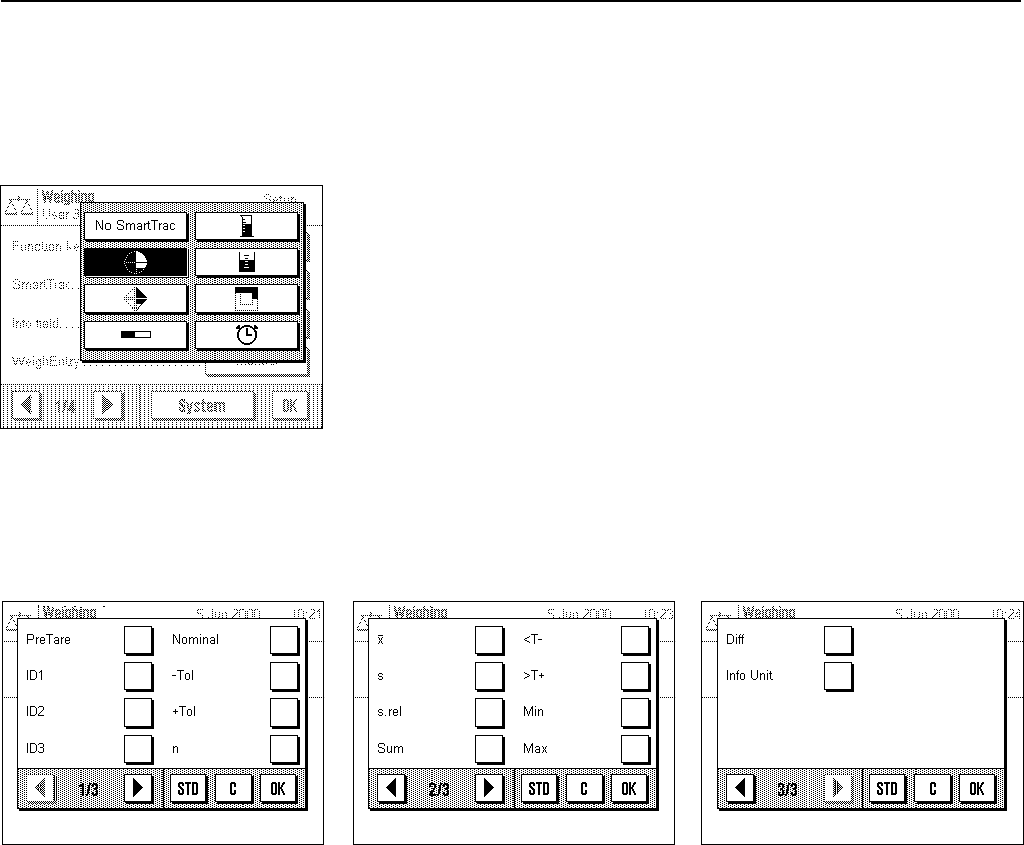

“SmartTrac” is a graphical weighing-in aid which makes it easier for you to weigh in to a specified target value. “SmartTrac” appears
in the application at the right-hand side of the display below the weighing result (Section 4.2).
In this menu you can select the display mode for “SmartTrac” or switch it off. Instead
of “SmartTrac”, you can also display a stopwatch.
Note: You can also call up this menu directly from the application by touching the
corresponding zone of the display (Section 4.2).
Factory setting: “SmartTrac” 1 switched on
You will find information about the various “SmartTracs” and the stopwatch in Section
6.3.4.
6.2.4 Selecting information fields
The information fields keep you constantly informed about the setting values, results obtained, etc. The information fields are
displayed in the application below the weighing result (Section 4.2).
In this menu you specify which information fields should be displayed in the application. You can call up the menu for the information
fields directly from the application by touching the corresponding zone of the display (Section 4.2).
The numbered information fields are displayed in the application. The numbers determine the sequence of the information fields in
the display. Important: For reasons of space, only a maximum of 4 of the available information fields can be displayed. If you activate
more than 4 information fields, only the first 4 are shown in the display. When you touch an information field to activate or deactivate
it, the fields are automatically resequenced. To specify a completely new sequence, first deactivate all the information fields and then
activate them in the desired sequence. You can use “STD” to reset to the factory settings, or touch “C” to quit the input window without
saving the changes. If you wish to save your changes, touch “OK”.
The following information fields are available:
“PreTare”: This information field shows the value that was input for the tare preset using the
function key with the same name.
“ID1”, “ID2” and “ID3”: These information fields show the identifications that were input using the function
keys with the same name. Note: Instead of “ID1”, “ID2”, and “ID3”, the specified
designations are displayed (Section 6.2.10).
“Target”: This information field displays the target weight that was input using the function key
with the same name.
