Operating instructions

58D6002 17
Left
Bottom
Log #2
Back Log
#1
Top Left
Log #4


(See Figure 14)
1. Install back log (#1) on rear log support bracket.
2. Install left bottom log (#2) on left log support bracket in
front of back log.
3. Install right bottom log (#3) on right log support bracket
in front of back log.
4. Install top left log (#4) on top of left bottom log.
5. Install top right log (#5) on top of right bottom log.

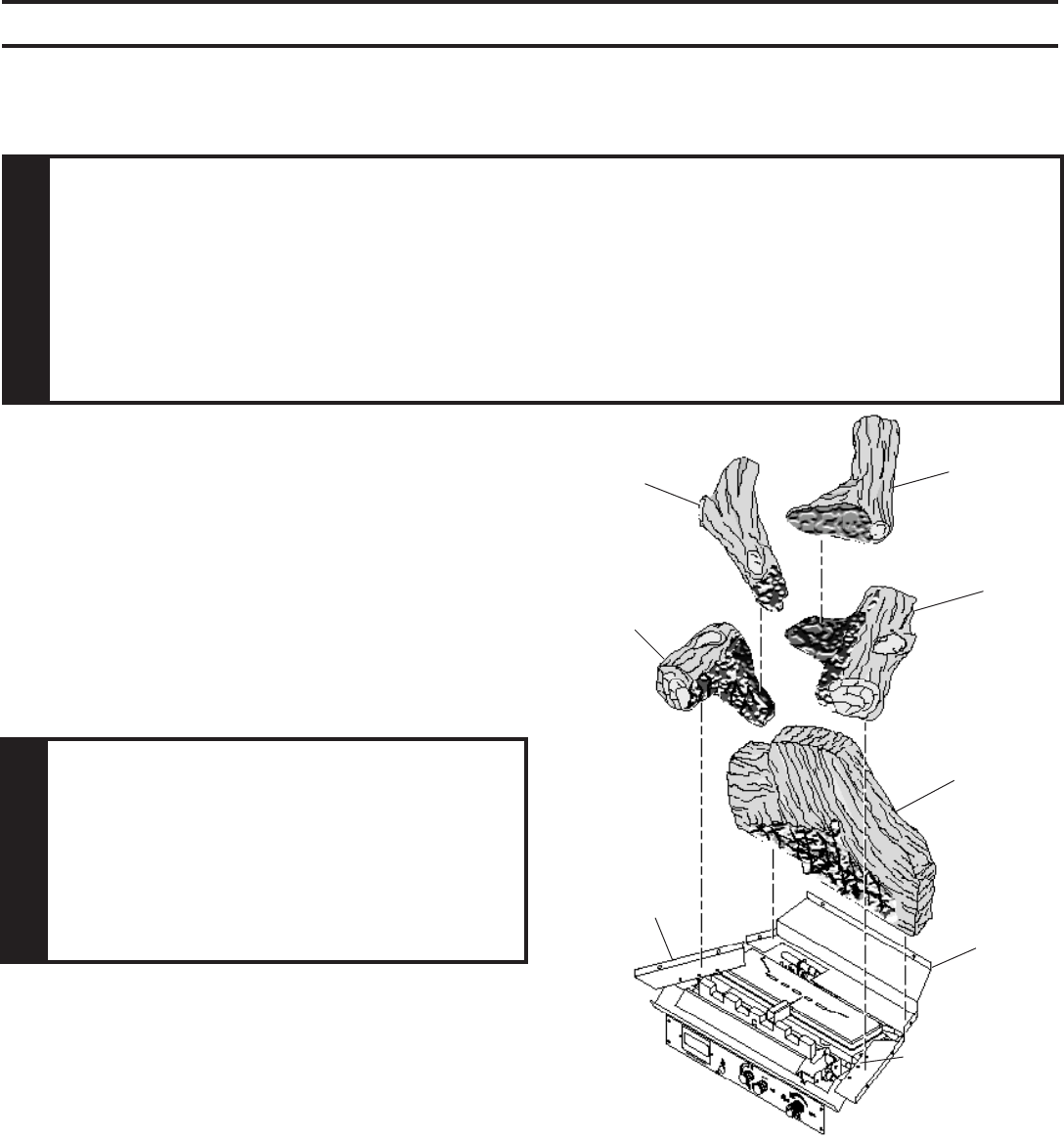

Figure 14 - Installing Logs to Grate (VF30)
— This unit is supplied with four ceramic fiber logs. Do not handle these logs with your bare
hands.  After handling the logs, wash your
hands gently with soap and water to remove any traces of fibers.
Right
Bottom
Log #3
Right
Top Log
#5
Rear Log
Support
Bracket
Left Log
Support
Bracket
Right Log
Support
Bracket





             
           


     
     
     



