Welcome!
Thank you for choosing the thermoIMAGER TIM Connect software!
The thermoIMAGER TIM calculates the surface temperature based on the emitted infrared energy of objects
[► Basics of Infrared Thermometry]. The two-dimensional detector (FPA - focal plain array) allows a
measurement of 160 x 120 or 382 x 288 pixels and will be shown as thermographic image using standardized
palettes. The radiometric processing of the picture data enables the user to do a comfortable detailed analysis
using the software
TIM Connect.
Main features of TIM Connect software:

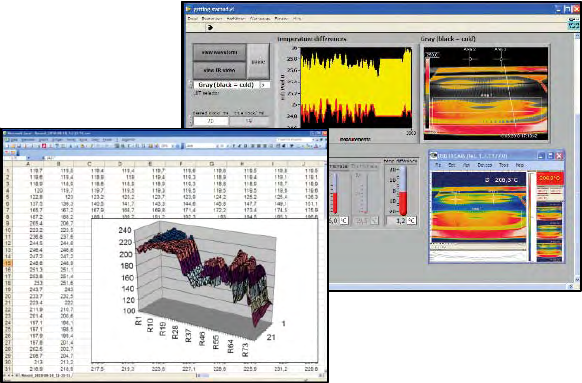

Display of the real time thermal image (120 Hz) with a wide
range of measurement functions
Recording function (video, radiometric video, snapshot)
Analysis and post processing of
infrared images/ videos
Complete set up of parameters and
remote control of the camera
