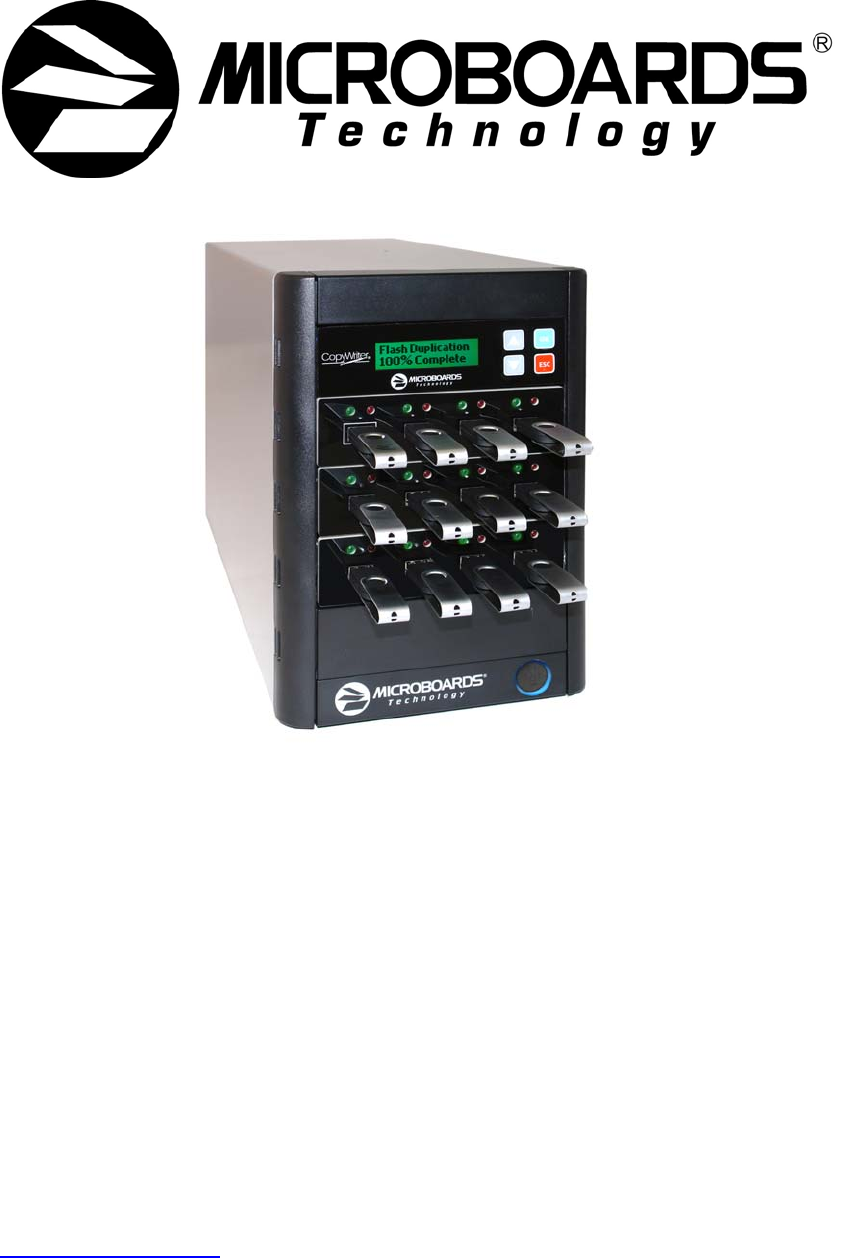

Copywriter Flash Duplicator Series User’s Manual www.microboards.com Version 1.
Table of Contents Introduction......................................................................................................................... 5 What’s Included .............................................................................................................. 5 Installation........................................................................................................................... 5 Loading and Unloading Flash Cards..........................................................
Introduction The Copywriter Flash Duplicator allows you to make fast copies of USB flash cards. This series is available in 3, 7, or 11 copy configuration.
Hardware Description Controller Interface and Display Recorder Ports (all ports below the first row are also recorder ports) Reader Port Copywriter USB 11 Flash Duplicator Power Switch The Copywriter Flash Duplicator consists of a reader port, 3, 7, or 11 flash drive ports and Controller module. The master card will always be inserted into the TOP LEFT port, which is outlined. The blank cards will always be inserted into the remaining ports.
Main Menu Flowchart OK 1. Copy Copy 3669M 10% 0:53 367M TOTAL: 11/0 Pass: 11 Fail: 0 SYNCHRONOUS: Load Next Blank Cards, Press OK ESC ▼ OK 2. Compare Compare 3669M 10% 0:53 367M TOTAL: 11/0 Pass: 11 Fail: 0 SYNCHRONOUS: Load Next Blank Cards, Press OK ESC ▼ OK 3. Copy & Compare Copy 3669M 10% 0:53 367M Copy 3669M 10% 0:53 367M TOTAL: 11/0 Pass: 11 Fail: 0 ESC ▼ 4. Information SYNCHRONOUS: Load Next Blank Cards, Press OK OK ▼ 1.
Main Menu There are 6 different Main Menu items for the Copywriter Flash Duplicator: Copy, Compare, Copy & Compare, Information, Utility, and Setup. For the Setup options, please refer to page 9. These instructions refer to using 11 USB recorder ports (available only in the USB 11 Flash Duplicator), but the instructions will not differ when using any of the Copywriter Flash Duplicators. Any Copywriter Flash Duplicator model will operate using any number of the available recorder ports.
Synchronous Duplication If the entire source content cannot be stored in the memory buffer, Synchronous duplication will be required. Place your master card into the reader port and your blank cards into the recorder ports. Copy 10% 0:53 3669M 367M Press the OK button on the controller interface. If all recorder ports are filled, duplication will begin. If not, the display will show how many target cards are in place; press OK again to begin duplication to the loaded target cards.
Utility The Utility function is available for erasing inserted cards and updating the Duplicator firmware. Measure Speed The Measure Speed function can be turned on to measure the exact speed of the flash read and write. Media Check This function checks the media quality, and can be set to 3 different levels: Normal 100%, Strict 100%, and Setup Range. Regardless of the setting, if the check detects a read or write error, the LED for that flash card will show red.
Setup Menu The Setup function gives you access to some of the default settings used by the Copywriter Flash Duplicator. Startup Menu The Startup Menu selection allows you to select the main menu item that appears when the Copywriter Flash Duplicator starts up. The default setting is 1. Copy. Main Menu items 1 through 6 can be selected. Copy Area Only Data Area With the Copy Area setting selected as Only Data Area, the system will automatically analyze the source flash card’s file format.
Troubleshooting and Frequently Asked Questions Is there any limitation for copy file format? You can use "Only Data Area" to copy FAT16/32, NTFS, Linux (ext3) format, it will only copy the data, and therefore the copy speed will be quicker. If you want to copy other formats, it can use "Whole Area" to copy whole Flash; the format of the flash will not be a considered.
Specifications Model Recorder Ports Card Format Dimensions, inches (H x W x D) Weight CFD-USB-03 CFD-USB-07 CFD-USB-11 3 7 11 USB USB USB 7 x 7.5 x 11 7 x 7.5 x 11 11 x 7.5 x 17 10 lbs 11 lbs 17 lbs Contact Information For technical questions or support issues, please contact Microboards Technology technical support at: United States PH: 952-556-1639 FAX: 952-556-1628 support@microboards.com www.microboards.com Europe PH: +44 (0) 845 230 7800 www.microboards.co.uk Japan PH: 03-3561-2266 www.
