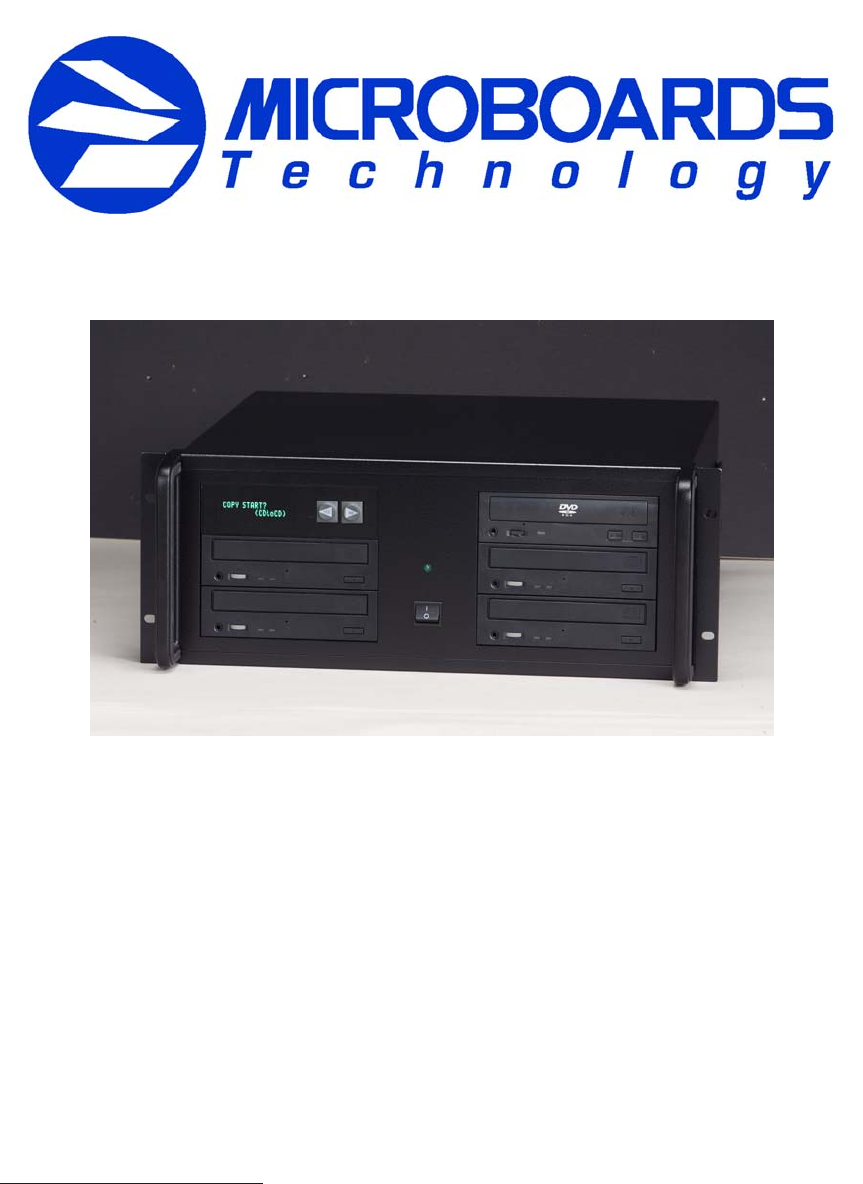

CopyWriter Pro-452RM Users Manual www.microboards.com Version 2.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC TABLE OF CONTENTS System Overview ................................................................................................................ 3 Unpacking your system....................................................................................................... 4 Installation Requirements ................................................................................................... 4 Menu Overview ...............................
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC System Overview The CopyWriter Pro Series is an easy to use standalone CD recordable duplication system with advanced features. High-speed duplication at 52x speed is attained with 4 recorders. The powerful interface still allows for one-touch operation for the novice user along with control of the advanced features for the professional.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Unpacking your system When unpacking your duplicator, confirm the following items are included: • • • • • CopyWriter Pro Series duplicator Power cable Quick Start Guide Microboards Documentation CD Blank CD-R media If any of these items are missing, please contact your distributor or Microboards Technology Technical Support at 952-556-1639. IMPORTANT: Please keep all the packing for your CopyWriter Pro duplicator.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Power supply Use house current as the power source for the unit. Do not use an outlet near a motor driven appliance (i.e. air conditioner, copying machine). Use an outlet with stable power supply voltages. Do not overload an outlet. Do not use a service outlet from a PCs or other office machine. Wire the power cord properly. Do not touch the power cord with a wet hand. Be careful not to damage the power cord. Inspect the power cord periodically.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Menu Overview YES COPY START? (DISCtoDISC) NO COPY CD+G START? (DISCtoDISC) YES INSERT MASTER DISC INSERT TARGET DISC ANALYZING MASTER COPY CD-DA 15:26 20% INSERT MASTER DISC INSERT TARGET DISC ANALYZING MASTER COPY CD+G 15:26 20% >HDD1? 15:26 (HDDtoDISC) COPY START? (HDD1toDISC) INSERT TARGET DISC COPY CD-DA 15:26 20% REGIST CD-DA COPY START? (HDD2toDISC) INSERT TARGET DISC COPY CD-DA 15:26 20% COPY START? (HDD9toDISC) IN
Setup Menu information: SETUP? (MODE CHANGE) YES >MODE SELECT? (COPY MODE) YES >>COPY? (DISCtoDISC) NO YES >>VERIFY? (DISCtoDISC) NO >>COPY+V? (DISCtoDISC) NO NO >>EXIT? >WRITE SPEED? (FAST) YES NO >>FAST? NO >>MEDIUM? YES NO >>SLOW? NO NO NO >>EXIT? >COPY QUANTITY? YES >COPY QUANTITY? 00000 YES COPY START? (DISCtoDISC) NO >SESSION MODE? (AUTO) YES >>AUTO? NO >>CLOSE? YES NO >>OPEN? NO NO NO >>EXIT? >DRIVE INQUIRY? YES NO HDD (IDE MST) QUANTUM HDD (IDE MST) FIRE BALL HDD 1.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Copy CD to CD IMPORTANT NOTE: When copying CD to CD at 52x speed, it is very important to use a clean, unmarked master. If there are scratches, fingerprints, dust, etc., on the master, it will slow down the recording speed. 1. Place the Master Disc into the Reader drive 2. Place the blank CD-R(/W) disc(s) into the Recorder drive(s) 3. The display reads COPY START? (Disc to Disc) Copy Start? (Disc to Disc) 4. Press Yes 5.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Registering Data to the Hard Drive (HDD) 1. At the COPY START? (Disc to Disc) menu, press the NO key until the display shows MASTER SELECT? (DISC TO DISC) MASTER SELECT? (Disc to Disc) 2. Place the Master CD into the Reader drive. 3. Press the Yes key 4. The display will show: >READER? (DISC TO DISC) 5. Press the No key 6. The display will now show: >HDD1? (DISC TO HDD) 7. If you wish to copy the data to the 1st partition, press the Yes key. 8.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Erasing CD-RW media 1. At the COPY START? (Disc to Disc) menu, press the NO key until the display shows DISC ERASE? (REWRITABLE): DISC ERASE? (REWRITABLE) 2. Load the Recorder(s) with the CD-RW media you wish to erase. You can erase one disc at a time or fill all the Recorders to erase multiple discs at once. 3. Press the Yes key 4. The next screen asks if you want to perform a Quick Erase.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Copy Hard Drive (HDD) to CD 1. Follow the instructions on page 9 to register the Master CD to the HDD. 2. Press to NO key until the screen displays Master Select? 3. Press the YES key. 4. The display will show READER. 5. Press the NO key and the display will show HDD1. If this is the hard drive partition you wish to copy, press the YES key. 6. The screen will display COPY START? (HDD1 to DISC) COPY START? (HDD1 to DISC) 7.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Clearing the Hard Drive (HDD) The Master Clear option will not appear if there is no information stored on any of the hard drive partitions. 1. At the COPY START? (HDD1 to DISC) menu, press the NO key until the display shows MASTER SELECT? (HDD1 to DISC). MASTER SELECT? (HDD to DISC) 2. Press the Yes button. 3. The display will show: >READER? (DISC TO DISC) 4.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Track Extraction When extracting tracks to the internal hard drive, the CopyWriter Pro always uses the first hard drive partition (HDD1). If there is information already stored on HDD1, the system will ask if you want to overwrite this information. This partition cannot be changed from HDD1. 1. Start up TRACK EXTRACTION mode. Press “YES” in the following screen. Trk EXTRACTION? * TRACK EXTRACTION mode is not appeared unless HDD is connected. 2.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC 6. If you press “YES” in 1-5, CopyWriter PRO asks you to register the extracted tracks in HDD. COPY TO HDD OK? Press “YES” to start registration. 7. After registration completes, CopyWriter PRO asks you if you want to extract more tracks from other master audio discs. NEXT MASTER Press “YES” to extract more tracks from other master audio discs. Press “NO” to complete extraction. 8.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Setup Menu 1. At the COPY START? (Disc to Disc) menu, press the NO key until the display shows SETUP? (MODE CHANGE) SETUP? (MODE CHANGE) 2. Press the Yes button 3. The first setup option is Mode Select, followed by Write Speed, Session Mode, Drive Inquiry, Firmware Version and Exit. 4. Pressing the No key will allow you to move from menu to menu. 5. Pressing the Yes button will allow you to view or change the configuration of the system. 6.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Error Messages If any failure occurs during operations, an error message on LCD and a beep indicate as it is the error. It beeps every two seconds which keep beeping until it stops. Opening a tray of drive having the error stops beeping.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Error Codes Read ASC 00 00 00 00 00 00 00 00 01 02 04 04 04 04 04 05 06 08 08 08 08 09 09 09 09 0A 0B 0B 0B 10 11 11 11 11 11 11 12 13 14 14 14 15 15 15 17 17 17 17 17 ASCQ 00 06 11 12 13 14 15 17 00 00 00 01 02 03 07 00 00 00 01 02 03 00 01 02 03 00 00 01 02 00 01 02 05 06 0F 10 00 00 01 05 06 00 01 02 00 01 02 03 04 Description NO ADDITIONAL SENSE INFORMATION I/O PROCESS TERMINATED, PLAY OPERATION ABORTED AUDIO PLAY OPERATION IN PROGRESS AUD
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC 17 05 RECOVERED DATA USING PREVIOUS SECTOR ID 18 00 RECOVERED DATA WITH ERROR CORRECTION APPLIED 18 01 RECOVERED DATA WITH ERROR CORP.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC 3E 00 LOGICAL UNIT HAS NOT SELF-CONFIGURED YET 3E 01 LOGOCAL UNIT FAILURE 3E 02 TIMEOUT ON LOGICAL UNIT 3F 00 TARGET OPERATING CONDITIONS HAVE CHANGED 3F 01 MICROCODE HAS BEEN CHANGED 3F 02 CHANGED OPERATING DEFINITION 3F 03 INQUIRY DATA HAS CHANGED 40 NN DIAGNOSTIC FAILURE ON COMPONENT NN (80H-FFH) 43 00 MESSAGE ERROR 44 00 INTERNAL TARGET FAILURE 45 00 SELECT OR RESELECT FAILURE 46 00 UNSUCCESSFUL SOFT RESET 47 00 SCSI PARITY ERROR 48 00 INITIAT
Write ASC 00 00 00 00 00 00 00 02 04 04 04 04 04 04 04 05 06 08 08 08 08 09 09 09 09 0A 0B 0B 0B 0C 0C 0C 0C 0C 0C 0C 11 11 15 15 15 16 16 16 16 16 17 17 17 17 17 17 ASCQ 00 06 11 12 13 14 15 00 00 01 02 03 04 07 08 00 00 00 01 02 03 00 01 02 03 00 00 01 02 00 02 03 07 08 09 0A 00 06 00 01 02 00 01 02 03 04 00 01 02 03 04 05 Description NO ADDITIONAL SENSE INFORMATION I/O PROCESS TERMINATED, PLAY OPERATION ABORTED AUDIO PLAY OPERATION IN PROGRESS AUDIO PLAY OPERATION PAUSED AUDIO PLAY OPERATION SUCCESSFUL
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC 17 06 RECOVERED DATA WITHOUT ECC - DATA AUTO-REALLOCATED 17 07 RECOVERED DATA WITHOUT ECC - RECOMMEND REASSIGNMENT 17 08 RECOVERED DATA WITHOUT ECC - RECOMMEND REWRITE 17 09 RECOVERED DATA WITHOUT ECC - DATA REWRITTEN 18 00 RECOVERED DATA WITH ERROR CORRECTION APPLIED 18 01 RECOVERED DATA WITH ERROR CORR.
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC 28 00 NOT READY TO READY CHANGE, MEDIUM MAY HAVE CHANGED 29 00 POWER ON, RESET, OR BUS DEVICE RESET OCCURRED 2A 00 PARAMETERS CHANGED 2A 01 MODE PARAMETERS CHANGED 2C 00 COMMAND SEQUENCE ERROR 2C 03 CURRENT PROGRAM AREA IS NOT EMPTY 2C 04 CURRENT PROGRAM AREA IS EMPTY 2C 05 PERSISTENT PREVENT CONFLICT 2E 00 INSUFFICIENT TIME FOR OPERATION 2F 00 COMMANDS CLEARED BY ANOTHER INITIATOR 30 00 INCOMPATIBLE MEDIUM INSTALLED 30 01 CANNOT READ MEDIUM - UNK
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC 51 00 ERASE FAILURE 51 01 ERASE FAILURE - Incomplete erase operation detected 53 00 MEDIA LOAD OR EJECT FAILED 53 02 MEDIUM REMOVAL PREVENTED 55 00 SYSTEM RESOURCE FAILURE 57 00 UNABLE TO RECOVER TABLE-OF-CONTENTS 5A 00 OPERATOR REQUEST OR STATE CHANGE INPUT 5A 01 OPERATOR MEDIUM REMOVAL REQUEST 5A 02 OPERATOR SELECTED WRITE PROTECT 5A 03 OPERATOR SELECTED WRITE PERMIT 5B 00 LOG EXCEPTION 5B 01 THRESHOLD CONDITION MET 5B 02 LOG COUNTER AT MAXIMUM
COPYWRITER PRO SERIES DUPLICATOR MICROBOARDS TECHNOLOGY, LLC Specifications: CD Recorder Drive: Power Source: Weight: Dimensions: Power supply: Environment: 52x CD-RW speed selectable drive 115V/230V 50-60Hz switchable power supply 48 pounds 7.48” (W) x 17.91” (D) x 17.
