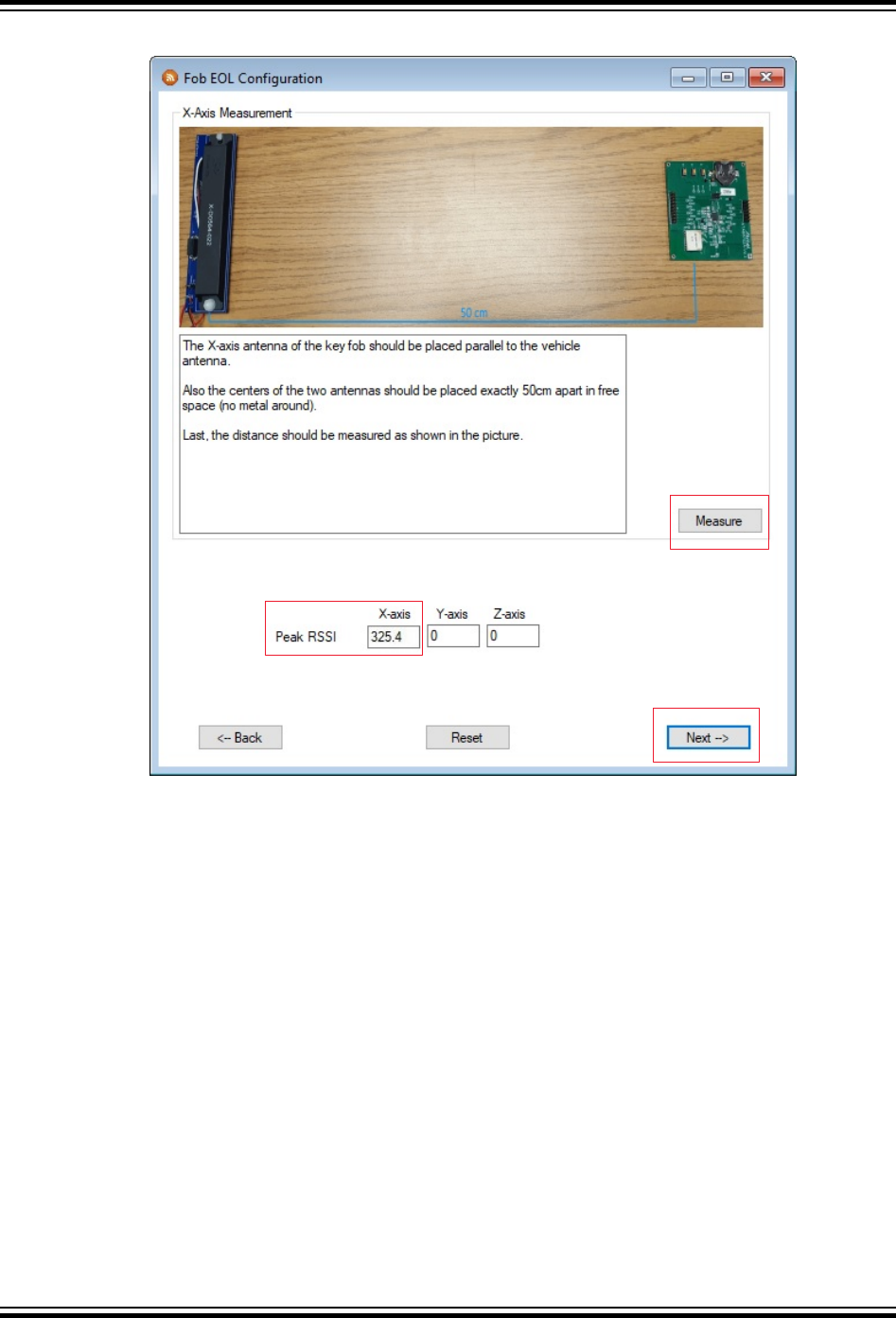

Figure 5-8. X-Axis Peak RSSI
7. Position the fob (as shown in the following figure) to align the Y-axis, then click the Measure button. This
measures the current Y-axis RSSI signal amplitude and updates the result to the “Peak RSSI” field for the Y-
axis. Click the Measure button several times to ensure the peak value is stable.
8. Click the Next button.
ATAN0219
System Operation
© 2020 Microchip Technology Inc.
User Guide
DS50003051A-page 23
