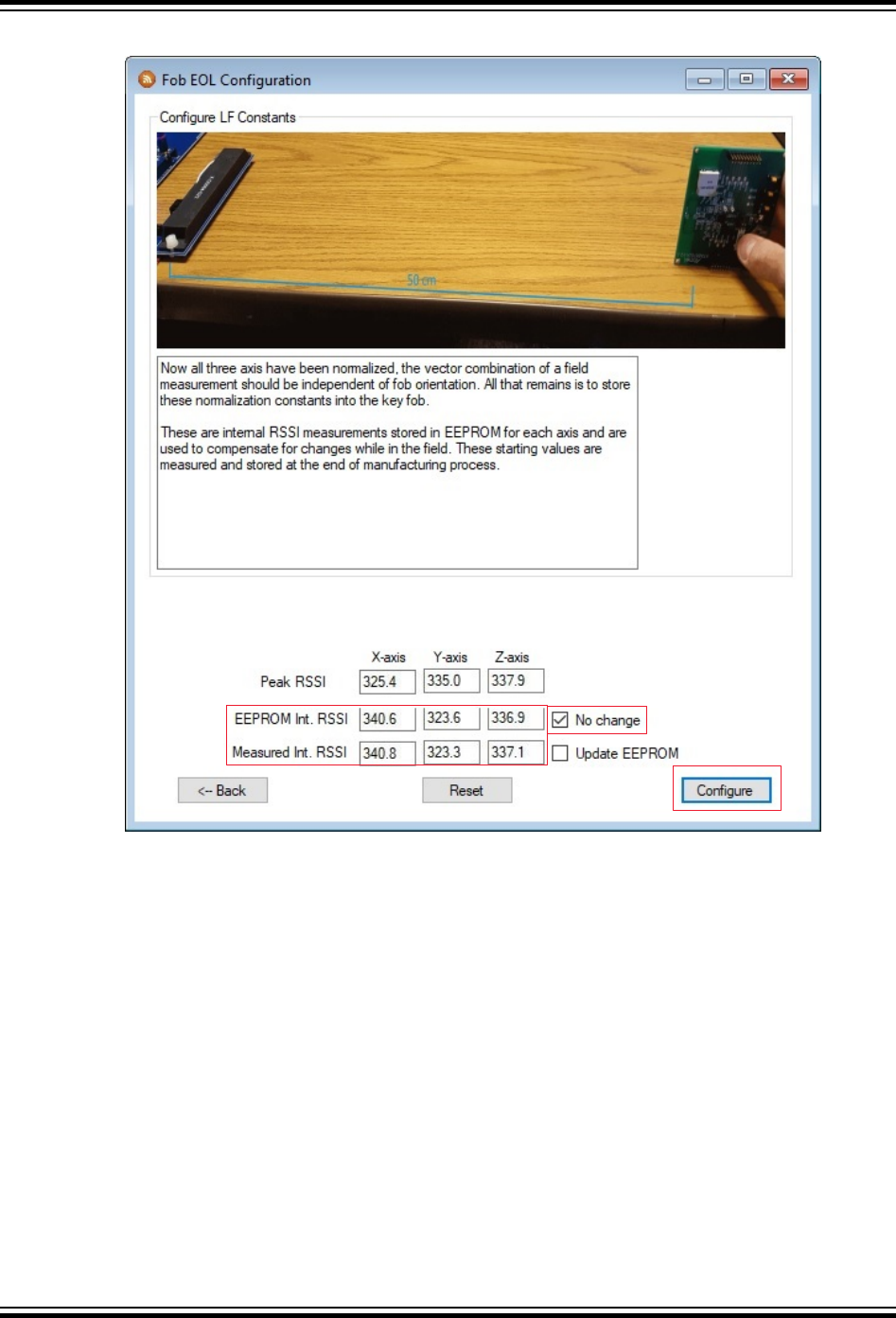

Figure 5-12. Slight Difference in Internal RSSI
Notes:
• If there is a significant difference between the "Measured Int. RSSI" and the "EEPROM Int. RSSI" fields,
select the “Update EEPROM” check box. This can occur when the fob's components age over time or if a
change in the circuit has occurred (for example, evaluating a different 3D coil).
• Selecting the “Update EEPROM” check box updates the RSSI values currently stored in the EEPROM
with the newly measured values.
