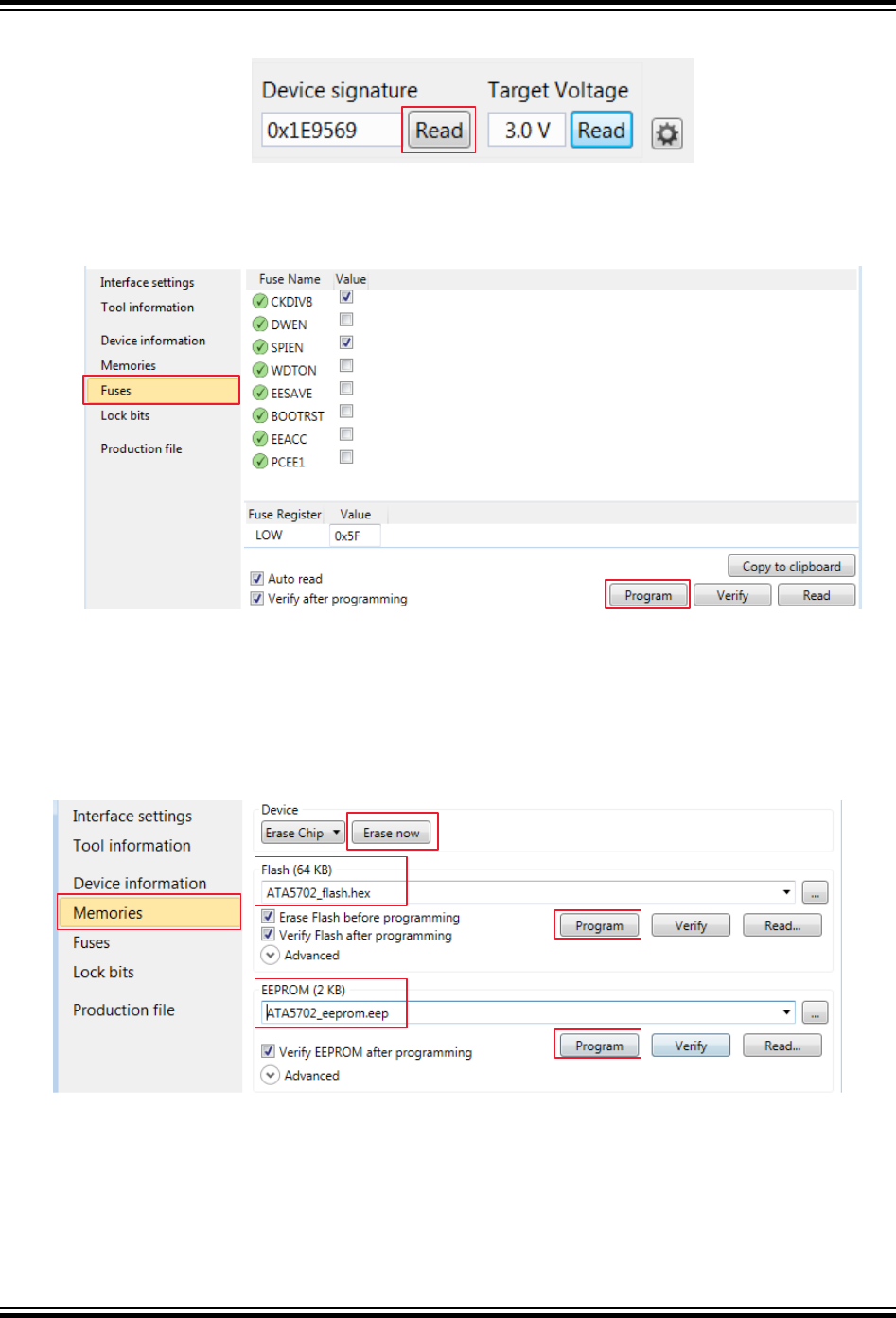

Figure 6-4. ATA5702 Signature Verification
5. Select the Fuses tab, then verify that the proper fuse settings exist. If not, change them to match the following
figure, then click the Program button.
Figure 6-5. ATA5702 Fuse Settings
6. Select the Memories tab, then click the Erase now button.
7. Browse to locate the ATA5702_flash.hex file for the flash memory image.
8. Click the Program button, then wait for completion.
9. Browse to locate the ATA5702_eeprom.eep file for the EEPROM memory image.
10. Click the Program button, then wait for completion.
Figure 6-6. ATA5702 Memory Settings
Note: If the EEPROM verification fails (as shown in the following figure), repeat steps 1-10 to ensure the
configuration is correct. If the error still occurs, then the ATA5702 IC version is outdated and the user must contact
their local sales representative for an upgrade.
