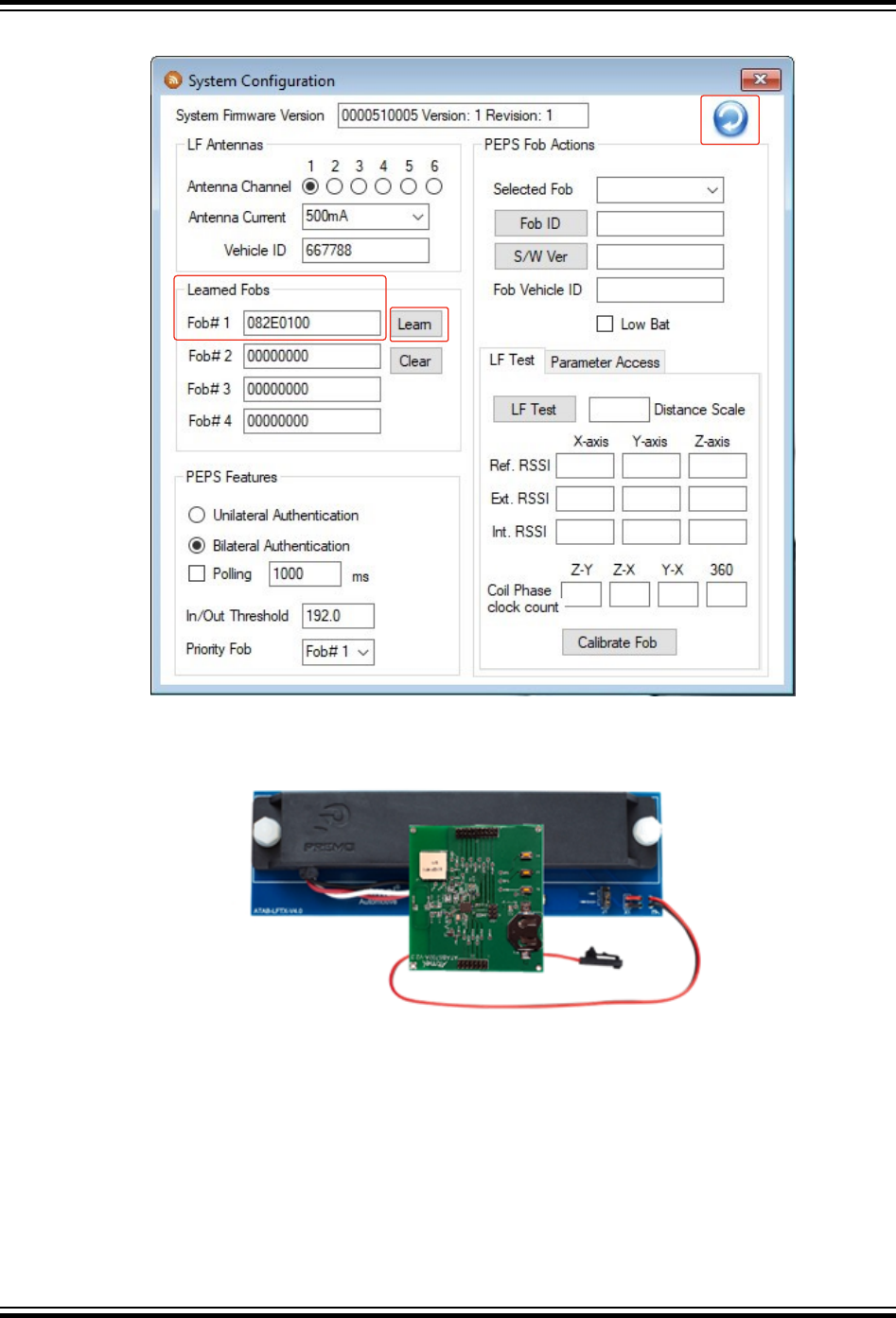

Figure 4-4. System Configuration Window
3. Place the ATAB5702A fob board in close proximity (<10 cm) to the LF antenna module, as shown in the
following figure.
Figure 4-5. Fob Placement
4. Click the Learn button in the System Configuration window.
5. The fob UID in the “Learned Fobs” section indicates the successful completion of the learn procedure.
6. If the learn procedure is unsuccessful, repeat step 4 a couple of times. If it still fails, try moving the ATAB5702A
fob board position slightly on the LF antenna module and repeat step 4.
